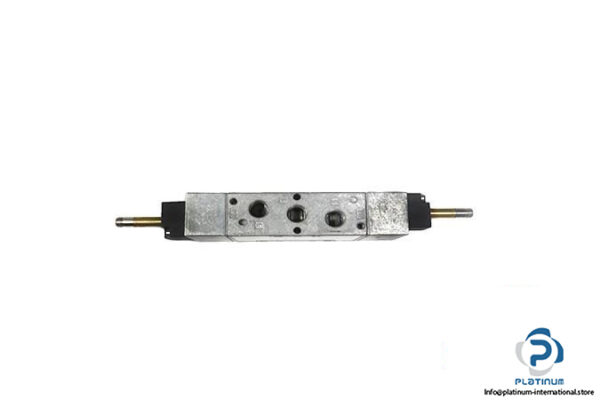

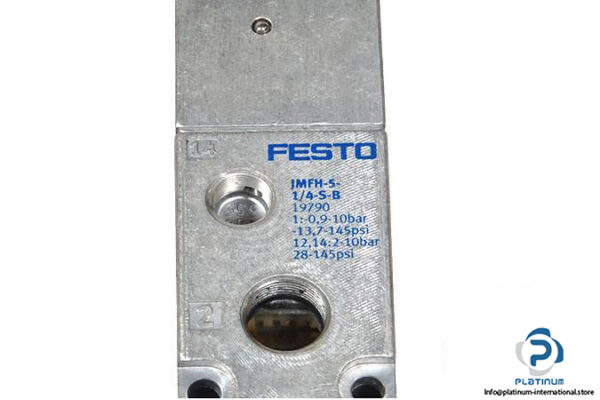

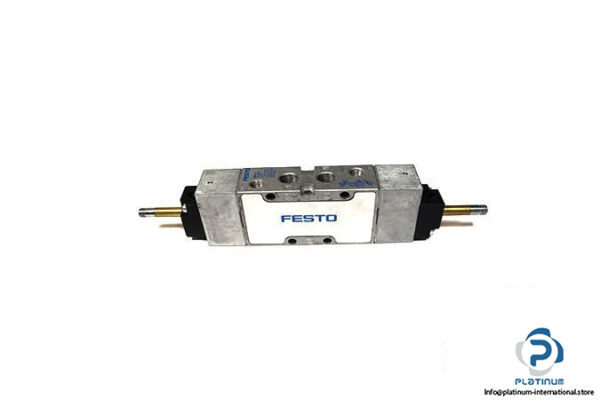

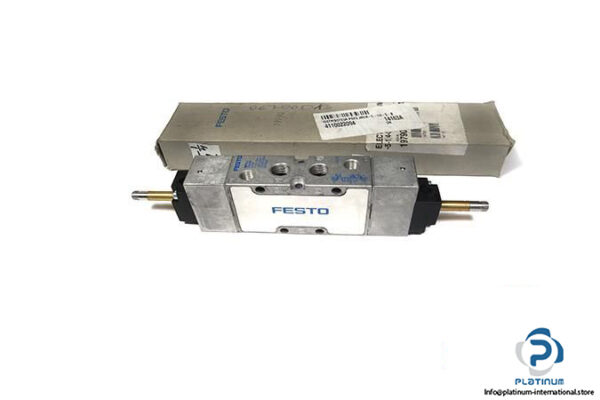

FESTO JMFH-5-1/4-S-B DOUBLE SOLENOID VALVE
The FESTO JMFH-5-1/4-S-B is a high-performance double solenoid valve engineered for precise control in pneumatic applications. Built with a robust die-cast aluminum body and 5/2 function, it ensures optimal air flow management in industrial systems.
Manufacturer: FESTO
Type: Double Solenoid Valve
Model: JMFH-5-1/4-S-B
Part No.: 19790
Technical Information
- Fluid: Air
- Design: Piston gate valve
- Function: 5/2 double solenoid
- Type of Actuation: Electrically
- Operating Pressure: -0.9 … 10 bar
- Pilot Pressure: 2 / 10 bar
- Nominal Flow Rate: 1600 l/min
- Pneumatic Connection: G1/4
- Material: Die-cast aluminum
- Ambient Temperature: -5 / 40 °C
