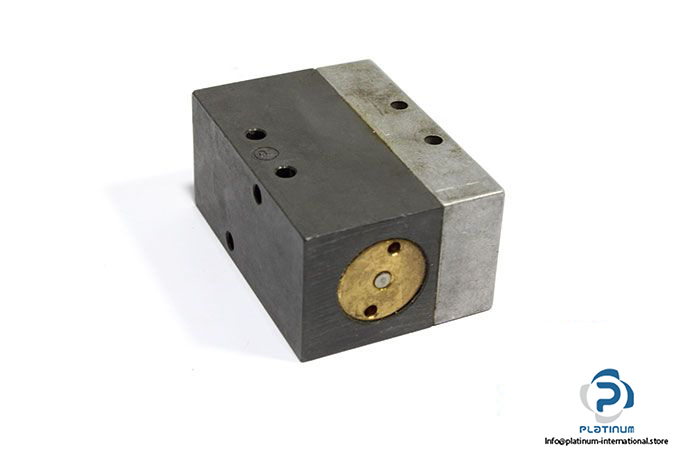

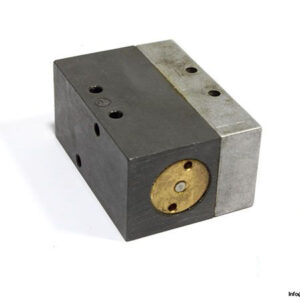

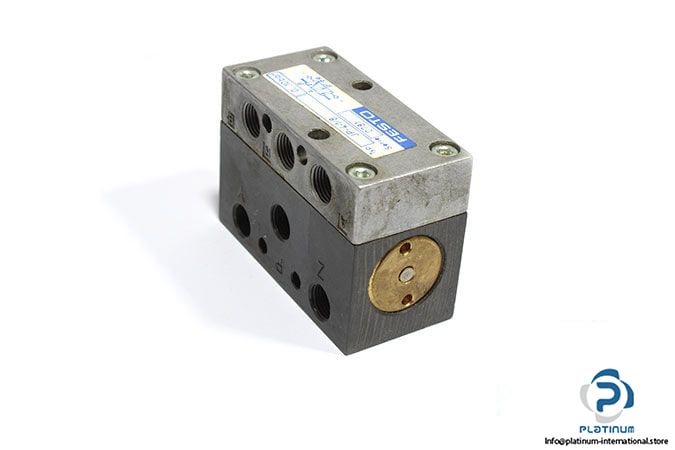

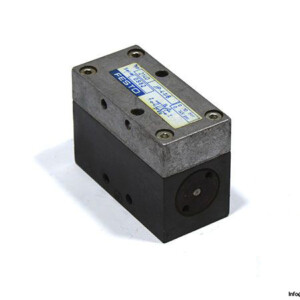

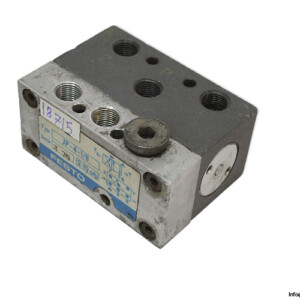

FESTO JP-4-1/8 DOUBLE PILOT VALVE
The Festo JP-4-1/8 is a precision-engineered double pilot valve built for reliable pneumatic actuation. With a compact flat slide design and a 4/2 way valve function, it provides consistent flow and pressure control across a wide operating range.
Manufacturer: FESTO
Type: Double Pilot Valve

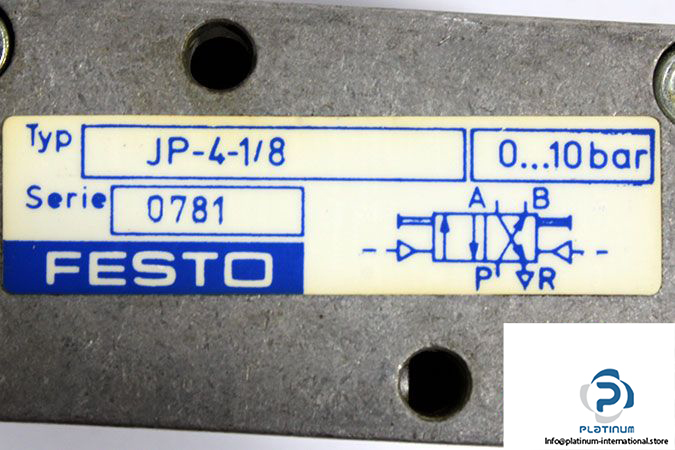

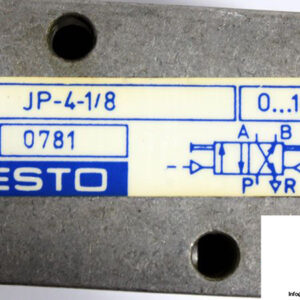

Model: JP-4-1/8
Part No.: 2140
Technical Information
- Fluid: Air
- Design: Flat slide valve
- Valve Function: 4/2 way
- Type of Actuation: Pneumatically
- Operating Pressure: 0 … 10 bar
- Nominal Flow Rate: 330 l/min
- Pneumatic Connection: G1/8
- Material: Hard anodized Aluminum
- Ambient Temperature: -10 / 60 °C
