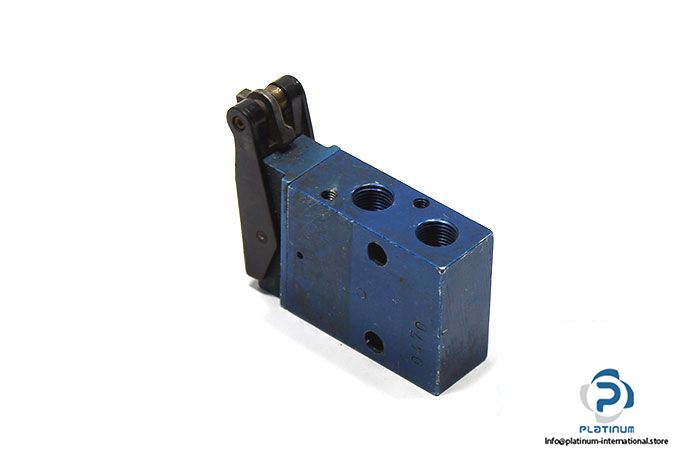

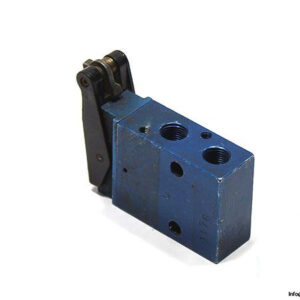

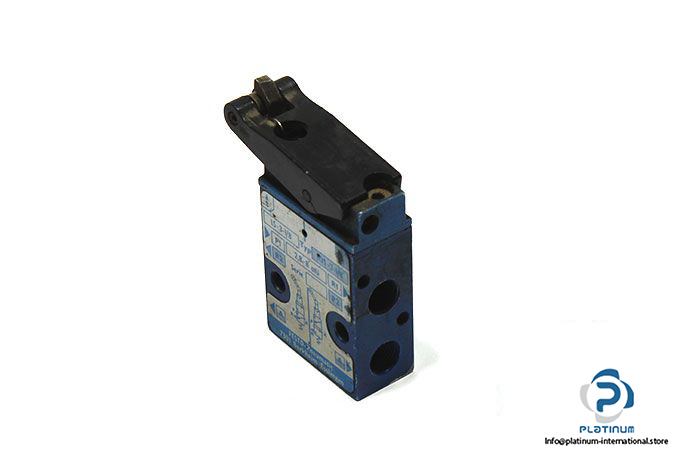

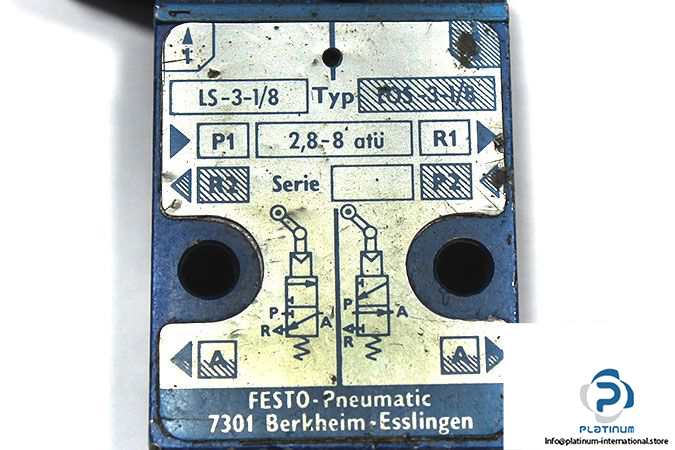

FESTO LS-3-1/8 / LOS-3-1/8 TOGGLE LEVER VALVE
The FESTO LS-3-1/8 is a robust toggle lever valve engineered for mechanical actuation in compressed air systems. Its compact design and anodized aluminum body make it ideal for high-efficiency pneumatic applications requiring quick switching and reliable sealing performance.
Manufacturer: FESTO
Type: Toggle Lever Valve
Model: LS-3-1/8 / LOS-3-1/8
Part No.: 2186 / 2950
Technical Information
- Fluid: Air
- Design: Poppet seat
- Function: 3/2-way, closed, monostable
- Type of Actuation: Mechanically
- Operating Pressure: 3.5 … 8 bar
- Nominal Flow Rate: 146 l/min
- Pneumatic Connection: G1/8
- Material: Anodized Aluminum
- Ambient Temperature: -10 / 60 °C
