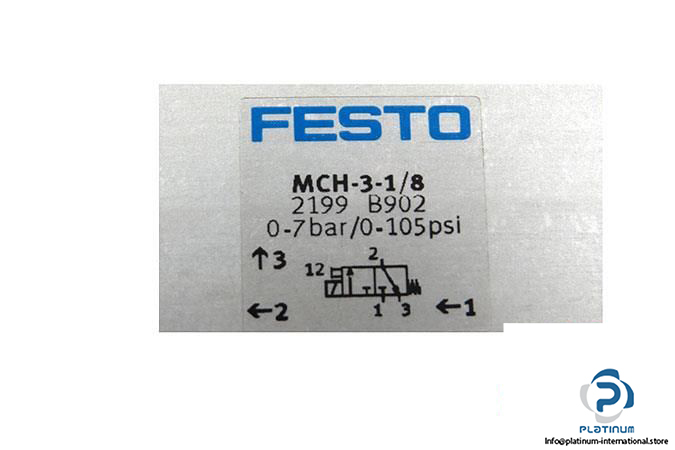

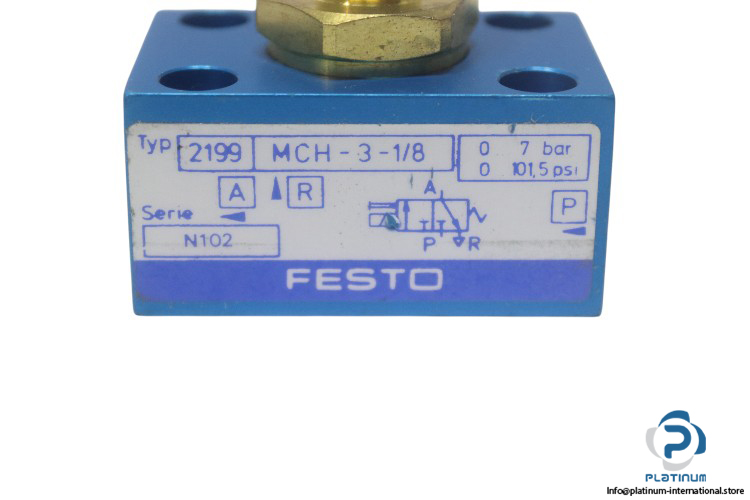

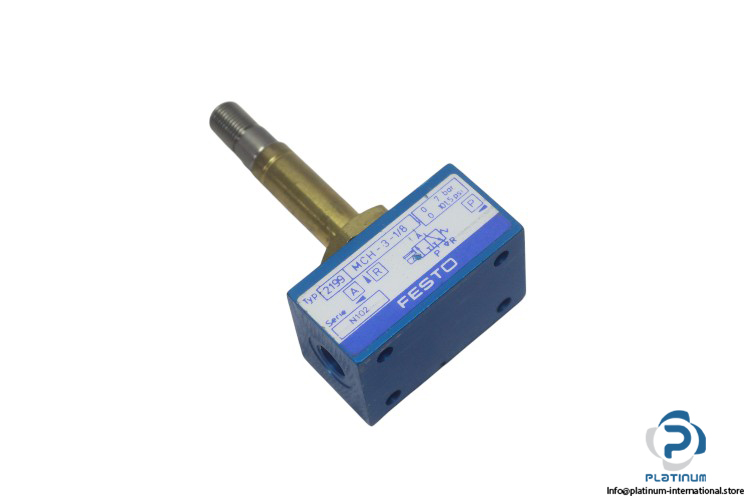

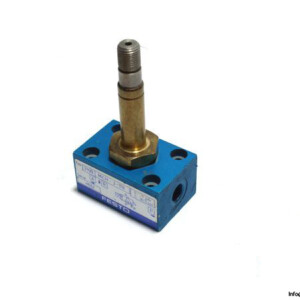

FESTO MCH-3-1/8 SINGLE SOLENOID VALVE
The FESTO MCH-3-1/8 is a high-performance single solenoid valve featuring a poppet design with spring return. Engineered for precision control of air systems, it is ideal for compact pneumatic applications requiring reliable and quick switching performance.
Manufacturer: FESTO
Type: Single Solenoid Valve
Model: MCH-3-1/8
Part No.: 2199
Technical Information
- Fluid: Air
- Design: Poppet valve with spring return
- Function: 3/2-way, closed, monostable
- Type of Actuation: Electrically
- Operating Pressure: 0 … 7 bar
- Nominal Flow Rate: 160 l/min
- Pneumatic Connection: G1/8
- Material: Aluminium
- Ambient Temperature: -5 / 40 °C
