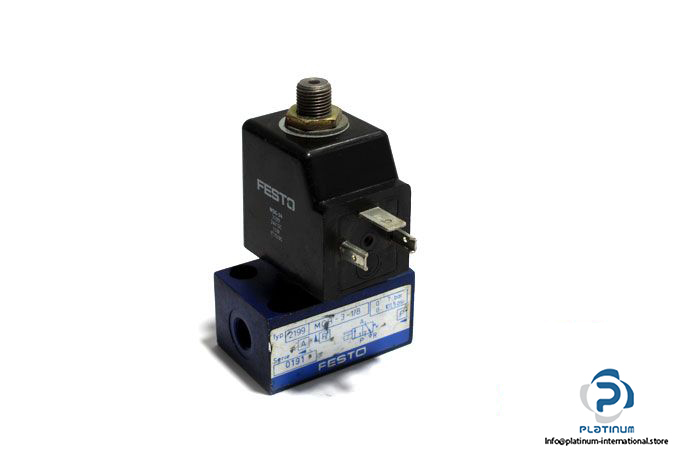

FESTO MCH-3-1/8 SINGLE SOLENOID VALVE WITH MSG-24 COIL

The FESTO MCH-3-1/8 is a compact single solenoid valve engineered for high reliability and precision in pneumatic systems. Designed with a spring return poppet valve mechanism, this 3/2-way valve offers stable and consistent control of air flow. Paired with the FESTO MSG-24 solenoid coil, it provides efficient electrical actuation in industrial applications.

Manufacturer: FESTO
Type: Single Solenoid Valve

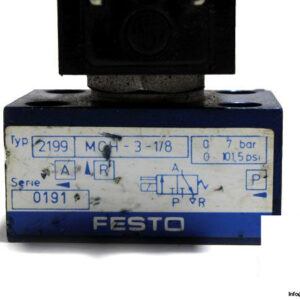

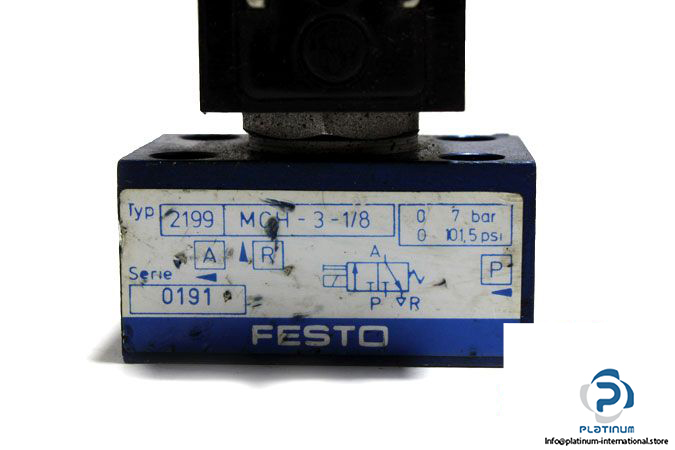

Model: MCH-3-1/8
Part No.: 2199

Technical Information

• Fluid: Air
• Design: Poppet valve with spring return
• Function: 3/2-way, closed, monostable
• Type of Actuation: Electrically
• Operating Pressure: 0 … 7 bar
• Nominal Flow Rate: 160 l/min
• Pneumatic Connection: G1/8
• Material: Aluminium
• Ambient Temperature: -5 / 40 °C

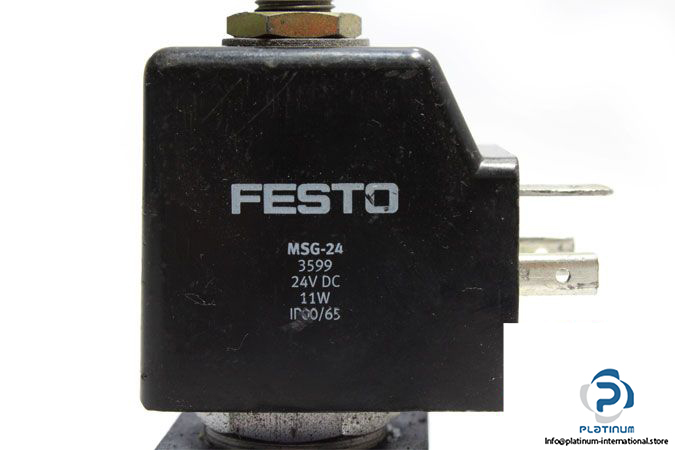

Attachment: FESTO 3599 SOLENOID COIL

Manufacturer: Festo
Type: Solenoid Coil

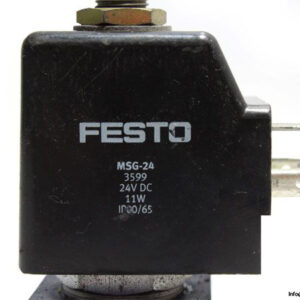

Model: MSG-24
Part No.: 3599

Coil Technical Information

• Supply Voltage: 24 V DC
• Power Consumption: 11 W
• Protection Class: IP65
