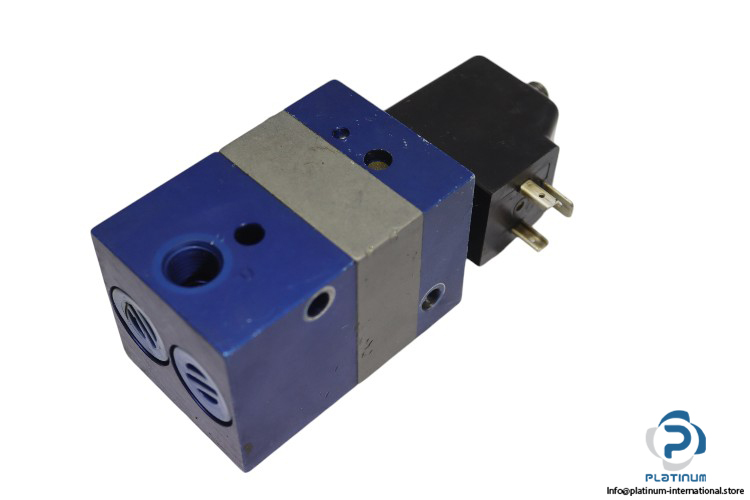

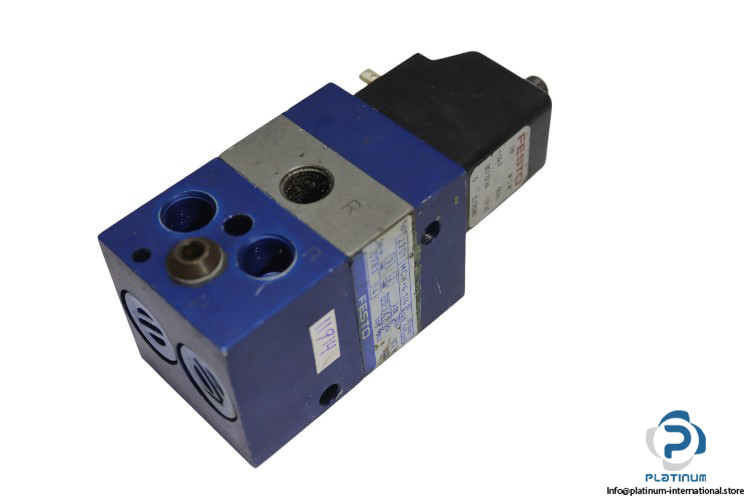

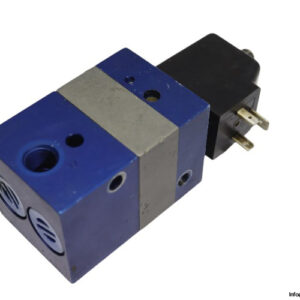

Festo MCH-4-1/4 Single Solenoid Valve with MSFG-24/42-50/60 Coil

The Festo MCH-4-1/4 Single Solenoid Valve is a reliable 4/2 way valve designed for efficient air control in industrial pneumatic systems. Electrically actuated and rated for up to 10 bar pressure, it is equipped with a G 1/4 connection port. The valve includes the FESTO MSW Solenoid Coil (MSFG-24/42-50/60), providing a 24 V AC supply, 50 Hz frequency, and IP65 protection for dependable operation.

Manufacturer: FESTO

Type: Single Solenoid Valve

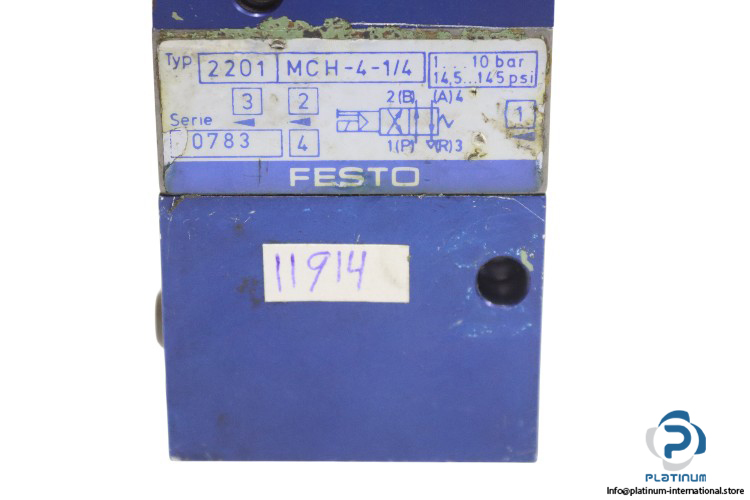

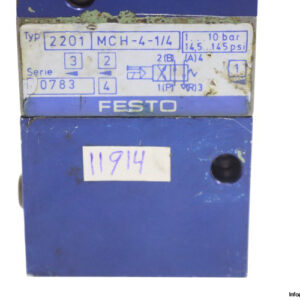

Model: MCH-4-1/4

Part No.: 2201

Technical Information (Valve):

• Fluid: Air
• Valve Function: 4/2 Way Valve
• Type of Actuation: Electrically
• Operating Pressure Max.: 10 bar
• Pneumatic Connection: G 1/4

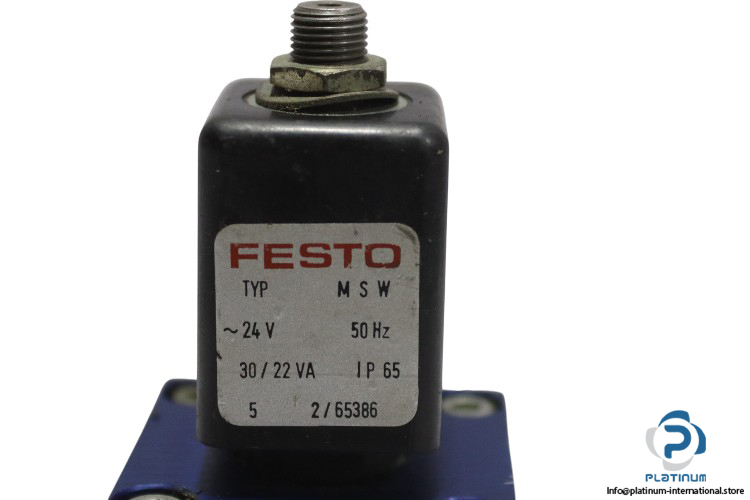

Attachment “ Solenoid Coil (Included):

• Manufacturer: FESTO
• Type: Solenoid Coil
• Model: MSFG-24/42-50/60
• Part No.: 4527
• Supply Voltage: 24 V AC
• Frequency: 50 Hz
• Power Consumption: 30 / 22 VA
• Protection Class: IP65
