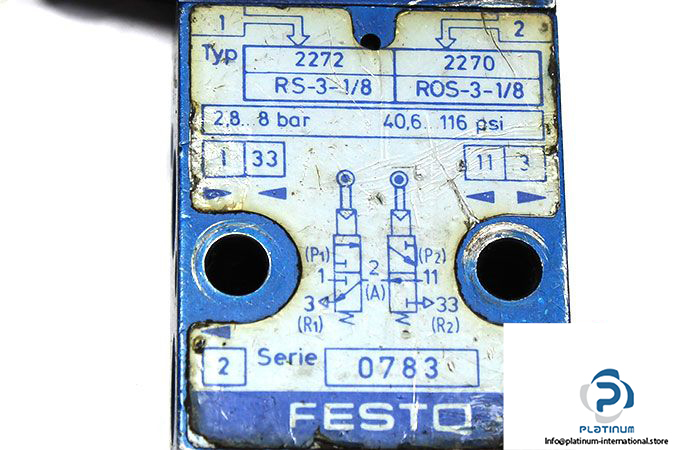

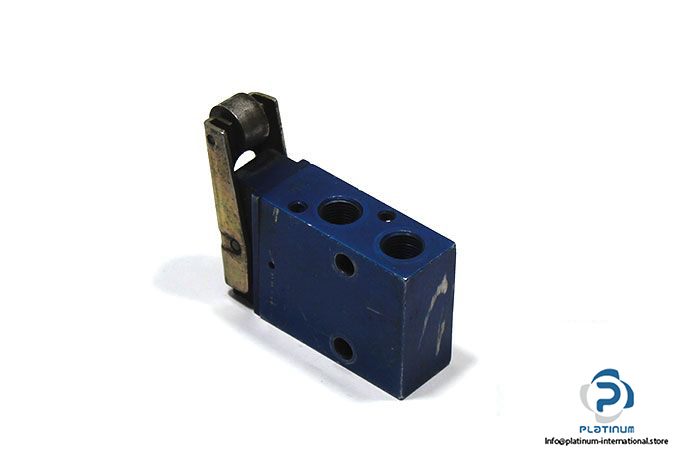

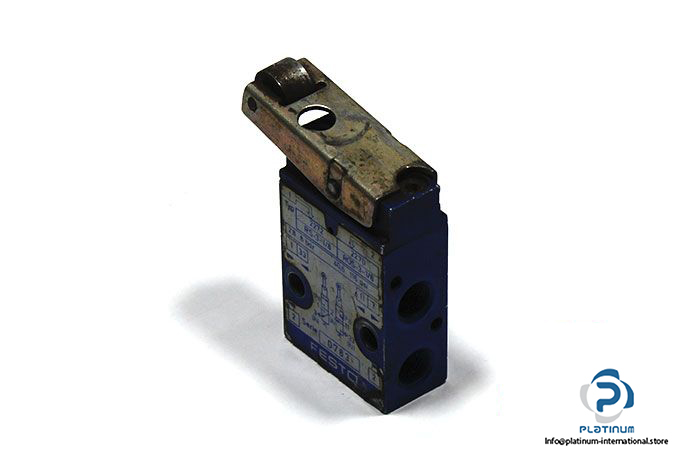

FESTO RS-3-1/8 / ROS-3-1/8 ROLLER LEVER VALVE
The FESTO RS318 and ROS318 roller lever valves are designed for robust mechanical actuation in pneumatic systems. With a durable anodized aluminum body and poppet seat design, they ensure reliable 3/2-way functionality under varying pressure and temperature conditions.
Manufacturer: FESTO
Type: Roller Lever Valve
Model: RS-3-1/8 / ROS-3-1/8
Part No.: 2272 / 2270
Technical Information
- Fluid: Air
- Design: Poppet Seat
- Function: 3/2-way, closed, monostable
- Type of Actuation: Mechanical
- Operating Pressure: 3.5 / 8 bar
- Flow Rate: 2272: 151 l/min | 2270: 169 l/min
- Pneumatic Connection: G1/8
- Material: Aluminum, Anodized
- Ambient Temperature: -10 / 60 °C
