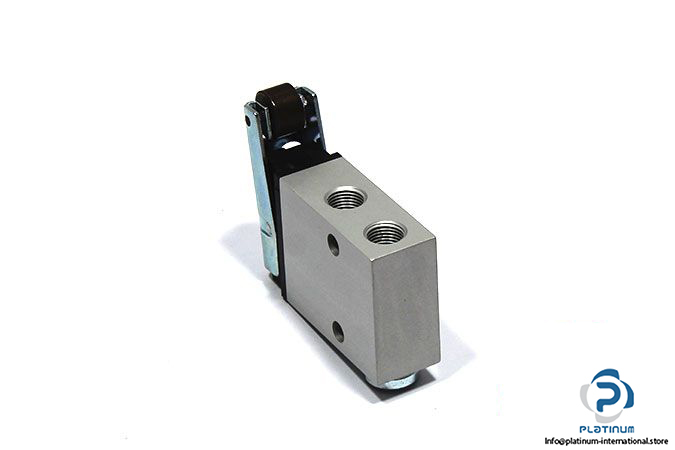

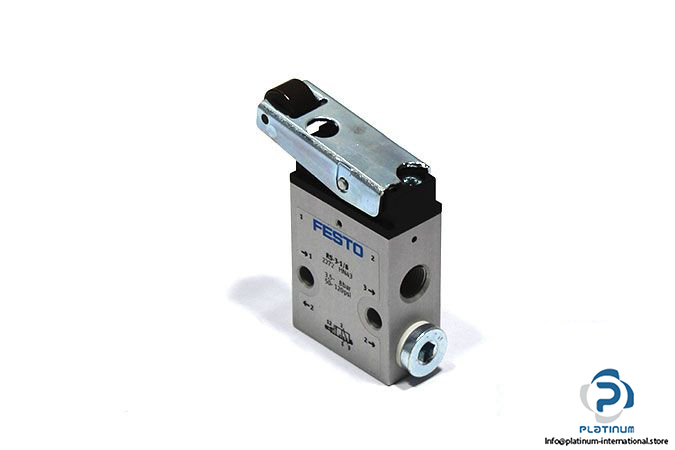

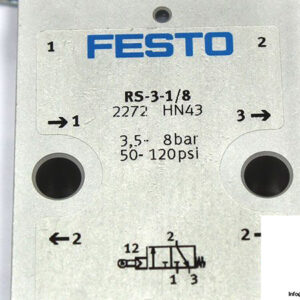

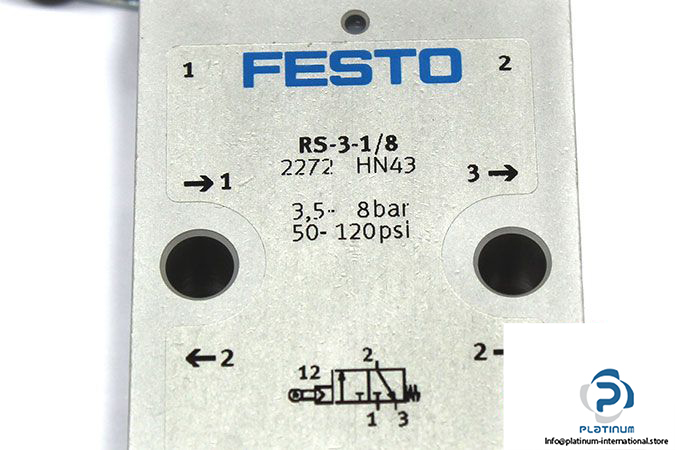

FESTO RS-3-1/8 ROLLER LEVER VALVE
The FESTO RS-3-1/8 is a high-performance roller lever valve built for precision mechanical control in pneumatic systems. Featuring a robust anodized aluminum body and plate seat design, this monostable 3/2 valve provides reliable flow regulation in compact configurations.
Manufacturer: FESTO
Type: Roller Lever Valve
Model: RS-3-1/8
Part No.: 2272
Technical Information
- Fluid: Air
- Design: Plate seat
- Function: 3/2, closed, monostable
- Type of Actuation: Mechanically
- Operating Pressure: 3.5 … 8 bar
- Nominal Flow Rate: 151 l/min
- Actuating Force: 1.73 N
- Pneumatic Connection: G1/8
- Material: Anodized Aluminum
- Ambient Temperature: -10 / 60 °C
