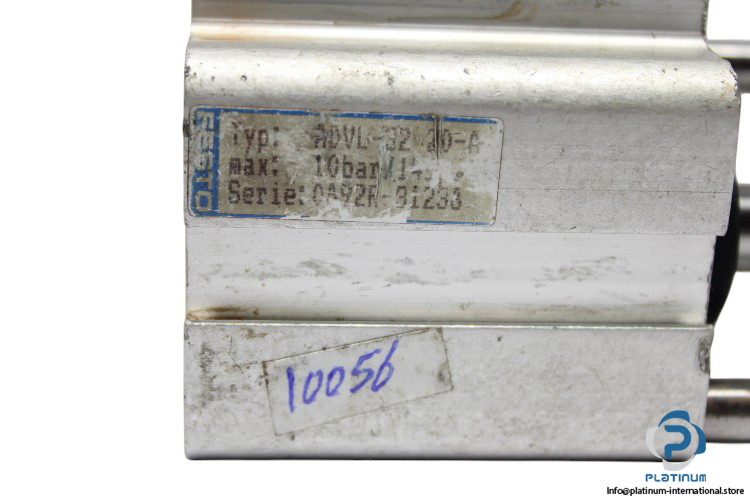

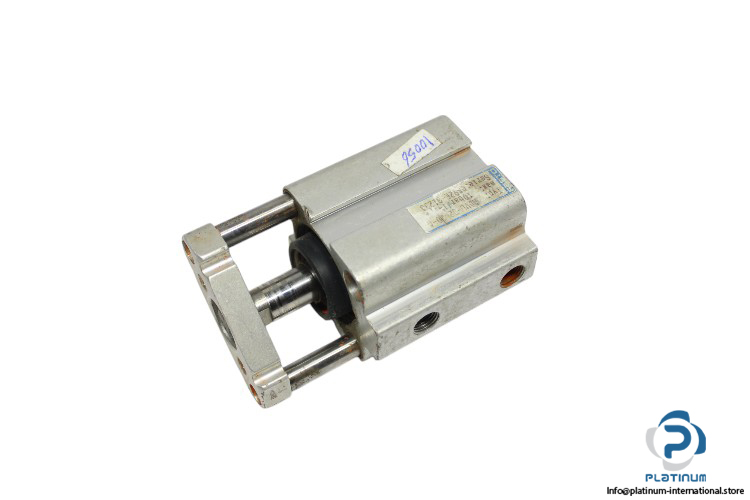

Festo ADVL-32-20-A Double Acting Cylinder
The Festo ADVL-32-20-A Double Acting Cylinder is designed for high-performance pneumatic applications, offering precision, durability, and reliable operation. With a bore size of 32 mm and a stroke length of 20 mm, this cylinder is ideal for industrial automation and motion control systems.
Manufacturer: Festo
Type: DOUBLE ACTING CYLINDER
Model: ADVL-32-20-A
Part No.: 31233
Technical Information:
- Bore Size: 32 mm
- Standard Stroke: 20 mm
- Fluid: Air
- Maximum Operating Pressure: 10 bar
- Ambient and Fluid Temperature Range: -20 to 60 °C
- Pneumatic Connection: G 1/8
This double-acting cylinder ensures smooth and controlled motion, making it suitable for a wide range of pneumatic applications where precision and reliability are required.
