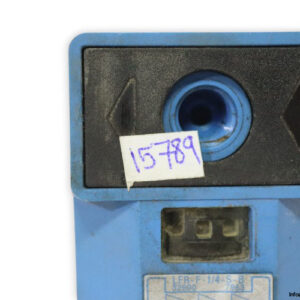

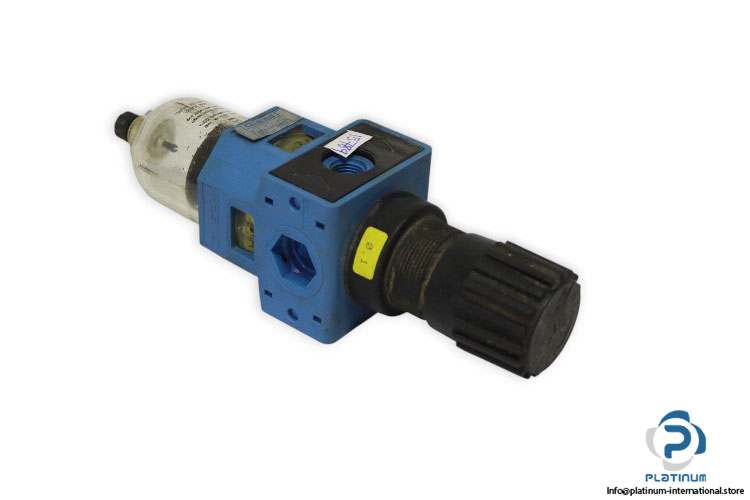

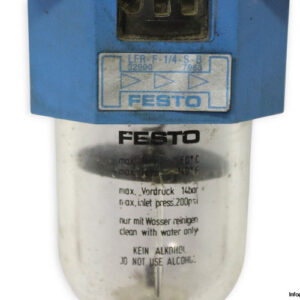

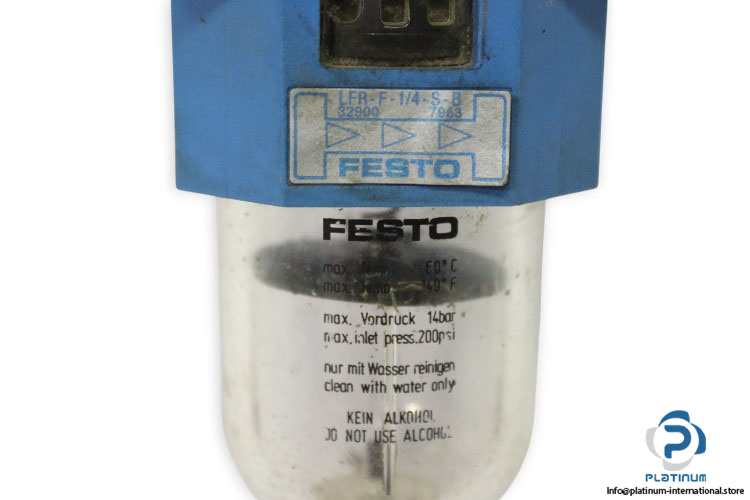

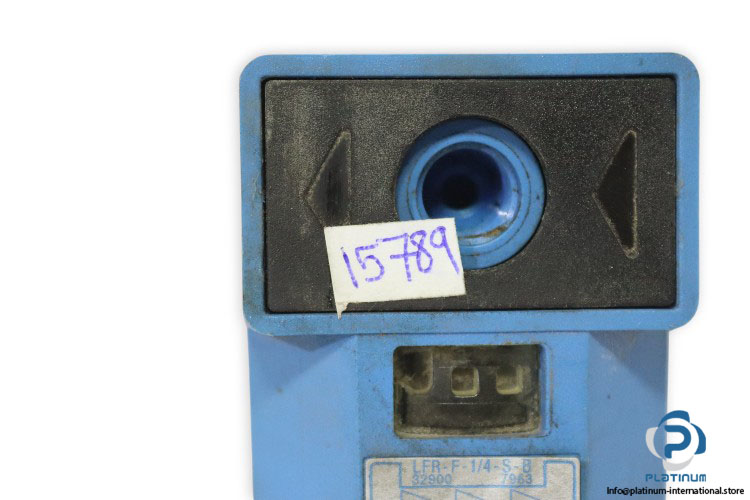

Festo LFR-F-1/4-S-B Filter Regulator with Lubricator
The Festo LFR-F-1/4-S-B is a compact and efficient filter regulator with lubricator designed for compressed air systems. It ensures clean, regulated, and lubricated airflow, enhancing the performance and longevity of pneumatic equipment. Built with durable PA-polymer housing and bowl, this unit provides reliability in demanding industrial environments.
- Manufacturer: Festo
- Type: Filter Regulator with Lubricator
- Model: LFR-F-1/4-S-B
- Part No.: 32900
- Ref. No.: 7963
Technical Information
- Input Pressure 1 Min.: 0.5 bar
- Input Pressure 1 Max.: 14 bar
- Output Pressure 2 Max.: 12 bar
- Output Pressure 3 Max.: 12 bar
- Thread for Port 1: G1/4
- Thread for Port 2: G1/4
- Thread for Port 3: G1/4
- Type of Mounting: Hole
- Standard Nominal Flow Rate 1-2: 2200 l/min
- Operating Medium Input: Compressed Air
- Actuator Locking: Pull-up-and-turn Adjustment
- Pressure Hysteresis (Pressure Regulator): 0.3 bar
- Material of Housing: PA-polymer
- Material of Bowl: PA-polymer
- Ambient Temperature: -10 to 60°C
