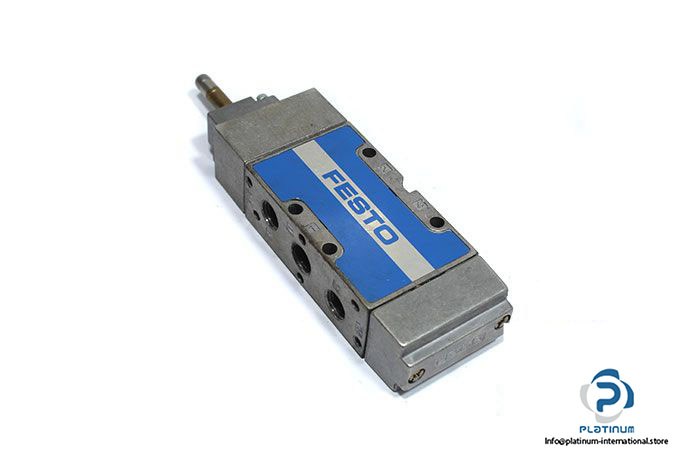

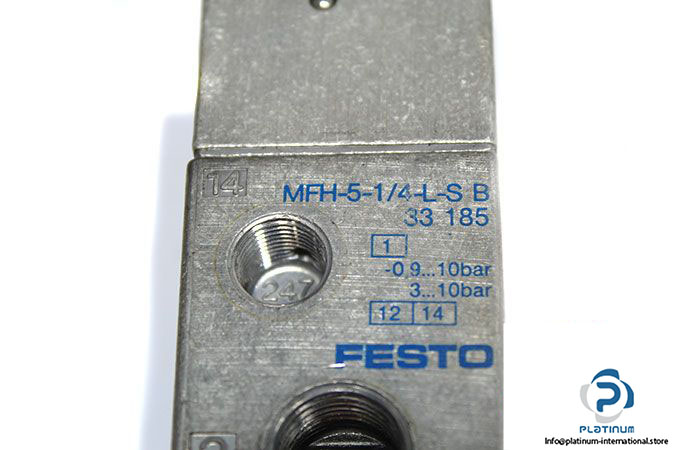

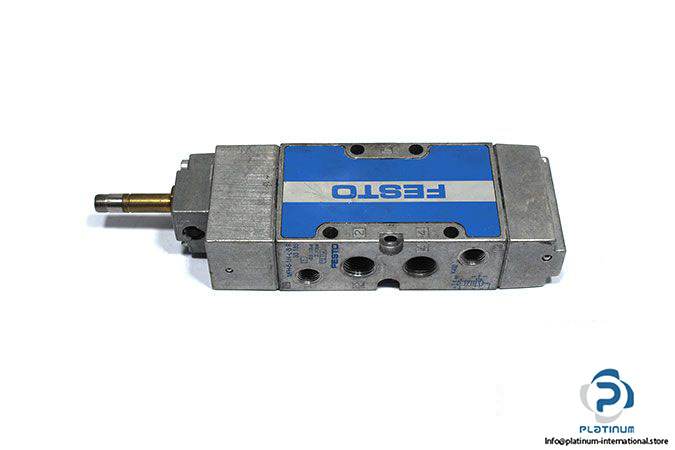

FESTO MFH-5-1/4-L-S-B SINGLE SOLENOID VALVE
The FESTO MFH-5-1/4-L-S-B is a high-performance single solenoid valve designed for efficient pneumatic control in industrial systems. With a robust aluminum die-cast body and monostable 5/2-way function, it delivers precise control and long service life under demanding conditions.
Manufacturer: FESTO
Type: Single Solenoid Valve
Model: MFH-5-1/4-L-S-B
Part No.: 33185
Technical Information
- Fluid: Air
- Design: Piston gate valve
- Function: 5/2-way, monostable
- Type of Actuation: Electrically
- Operating Pressure: -0.9 to 10 bar
- Nominal Flow Rate: 1600 l/min
- Pneumatic Connection: G1/4
- Material: Aluminum die cast
- Ambient Temperature: -5 to 40 °C
