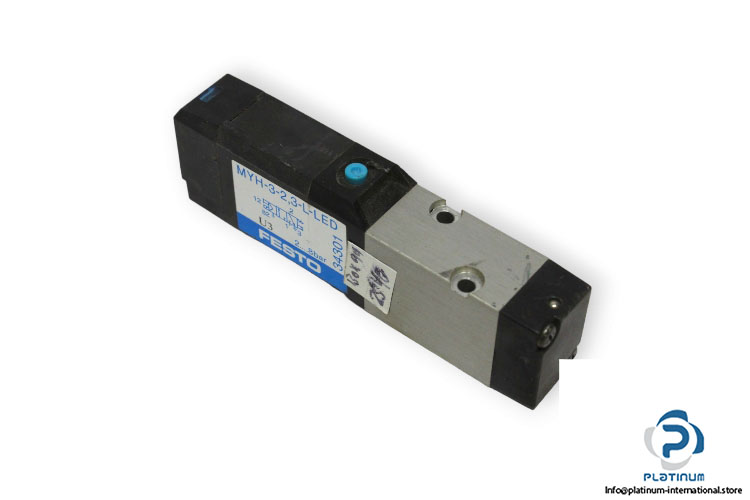

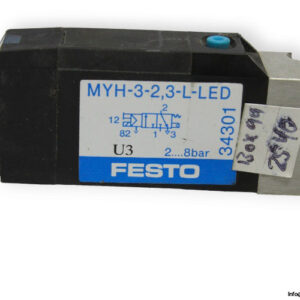

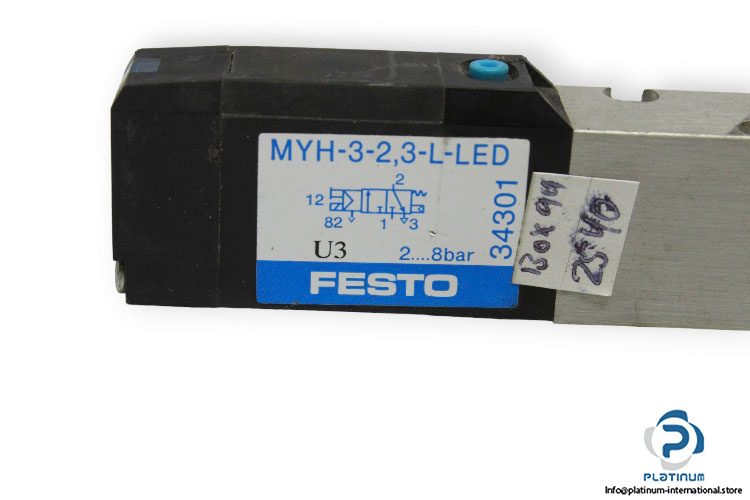

FESTO MYH-3-2,3-L-LED AIR SOLENOID VALVE
The FESTO MYH32.3LLED is a compact and efficient air solenoid valve designed for precision pneumatic control. Featuring a 3/2 normally closed configuration with single solenoid actuation, it ensures reliable switching in automated systems. Engineered with a piston slide design and durable aluminum die-cast body for long service life.
Manufacturer: FESTO
Type: Air Solenoid Valve
Model: MYH-3-2,3-L-LED
Part No.: 34301
Technical Information
- Fluid: Air
- Design: Piston slide
- Valve Function: 3/2 closed, single solenoid
- Type of Actuation: Electrically
- Operating Pressure: 2 / 8 bar
- Nominal Flow Rate: 190 l/min
- Supply Voltage: 24 V DC
- Pneumatic Connection: Sub-base
- Material: Aluminum die cast
- Ambient Temperature: -5 / 50 °C
