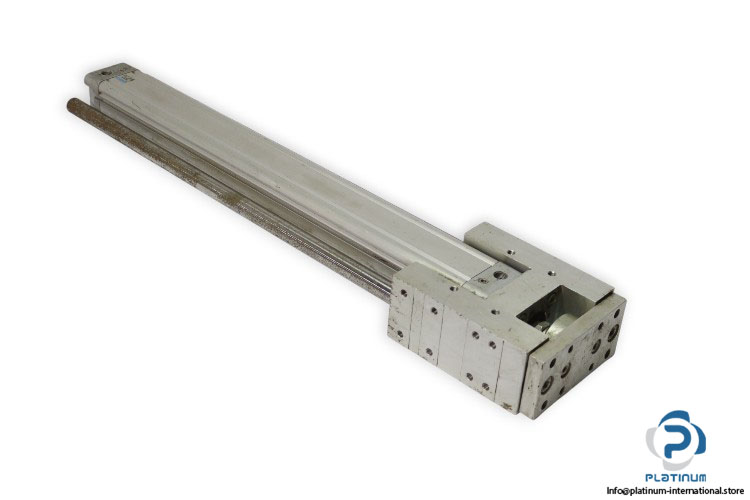

FESTO Guide Unit FENG-50-500-KF with ISO Cylinder DNC-50-500-PPV-A-Q
The FESTO FENG-50-500-KF is a high-performance guide unit designed for linear motion applications requiring stability, precision, and extended stroke lengths. Featuring a recirculating ball bearing guide and anodized aluminum construction, this unit is built for reliability in demanding environments. It is mounted with the FESTO ISO Cylinder DNC-50-500-PPV-A-Q, offering smooth double-acting pneumatic operation and robust build quality for industrial automation systems.
Manufacturer: Festo
Type: Guide Unit

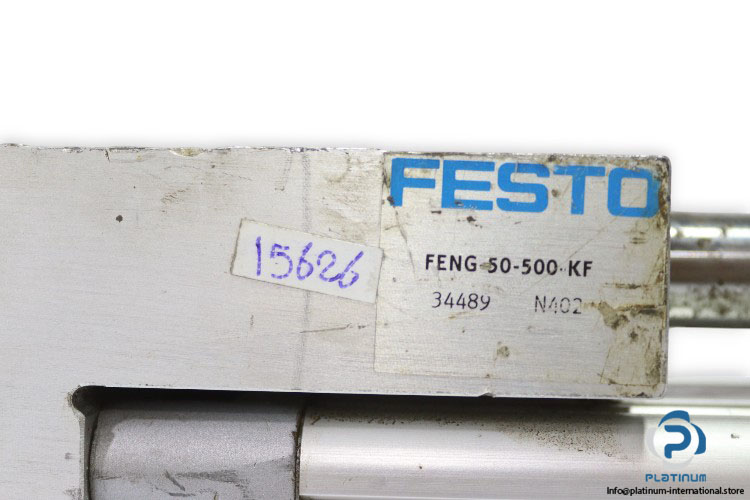

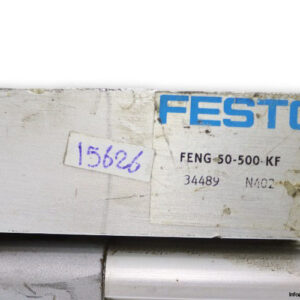

Model: FENG-50-500-KF
Part No.: 34489
Ref. Code: N402
Technical Information “ Guide Unit
- Diameter: 50 mm
- Stroke: 500 mm
- Guide: Recirculating Ball Bearing Guide
- Design: Guidance
- Max. Force Fy Static: 1600 N
- Ambient Temperature: -20 to 80 °C
- Housing Material: Anodized Wrought Aluminum Alloy
- Material of Guide Component: Tempered Steel
Attachment “ ISO Cylinder
Manufacturer: Festo
Type: ISO Cylinder

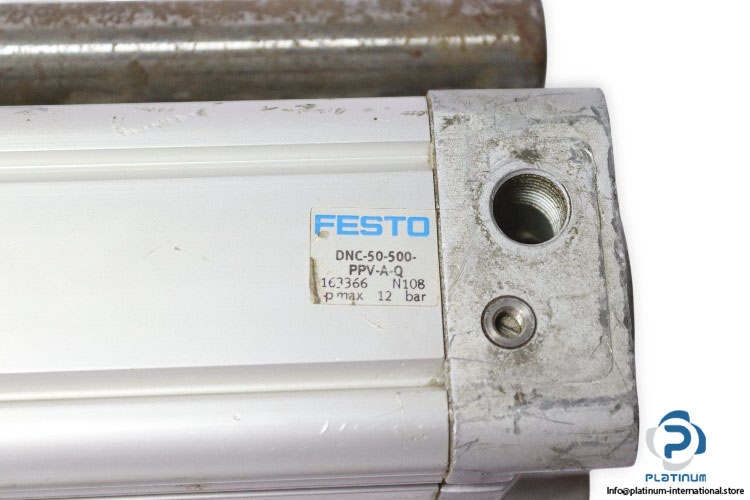

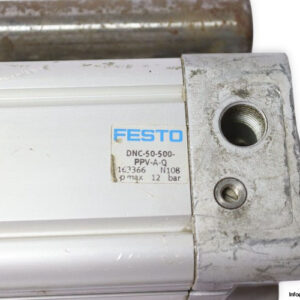

Model: DNC-50-500-PPV-A-Q
Part No.: 163366
Technical Information “ ISO Cylinder
- Media: Compressed Air
- Stroke: 500 mm
- Piston Diameter: 50 mm
- Max. Pressure: 12 bar
- Pneumatic Connection: G 1/4
- Design: Double-Acting
- Cylinder Barrel Material: Wrought Aluminum Alloy
- Operating Temperature: -40 to 120 °C
