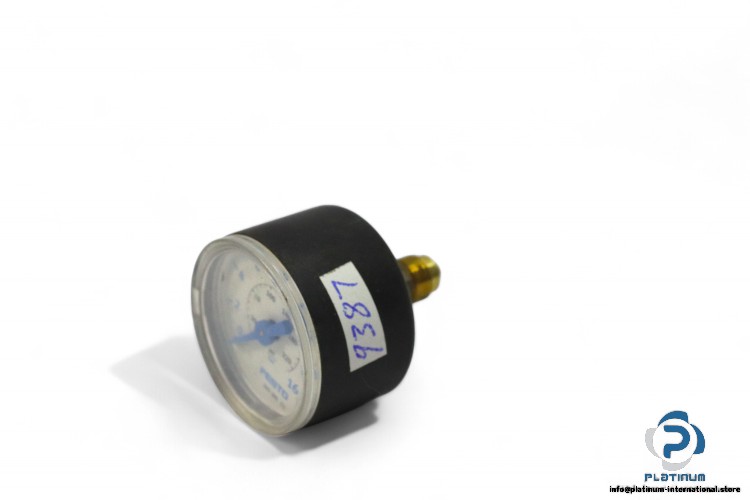

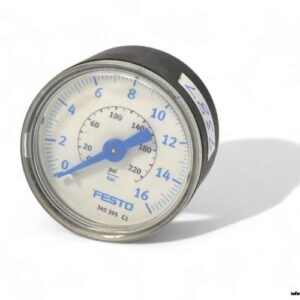

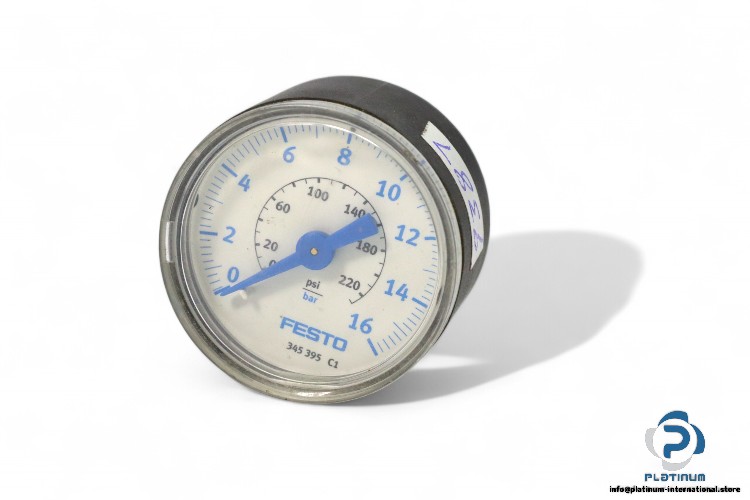

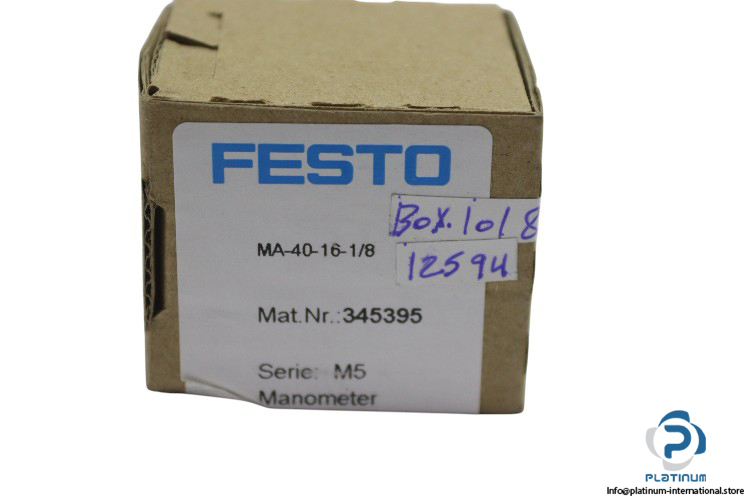

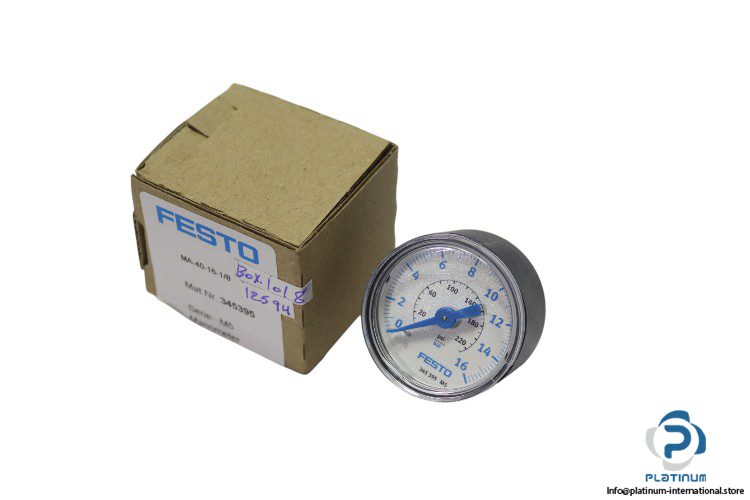

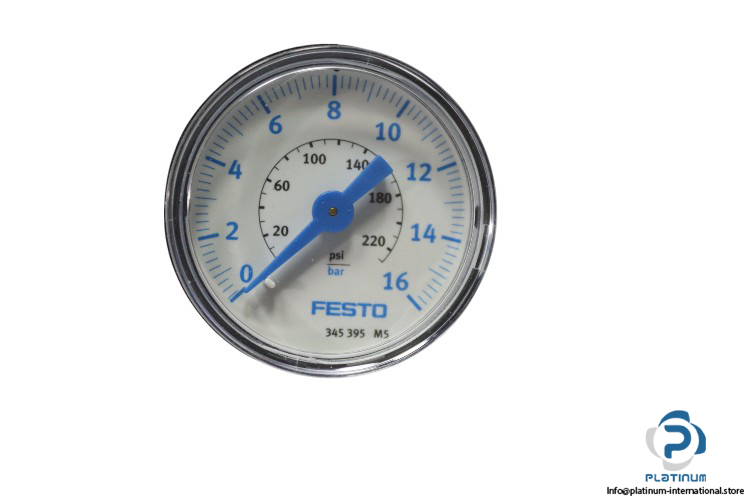

FESTO 345395 PRESSURE GAUGE
The Festo 345395 pressure gauge is a compact and reliable instrument designed for accurate pressure measurement in pneumatic systems. Built to industrial standards with RoHS compliance, this unit ensures dependable performance across a broad operating range.
Manufacturer: Festo
Type: Pressure Gauge
Model: 345395
Technical Information
- Indicating Range: 0 bar…16 bar, 0 psi…232 psi
- Nominal Size of Pressure Gauge: 40
- Design: Bourdon Tube Pressure Gauge
- Type of Mounting: In-line Installation
- Operating Pressure: 0 MPa…1.6 MPa, 0 bar…16 bar, 0 psi…232 psi
- Degree of Protection: IP43
- Ambient Temperature: -20 °C…60 °C
- LABS (PWIS) Conformity: VDMA24364-B2-L
- Note on Materials: RoHS-Compliant
- Position of Connection: Centred, Rear Side
- Pneumatic Connection: G1/8
- Material in Contact with Medium: Brass
- Material Screwed Plug: Brass
- Material Housing: ABS
- Material Screen: PS
- Housing Color: Black
