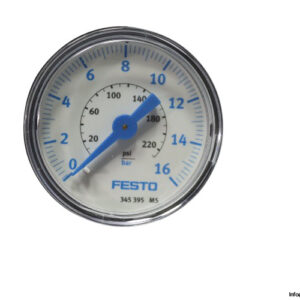

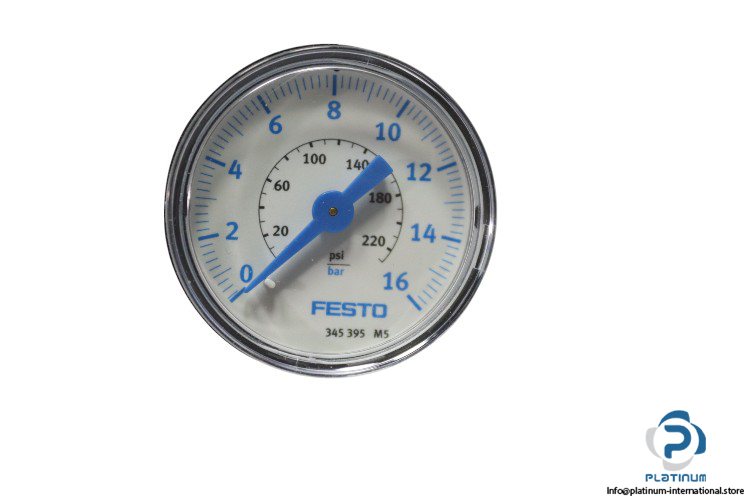

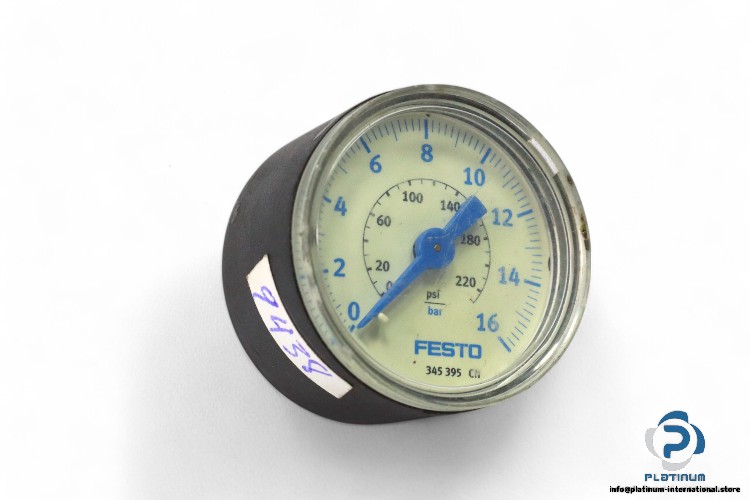

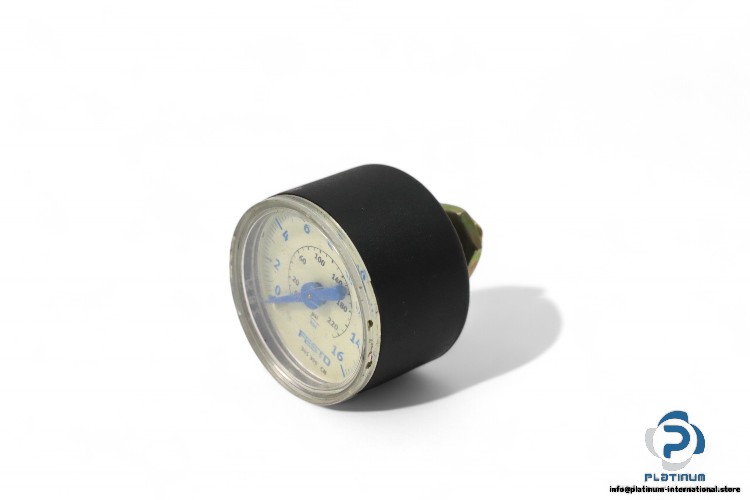

Festo MA-40-16-1/8 “ Pressure Gauge
The Festo MA-40-16-1/8 pressure gauge is a high-precision instrument designed for monitoring pressure levels in a wide range of industrial applications. Featuring a Bourdon tube design and built with durable materials, it ensures accurate measurements and reliable performance under varying conditions.
- Manufacturer: Festo
- Type: Pressure Gauge
- Model: MA-40-16-1/8
- Part No: 345395
Technical Information:
- Indicating Range: 0 bar to 16 bar
- Nominal Size of Pressure Gauge: 40 mm
- Design: Bourdon tube pressure gauge
- Type of Mounting: In-line installation
- Operating Medium: Inert gases, Neutral fluids
- Degree of Protection: IP43
- Ambient Temperature: -20 to 60 °C
- Pneumatic Connection: G1/8
- Material in Contact with the Medium: Brass
- Material Screwed Plug: Brass
- Material Housing: ABS
- Material Screen: PS
