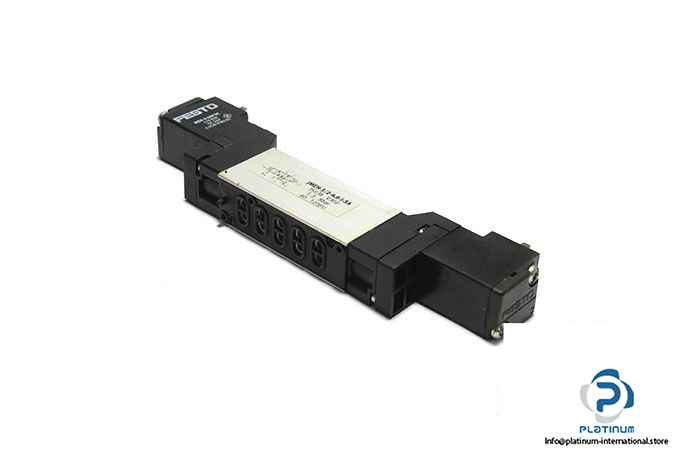

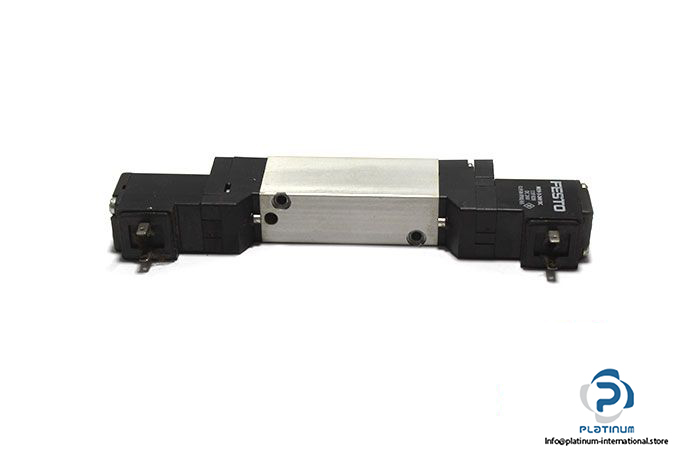

FESTO JMEH-5/2-4,0-I-SA DOUBLE SOLENOID VALVE WITH MEH-3-0,9 COIL

The FESTO JMEH-5/2-4,0-I-SA is a high-performance double solenoid valve designed for precision pneumatic applications. Constructed with die-cast aluminum and paired with the FESTO MEH-3-0,9 coil, this system ensures reliable switching, durability, and efficient flow control.

Manufacturer: FESTO
Type: Double Solenoid Valve

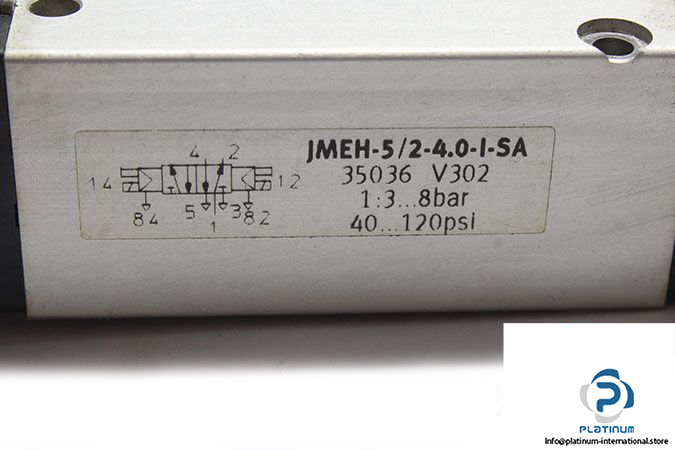

Model: JMEH-5/2-4,0-I-SA
Part No.: 35036

Technical Information

• Fluid: Air
• Function: 5/2-way
• Type of Actuation: Electrically
• Operating Pressure: 1.5 to 8 bar
• Pneumatic Connection: Sub Based
• Material: Die-cast aluminum
• Ambient Temperature: -5 to 50 °C

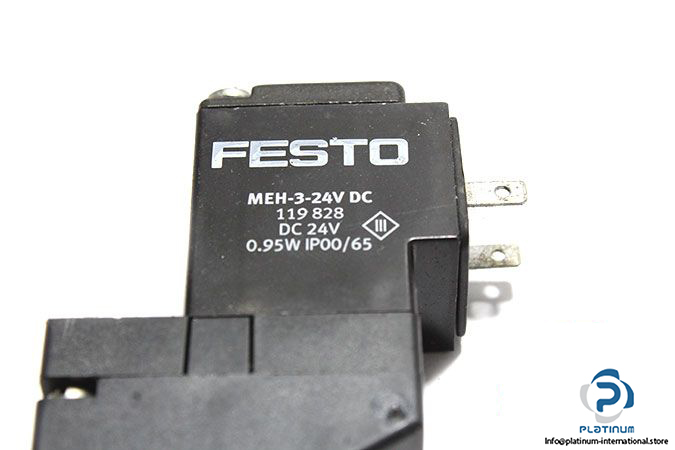

Attachment: FESTO 119 828 SOLENOID COIL

Manufacturer: FESTO
Type: Solenoid Coil
Model: MEH-3-0,9
Part No.: 119828

Solenoid Coil Technical Information

• Supply Voltage: 21.6 to 26.4 V DC
• Power Consumption: 0.95 W
• Protection Class: IP00 / IP65
