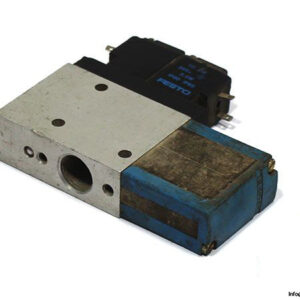

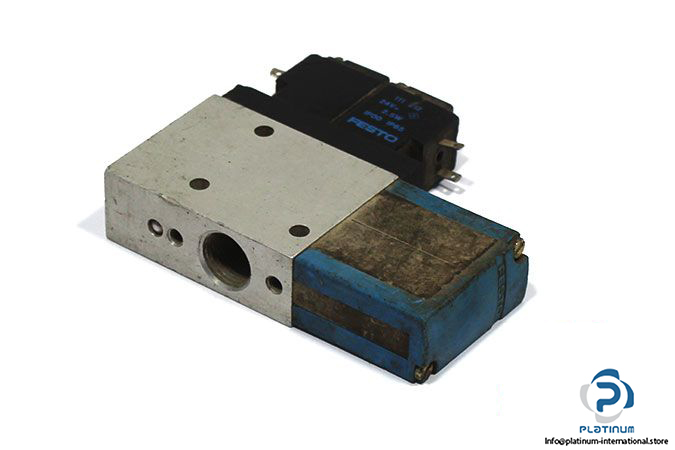

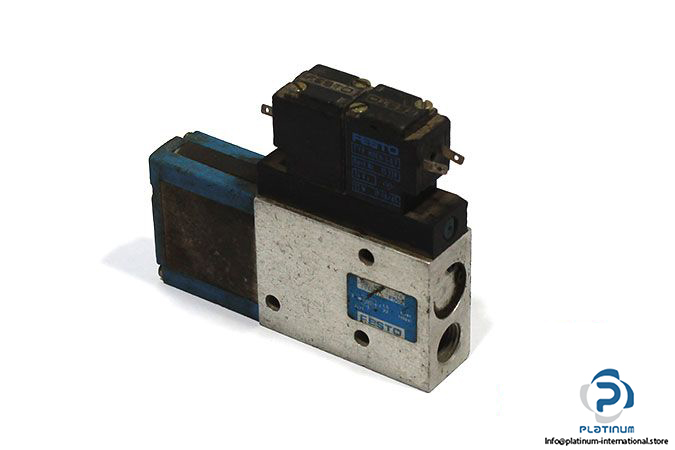

FESTO VAD-ME-I-3/8 VACUUM GENERATOR WITH SOLENOID COILS

The FESTO VAD-ME-I-3/8 is a high-performance vacuum generator designed for industrial pneumatic systems. Its robust aluminum body and efficient Laval nozzle ensure strong and stable vacuum generation. The unit includes FESTO solenoid coils for reliable electrical control and automation.

Manufacturer: FESTO
Type: Vacuum Generator

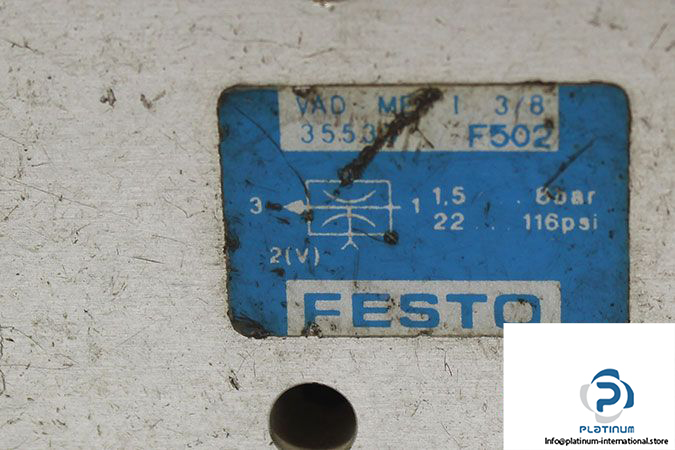

Model: VAD-ME-I-3/8
Part No.: 35533

Technical Information

• Fluid: Air
• Design: T-shape
• Laval Nozzle Nominal Size: 2 mm
• Operating Pressure: 1.5 to 8 bar
• Vacuum Max.: 90%
• Pneumatic Connection: G1/4 / G3/8
• Material: Aluminium
• Ambient Temperature: 0 “ 50 °C

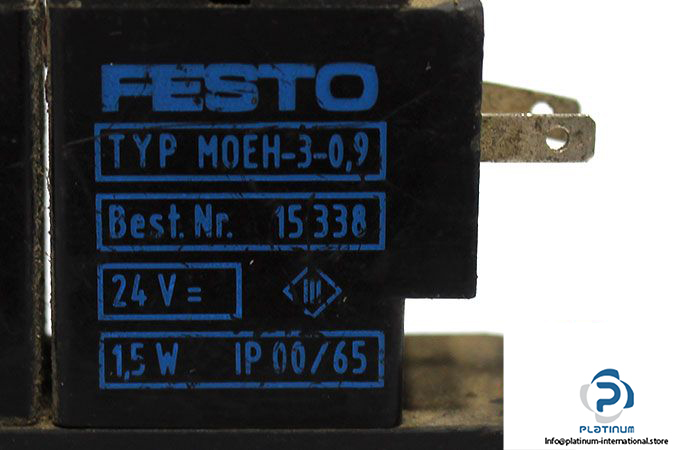

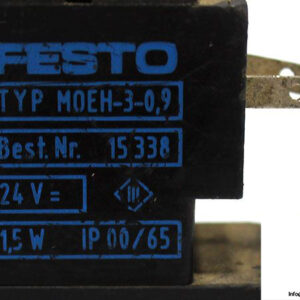

Attachment: FESTO 15338 Solenoid Coil

Model: MOEH-3-0,9
Part No.: 15338

• Supply Voltage: 24 V DC
• Power Consumption: 1.5 W
• Protection Class: IP00 / IP65

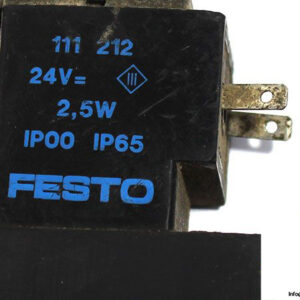

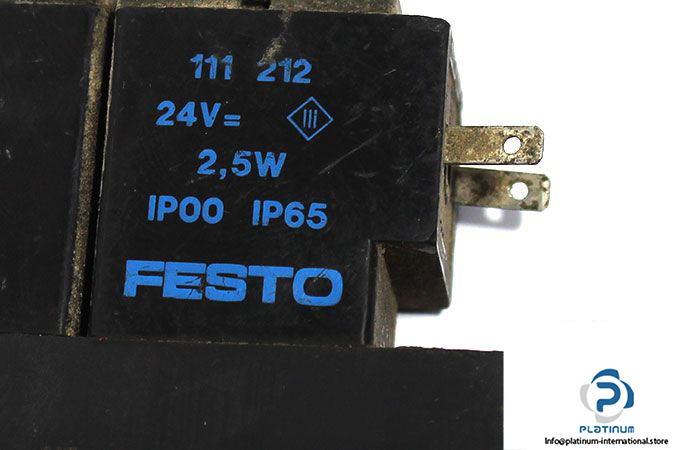

Attachment: FESTO 111212 Solenoid Coil

Model: MEH-2-24V DC
Part No.: 111212

• Supply Voltage: 24 V DC
• Power Consumption: 2.5 W
• Protection Class: IP00 / IP65
