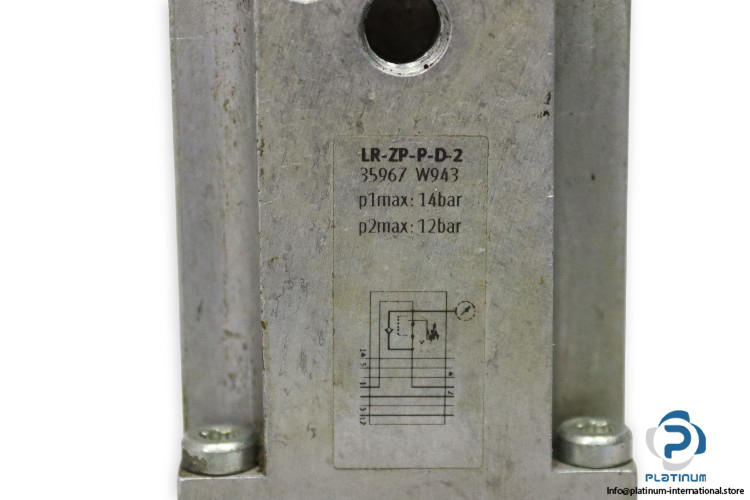

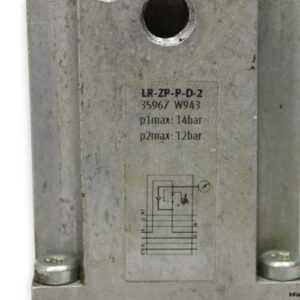

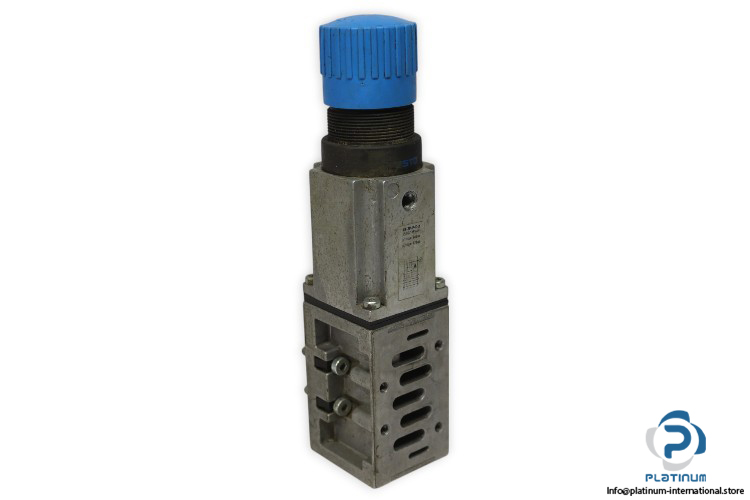

FESTO LR-ZP-P-D-2 INTERMEDIATE PRESSURE REGULATOR PLATE
This precision-engineered pressure regulator plate from Festo is designed for accurate control and reliability in compressed air systems. Ideal for complex pneumatic applications requiring dual inlet regulation and high material durability.
Manufacturer: Festo
Type: Intermediate Pressure Regulator Plate
Model: LR-ZP-P-D-2
Part No.: 35967
Ref. Code: W943
Technical Information
- Inlet Pressure 1: max. 14 bar
- Inlet Pressure 2: max. 12 bar
- Pressure Regulating Range: 0 to 12 bar
- Media: Air
- Design Structure: Piston
- Connection: G1/8
- Materials (Seals): NBR
- Materials (Housing): Aluminum Die Cast, Steel
