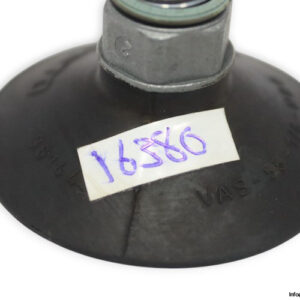

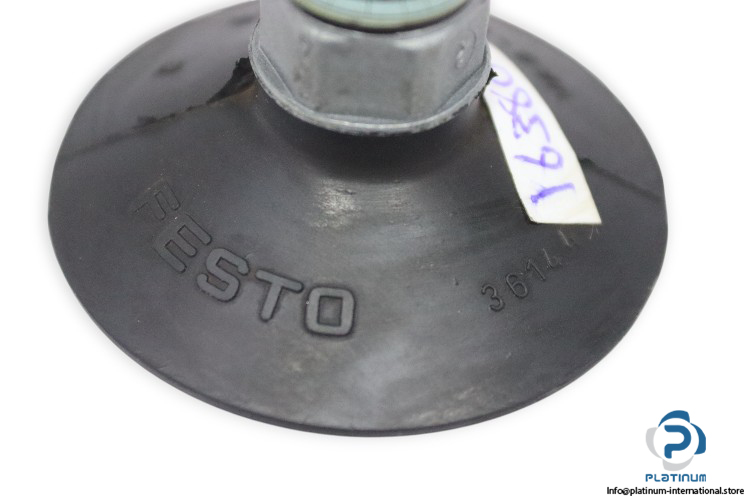

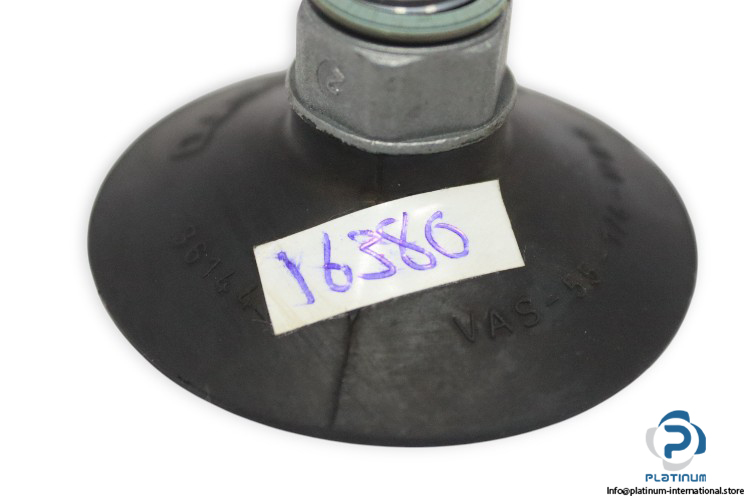

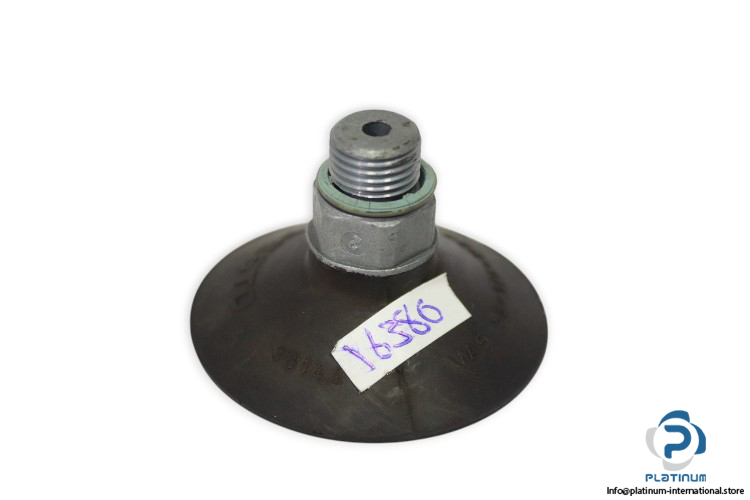

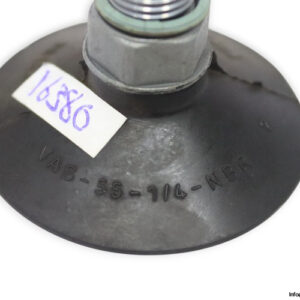

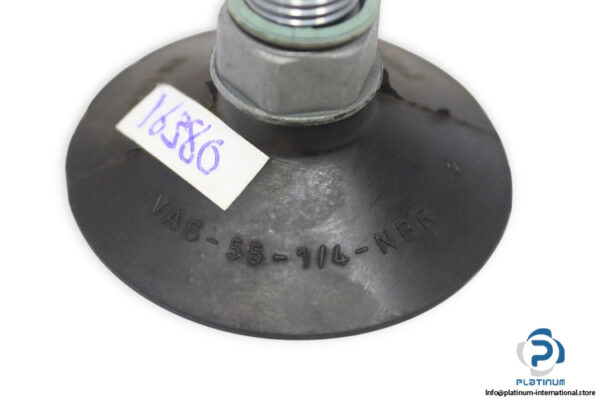

FESTO VAS-55-1/4-NBR Vacuum Suction Cup

The FESTO VAS-55-1/4-NBR Vacuum Suction Cup is a durable and efficient component designed for secure handling of smooth or flat surfaces in automation systems. Its NBR construction ensures high wear resistance and reliable performance under demanding vacuum applications.

Manufacturer: FESTO
Type: Vacuum Suction Cup
Model: VAS-55-1/4-NBR
MRN: 36144

Technical Information

• Suction Cup Diameter: 55 mm
• Effective Suction Cup Diameter: 44 mm
• Suction Cup Shape: Round, Flat
• Suction Cup Material: NBR
• Suction Cup Height Compensation: 3.5 mm
• Nominal Width: 4 mm
• Operating Pressure: -0.95 bar … 0 bar
• Nominal Operating Pressure: -0.7 bar
• Operating Medium: Atmospheric Air
• Vacuum Connection: G1/4
• Material of Screwed Plug: Die-cast Zinc
