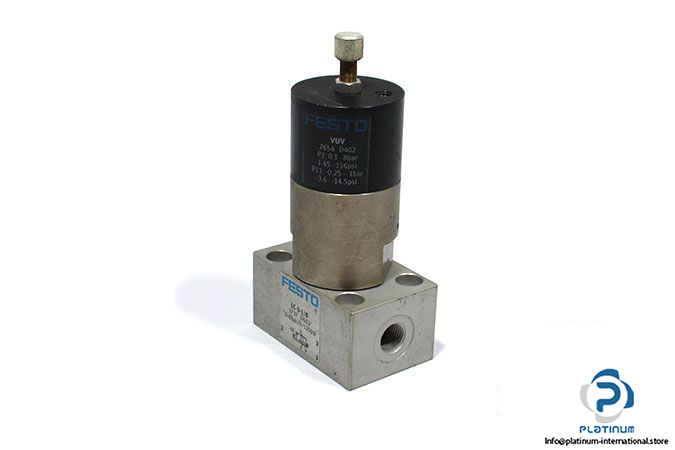

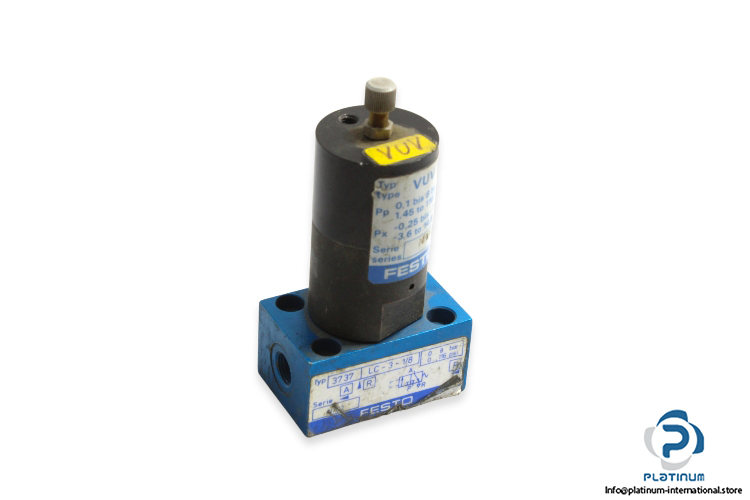

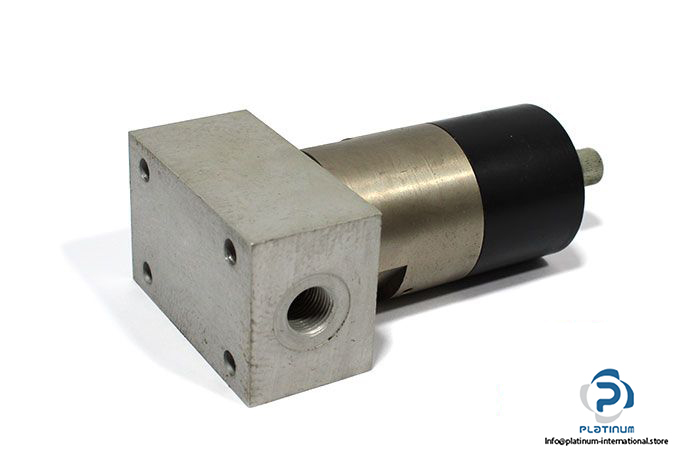

FESTO LC-3-1/8 BASIC VALVE BODY WITH VUV VACUUM ACTUATOR

The FESTO LC-3-1/8 is a high-quality basic valve body designed for precise pneumatic control. With a 3/2-way function and a return spring mechanism, it offers reliable direct actuation in compact systems. Attached with the FESTO VUV Vacuum Actuator, it provides efficient vacuum operation with excellent responsiveness and durability.

Manufacturer: FESTO
Type: Basic Valve Body

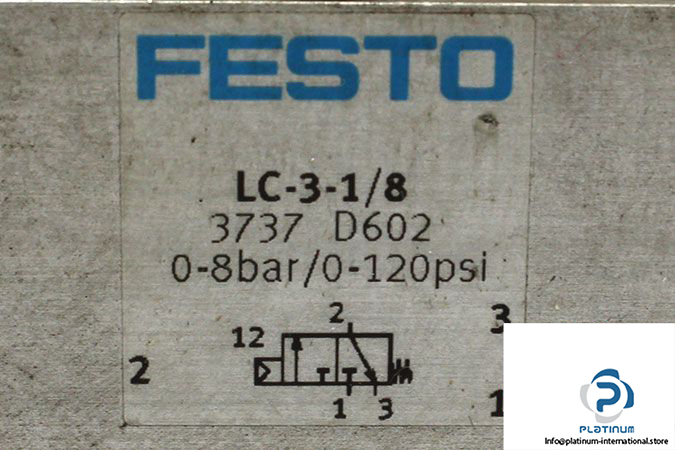

Model: LC-3-1/8
Part No.: 3737

Technical Information – Valve Body

• Fluid: Air
• Design: Poppet Valve, Directly Actuated in One Direction, with Return Spring
• Function: 3/2 Way
• Type of Actuation: Pneumatically
• Operating Pressure: 0 … 8 bar
• Nominal Flow Rate: 80 l/min
• Pneumatic Connection: G1/8
• Material: Blue Anodized Aluminium
• Ambient Temperature: -10 / 60 °C

Attachment – FESTO VUV VACUUM ACTUATOR

Manufacturer: FESTO
Type: Vacuum Actuator
Model: VUV
Part No.: 7654

Technical Information – Vacuum Actuator

• Fluid: Compressed Air
• Operating Pressure: -0.25 … 1 bar / -45 … 116 PSI
• Pilot Pressure: 0.1 … 8 bar / 3.6 … 14.5 PSI
