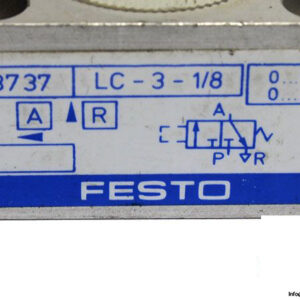

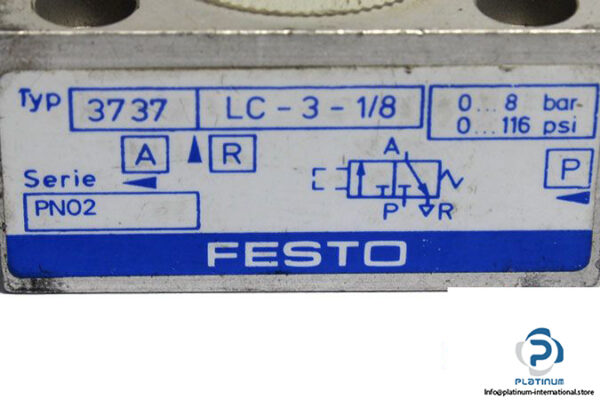

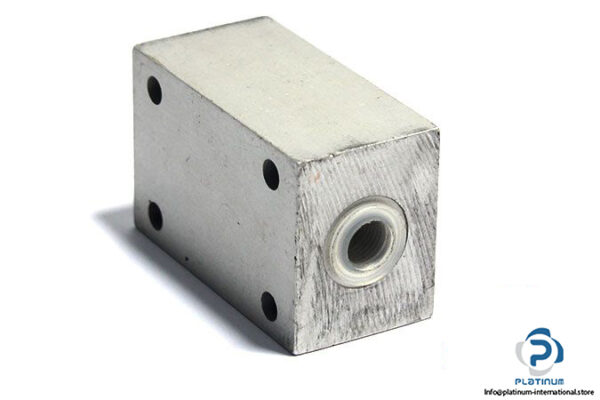

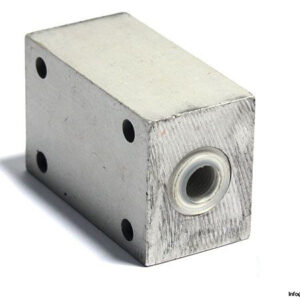

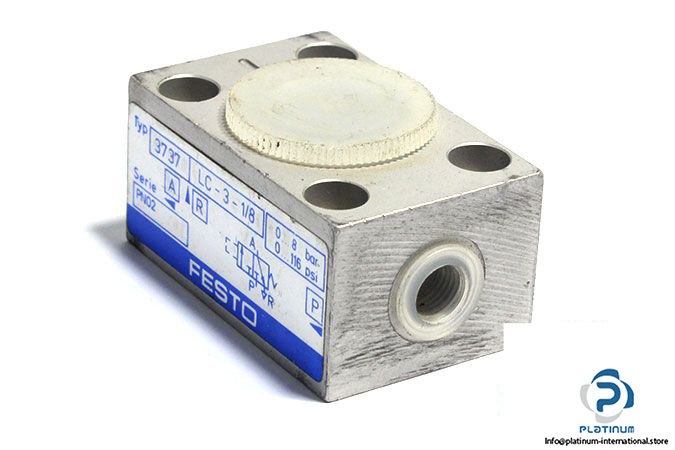

FESTO LC-3-1/8 BASIC VALVE BODY
The FESTO LC318 is a high-quality basic valve body designed for pneumatic applications requiring precise control and reliable performance. Featuring a 3/2-way poppet design with direct actuation and return spring, this valve is ideal for compact and efficient air systems.
Manufacturer: FESTO
Type: Basic Valve Body
Model: LC-3-1/8
Part No.: 3737
Technical Information
- Fluid: Air
- Design: Poppet Valve, Directly Actuated in One Direction, with Return Spring
- Function: 3/2 Way
- Type of Actuation: Pneumatically
- Operating Pressure: 0 … 8 bar
- Nominal Flow Rate: 80 l/min
- Pneumatic Connection: G1/8
- Material: Blue Anodized Aluminium
- Ambient Temperature: -10 / 60 °C
