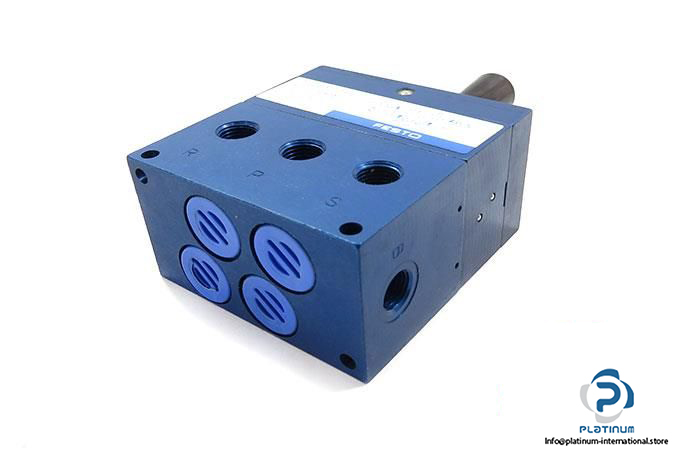

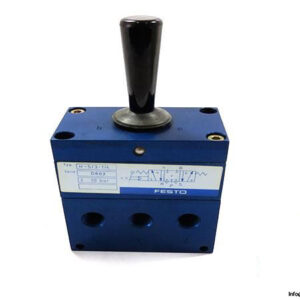

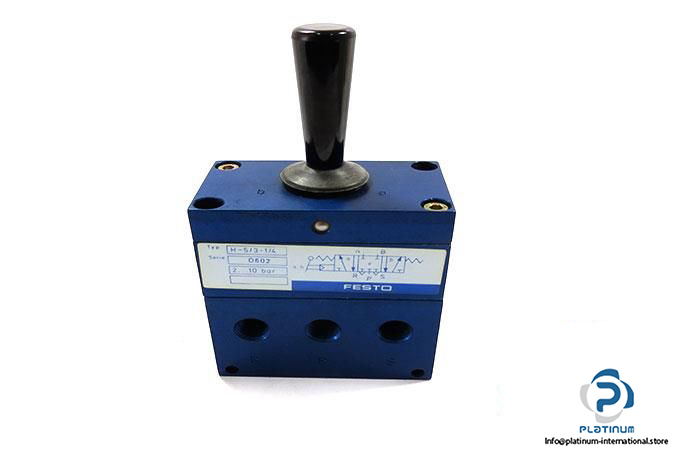

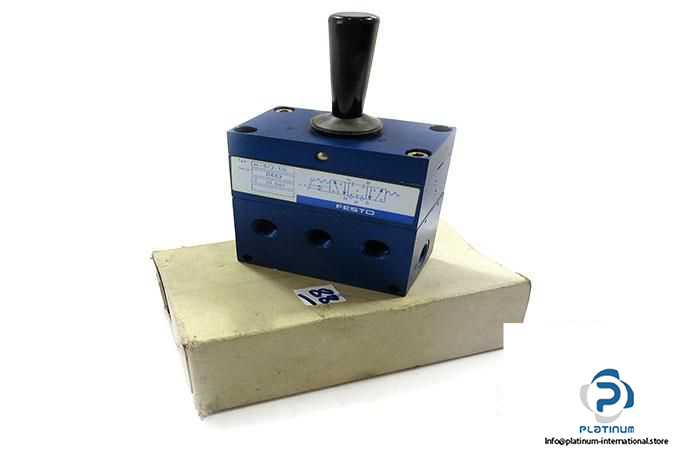

FESTO H-5/3-1/4 TOGGLE LEVER VALVE
The FESTO H-5/3-1/4 is a manually actuated toggle lever valve engineered for robust pneumatic applications. Featuring a 5/3 closed function and high flow rate, it is ideal for precise control in industrial air systems.
Manufacturer: FESTO
Type: Toggle Lever Valve
Model: H-5/3-1/4
Part No.: 4577
Technical Information
- Fluid: Air

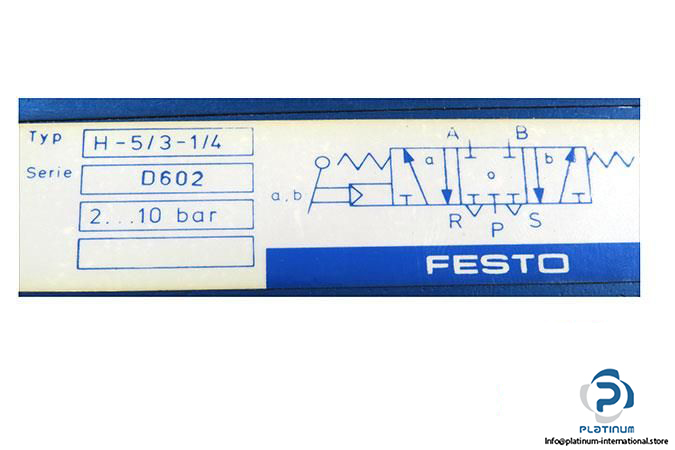

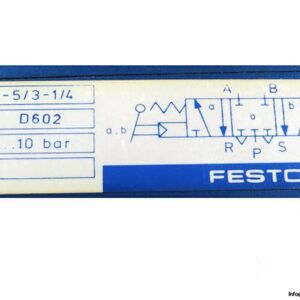

- Function: 5/3 Closed
- Type of Actuation: Manually
- Operating Pressure: 2 / 10 bar
- Nominal Flow Rate: 680 l/min
- Pneumatic Connection: G1/4
- Material: Anodized Aluminum
- Ambient Temperature: -10 / 60 °C
