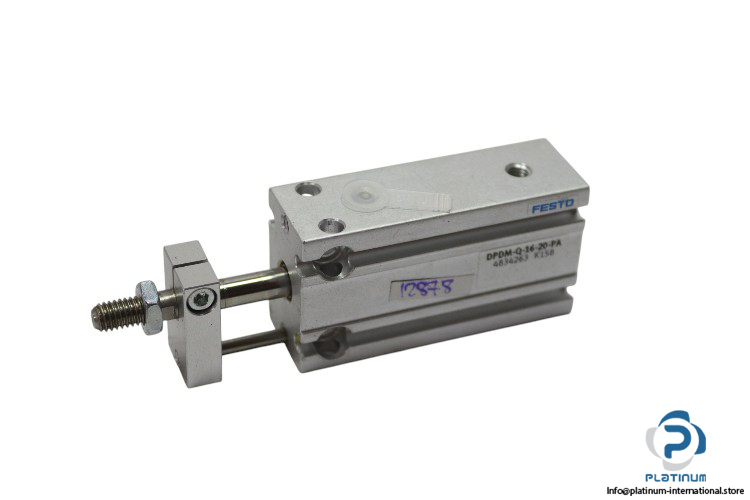

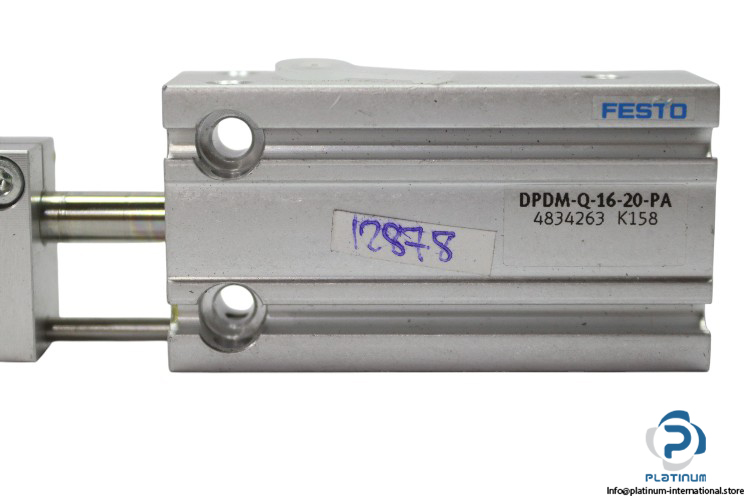

FESTO DPDM-Q-16-20-PA Compact Air Cylinder

The FESTO DPDM-Q-16-20-PA (Part No. 4834263) is a high-performance compact air cylinder designed for space-efficient and precise motion in pneumatic automation systems. With flexible mounting, double-acting operation, and integrated position detection, it meets diverse industrial application needs.

• Manufacturer: FESTO
• Type: Compact Air Cylinder
• Model: DPDM-Q-16-20-PA
• Part No.: 4834263

Technical Information:

• Stroke: 20 mm
• Piston Diameter: 16 mm
• Pneumatic Connection: M5
• Cushioning: Elastic cushioning rings/plates at both ends
• Mounting: Position optional
• Mode of Operation: Double-acting
• Design Piston:
  • Piston rod
  • Profile barrel
• Position Detection: Via proximity switch
• Variants: Piston rod at one end
• Protection Against Torque/Guide: Guide rod with yoke
• Operating Pressure: 0.15 MPa … 0.8 MPa / 1.5 bar … 8 bar
• Operating Medium: Compressed air
• Ambient Temperature: -10 / 80 °C
