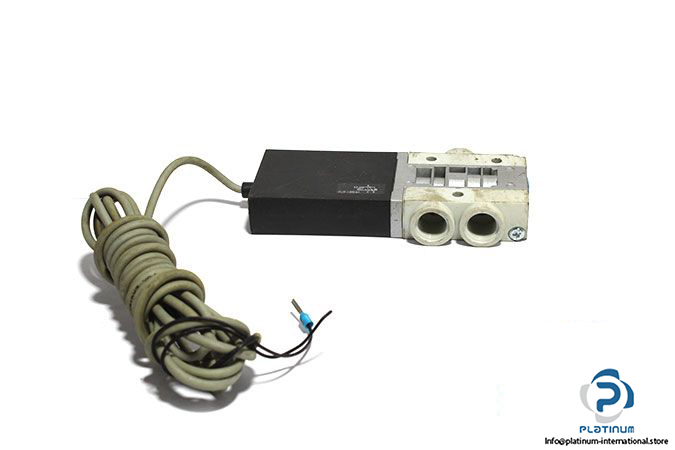

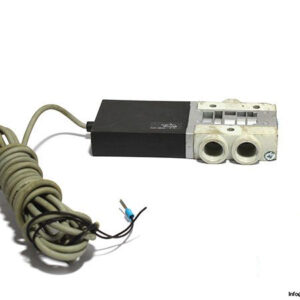

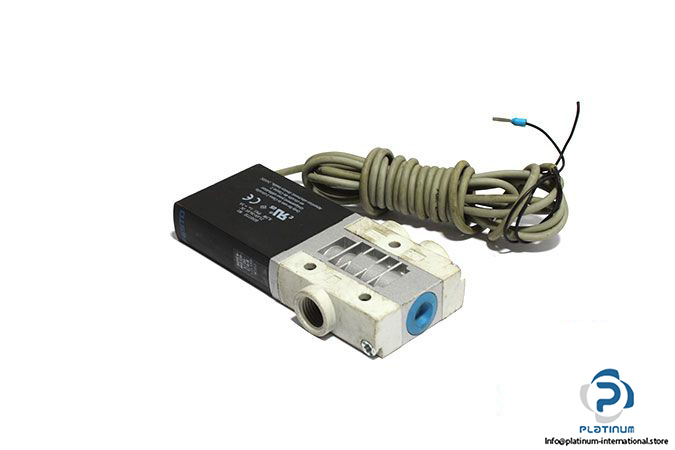

FESTO MHE4-MS1H-3/2G-1/4-K AIR SOLENOID VALVE WITH COIL
The FESTO MHE4-MS1H-3/2G-1/4-K is a high-performance air solenoid valve built for reliable and efficient pneumatic control. Designed with a pressure-relieved poppet valve mechanism, this 3/2-way, monostable valve is electrically actuated and ideal for demanding automation environments. The set includes the FESTO 650773 solenoid coil to ensure precise actuation.
Manufacturer: FESTO
Type: Air Solenoid Valve

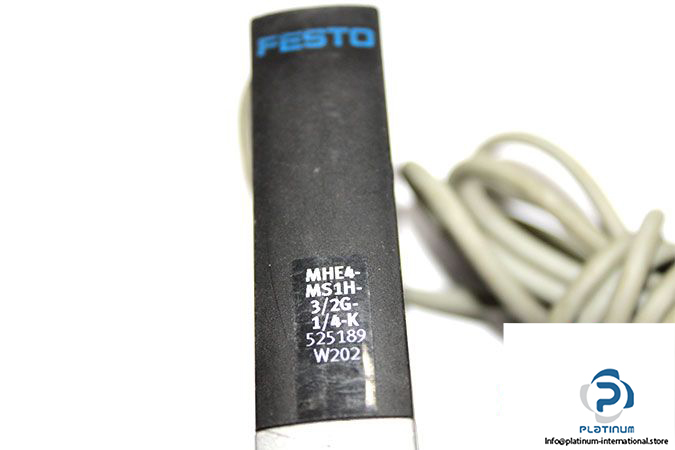

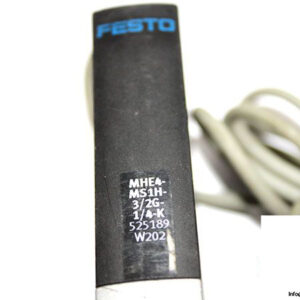

Model: MHE4-MS1H-3/2G-1/4-K
Part No.: 525189
Technical Information
- Fluid: Air
- Design: Pressure-relieved poppet valve

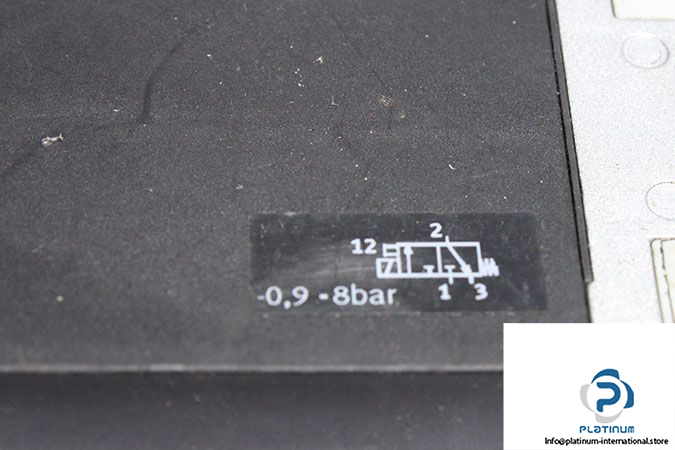

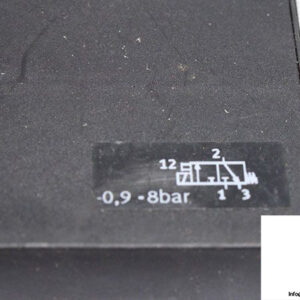

- Function: 3/2-way, closed, monostable
- Type of Actuation: Electrically
- Operating Pressure: -0.9 to 8 bar
- Nominal Flow Rate: 400 l/min
- Pneumatic Connection: G1/4
- Material: Die-cast zinc, coated
- Ambient Temperature: -5 to 60 °C

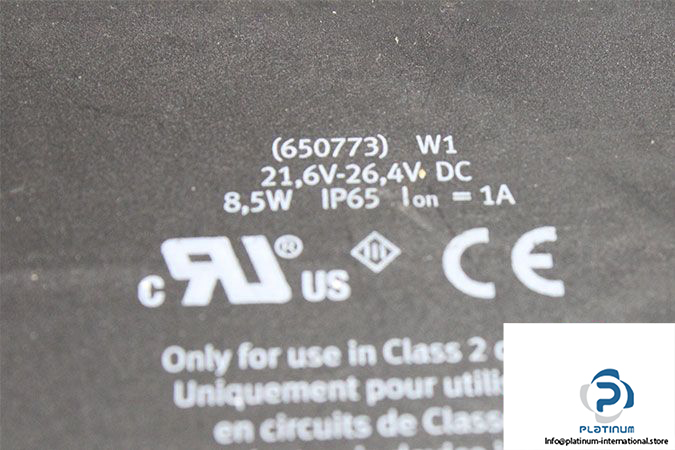

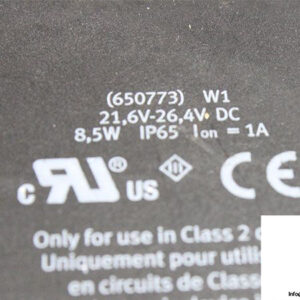

Attachment: FESTO 650773 SOLENOID COIL
Manufacturer: FESTO
Type: Solenoid Coil
Model: 650773
- Supply Voltage: 21.6 to 26.4 V DC
- Power Consumption: 8.5 W
- Protection Class: IP65
