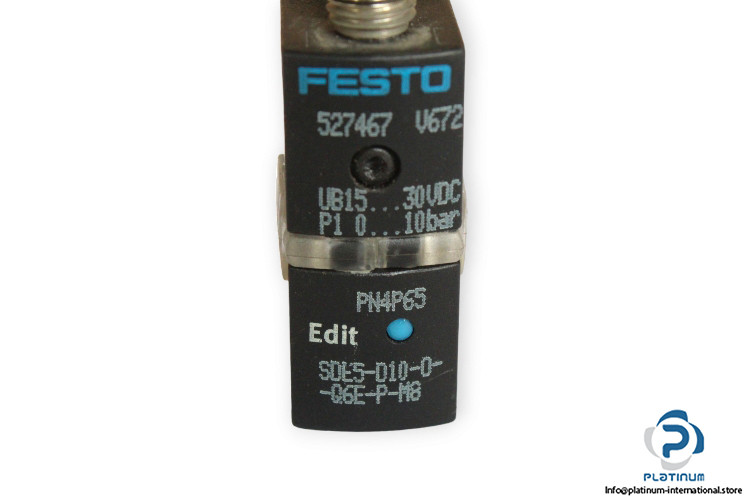

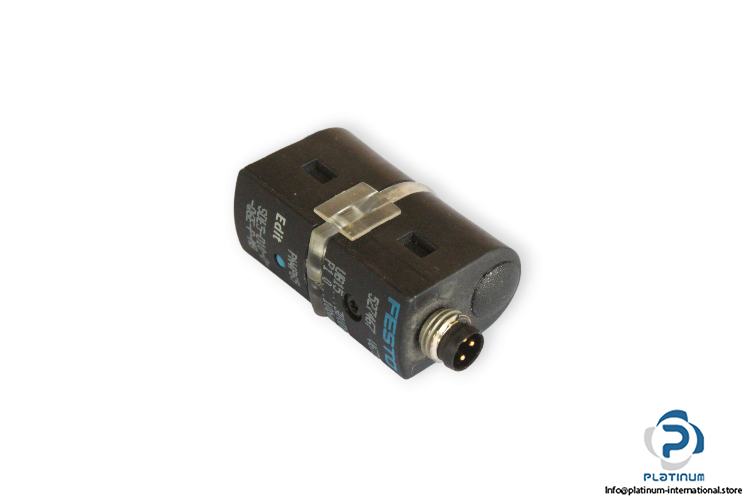

Manufacturer: FESTO
Type: Pressure sensor
Model: SDE5-D10-O-Q6E-P-M8
Part No.: 527467
Pressure measuring range initial value: 0 bar
Pressure measuring range end value: 10 bar
Operating medium: Compressed air
Ambient temperature: 0 °C … 50 °C
Repetition accuracy in ± %FS: 0.3 %FS
Temperature co-efficient in ± %FS/K: 0.05 %FS/K
Switching output: PNP
Switching function: Threshold value with fixed hysteresis
Switching element function: N/O contact
Max. output current: 100 mA
DC operating voltage range: 15 V … 30 V
Pneumatic connection: QS-6
