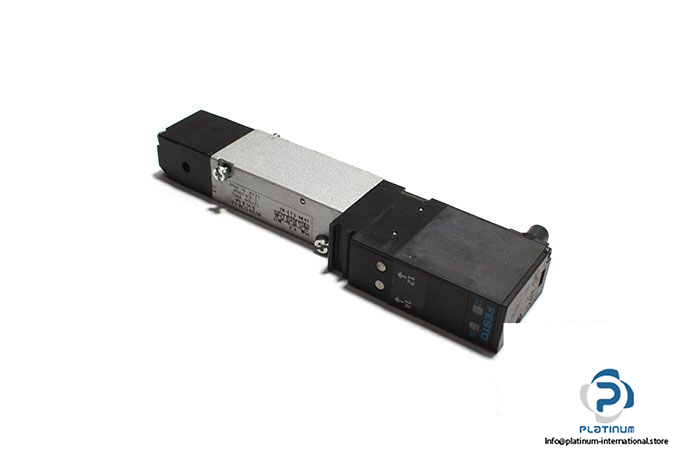

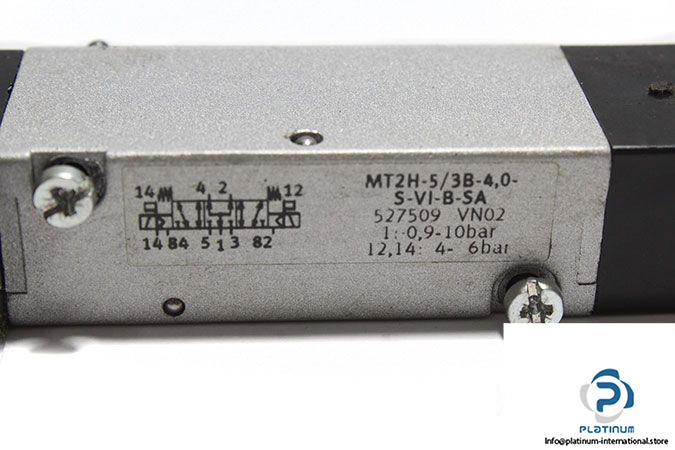

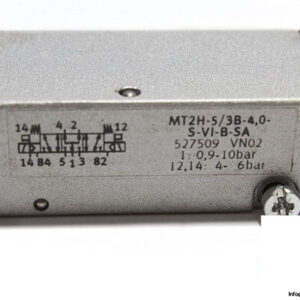

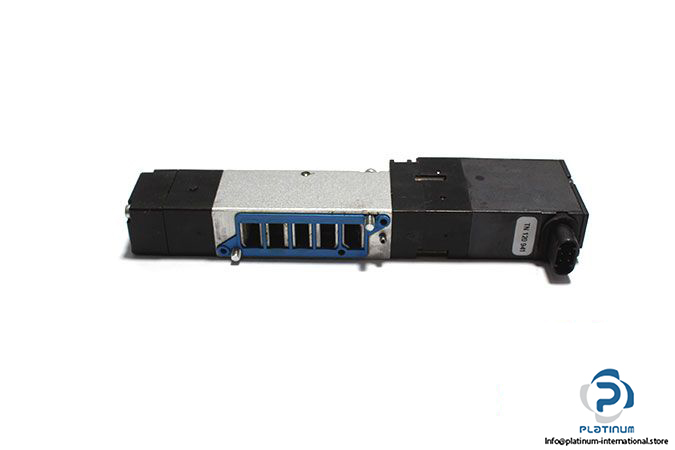

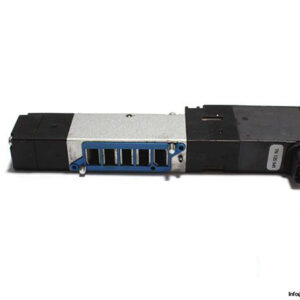

FESTO MT2H-5/3B-4,0-S-VI-B-SA SINGLE SOLENOID VALVE
The FESTO MT2H-5/3B-4,0-S-VI-B-SA is a high-performance single solenoid valve engineered for reliable pneumatic applications. With its 5/3-way pressurized design and durable aluminum die-cast construction, it provides efficient flow control and robust operational life.
Manufacturer: FESTO
Type: Single Solenoid Valve
Model: MT2H-5/3B-4,0-S-VI-B-SA
Part No.: 527509
Technical Information
- Fluid: Air
- Design: Piston slide
- Function: 5/3-Way pressurized
- Type of Actuation: Electrically
- Operating Pressure: -0.9 … 10 bar
- Pilot Pressure: 4 … 6 bar
- Nominal Flow Rate: 500 l/min
- Supply Voltage: 24 V DC
- Pneumatic Connection: Subbase
- Material: Aluminum die cast
- Ambient Temperature: -5 / 50 °C
