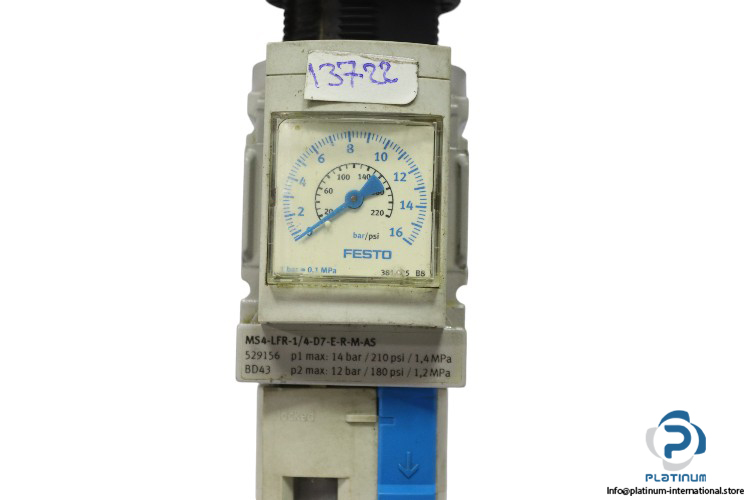

FESTO MS4-LFR-1/4-D7-ERM-AS FILTER REGULATOR

The FESTO MS4LFR14D7ERMAS Filter Regulator is a high-performance unit designed for precise pressure regulation and effective filtration in pneumatic systems. Engineered for reliability and efficiency, it supports a wide range of applications using compressed air or inert gases, and ensures consistent output with durable construction and high flow capacity.

Manufacturer: FESTO

Type: Filter Regulator

Model: MS4-LFR-1/4-D7-ERM-AS

Part No.: 529156

Fluid: Compressed Air / Inert Gases

Filtration Grade: 40 micro

Pressure Regulation Range: 0.5 / 12 bar

Operating Pressure: 0.8 / 14 bar

P1 Max.: 14 bar / 210 PSI / 1.4 MPa

P2 Max.: 12 bar / 180 PSI / 1.2 MPa

Nominal Flow Rate: 1500 l/min

Pneumatic Connection: G 1/4

Material: Die-Cast Zinc
