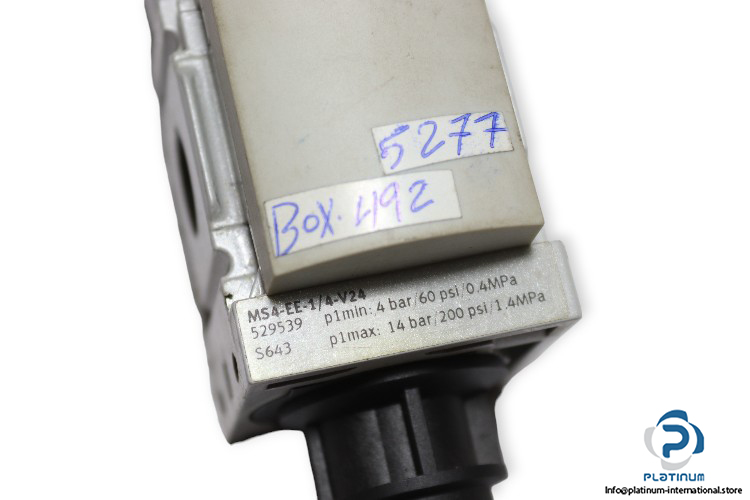

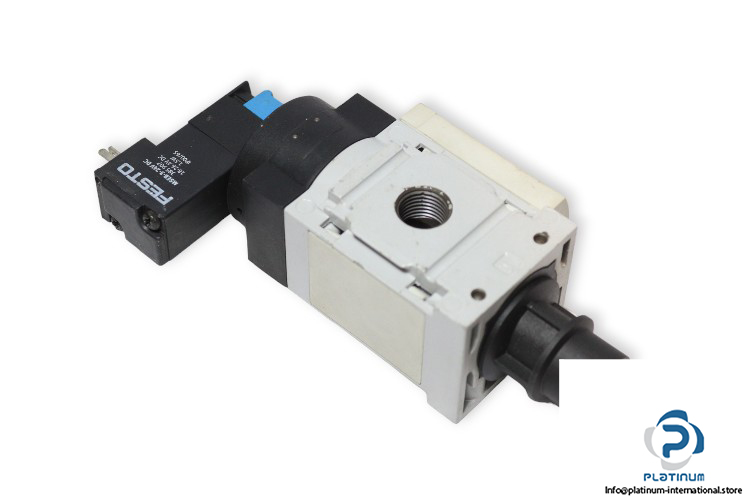

FESTO MS4-EE-1/4-V24 START VALVE WITH SOLENOID COIL

The FESTO MS4-EE-1/4-V24 start valve is a high-performance component designed for pneumatic systems that require reliable, electrically actuated air flow control. Engineered with a piston slide design and 3/2 monostable function, it ensures safe and controlled pressurization. Includes FESTO MSEB-3-24V DC solenoid coil for optimized operation.

Manufacturer: FESTO
Type: Start Valve
Model: MS4-EE-1/4-V24
Part No.: 529539

Valve Technical Information

• Fluid: Air
• Design: Piston slide
• Function: 3/2 closed, monostable
• Type of Actuation: Electrically
• Operating Pressure: 4 … 14 bar
• Nominal Flow Rate: 2000 l/min
• Pneumatic Connection: G1/4
• Material: Die-cast aluminum
• Ambient Temperature: -10 … 60 °C

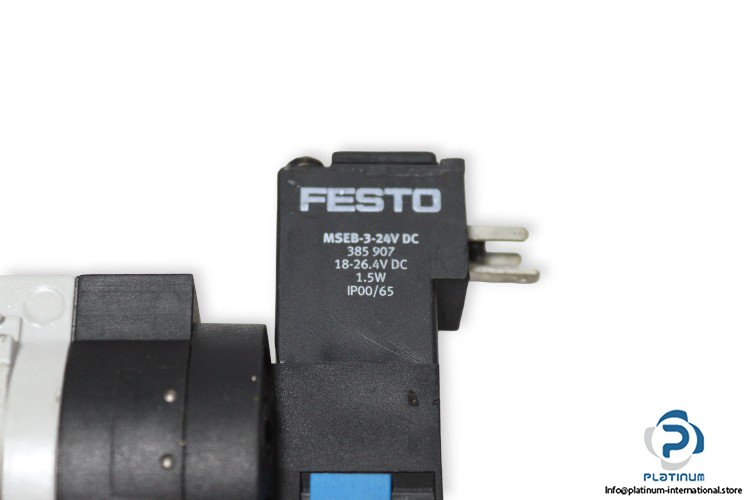

Solenoid Coil Attachment: FESTO MSEB-3-24V DC

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSEB-3-24V DC
Part No.: 385907

Coil Technical Information

• Supply Voltage: 18 … 26.4 V DC
• Power Consumption: 1.5 W
• Protection Class: IP00 / IP65
