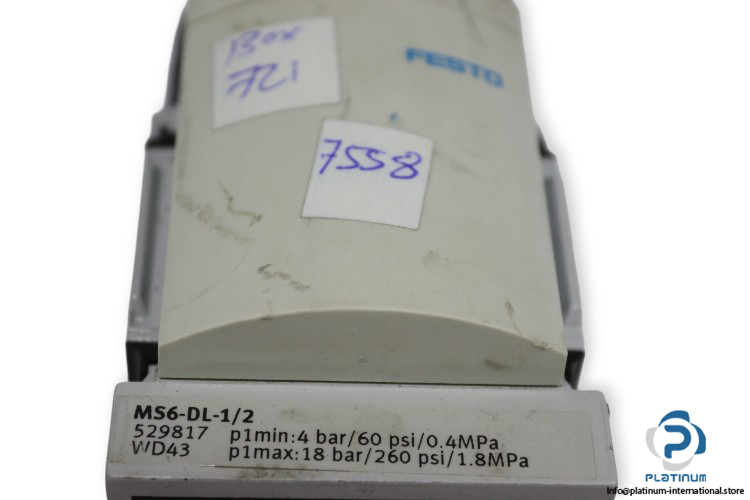

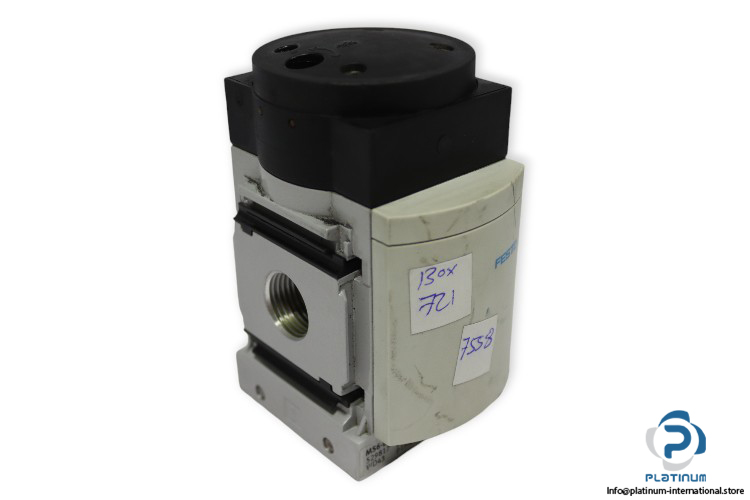

FESTO MS6-DL-1/2 SOFT START VALVE
The FESTO MS6-DL-1/2 soft start valve is engineered for controlled pressurization of pneumatic systems, ensuring smooth and safe start-up operations. Its robust piston seat design and die-cast aluminum construction deliver high flow capacity and long-term reliability in demanding industrial environments.
Manufacturer: FESTO
Type: Soft Start Valve
Model: MS6-DL-1/2
Part No.: 529817
Technical Information
- Fluid: Air
- Design: Piston seat
- Valve Function: 2/2 way
- Type of Actuation: Pneumatically
- Operating Pressure: 4 … 18 bar
- Nominal Flow Rate: 6450 l/min
- Pneumatic Connection: G1/2
- Material: Die-cast aluminum
- Ambient Temperature: -10 / 60 °C
