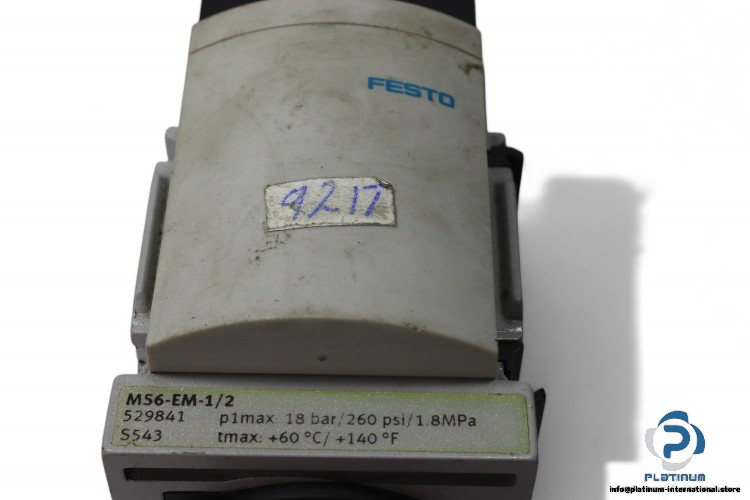

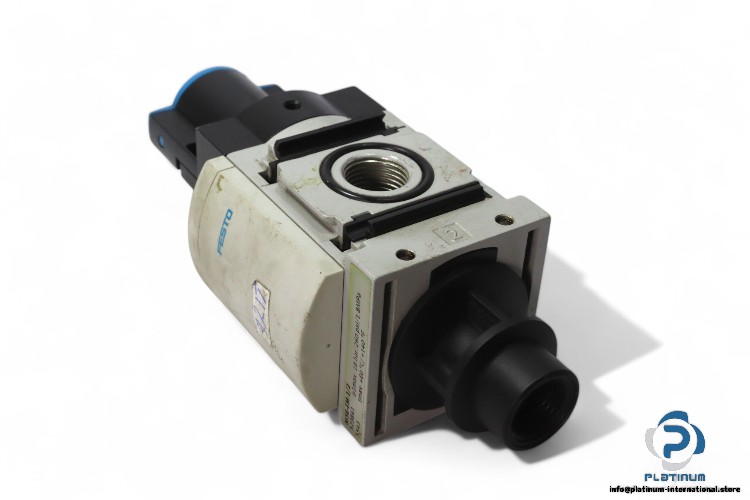

FESTO Start Valve – MS6-EM-1/2
The FESTO Start Valve MS6-EM-1/2 is an efficient and reliable valve designed for controlling the flow of compressed air in industrial systems. It features manual actuation and direct piloting for fast response and high control precision. With a maximum pressure rating of 18 bar and a nominal flow rate of 7,000 l/min, this valve is ideal for high-performance applications.
🔧 Technical Specifications:
- Manufacturer: FESTO
- Type: Start Valve
- Model: MS6-EM-1/2
- Part No.: 529841
- Fluid: Compressed Air
- Actuation Type: Manual
- Piloting Type: Direct
- Pilot Air Supply: Internal
- Flow Direction: Non-Reversible
- P1 Max.: 18 bar / 260 PSI / 1.8 MPa
- Nominal Flow Rate: 7,000 l/min
- Operating Pressure Range: 0 to 18 bar
- Temperature: -10 to 60 °C
- Port Size: G 1/2
- Material: Die-Cast Aluminium
