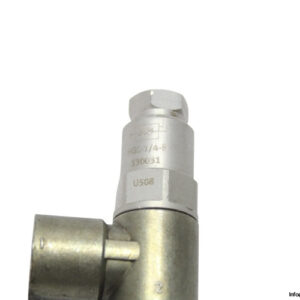

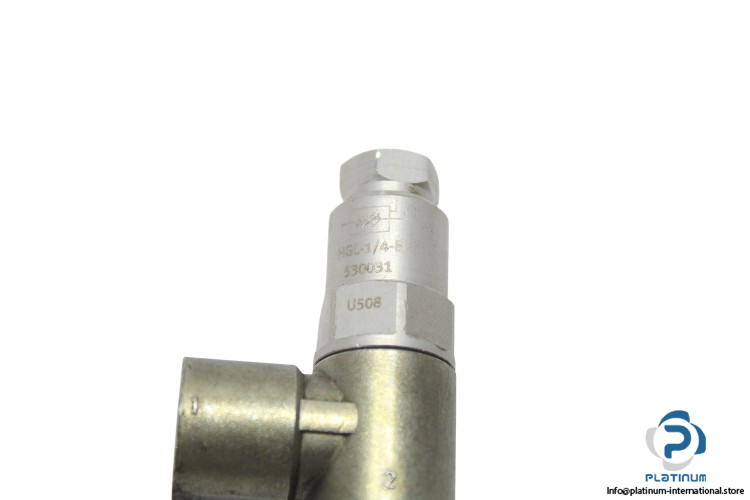

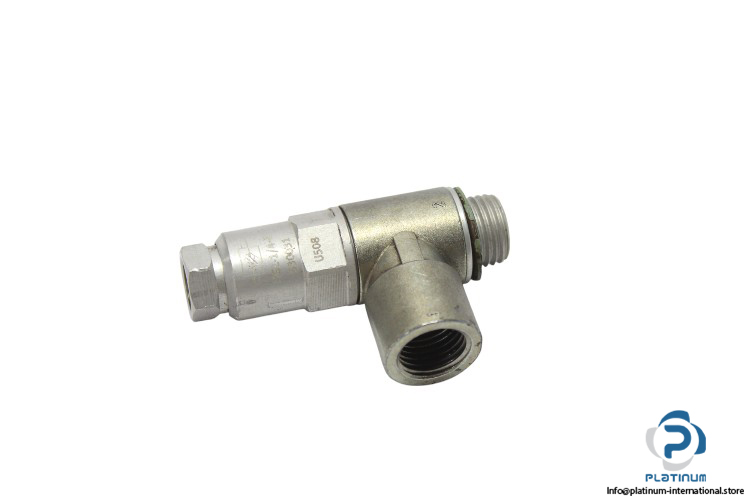

Festo HGL-1/4-B Piloted Non-Return Valve
The Festo HGL-1/4-B is a high-quality piloted non-return valve designed for secure and reliable flow control in pneumatic systems. It features G1/4 pneumatic connections, operates under a pressure range of 0.5 bar to 10 bar, and comes with a screw-in mounting option for easy installation.
Manufacturer: FESTO
Type: Piloted Non-Return Valve
Model: HGL-1/4-B
MRN: 530031
Technical Data:
- Pneumatic Connection 1: G1/4
- Pneumatic Connection 2: G1/4
- Operating Pressure: 0.5 bar – 10 bar
- Type of Mounting: Screw-in – With external thread
- Hollow Bolt Material: Wrought aluminum alloy anodized
