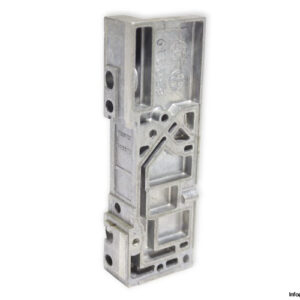

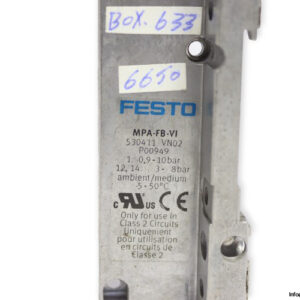

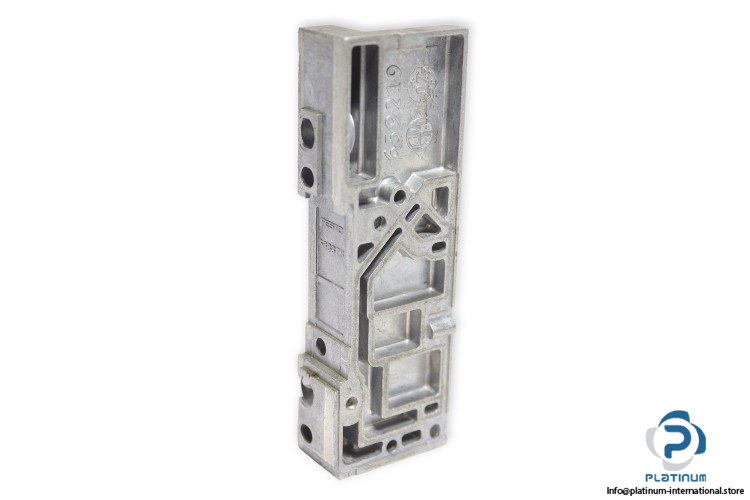

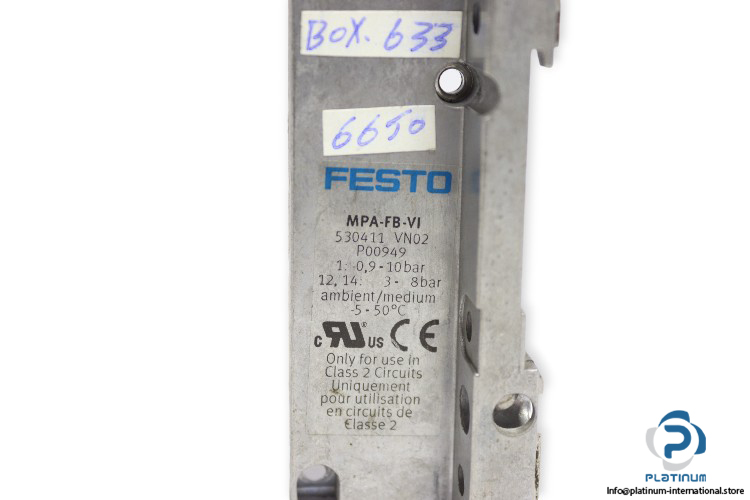

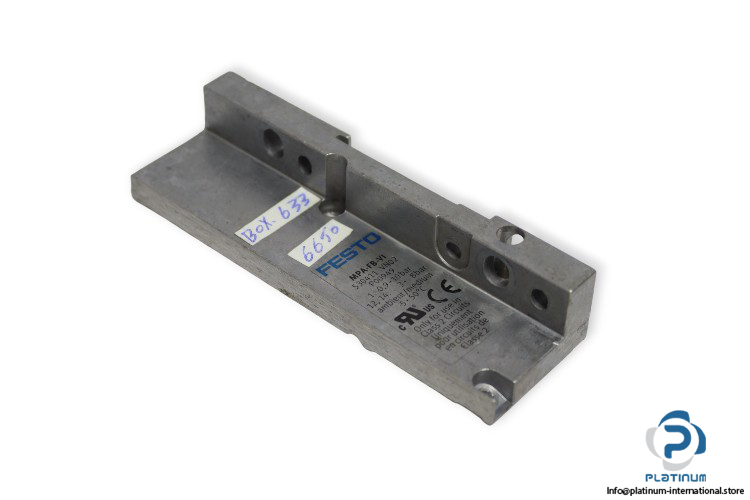

FESTO MPA-FB-VI VALVE TERMINAL

The FESTO MPAFBVI valve terminal is a modular and powerful solution designed for complex pneumatic automation systems. Offering electrical multi-pin actuation and compatibility with up to 64 valve positions and 17 pressure zones, it ensures superior scalability and performance.

Manufacturer: FESTO
Type: Valve Terminal
Model: MPA-FB-VI
Part No.: 530411

Technical Information

• Fluid: Air
• Actuation Type: Electrically
• Valve Terminal Type: 32
• Max. Valve Positions: 64
• Max. Pressure Zones: 17
• Valve Size: 14 mm
• Electrical Connection: Multi-pin
• Operating Pressure: -0.9 / 10 bar
• Pilot Pressure: 3 / 8 bar
• Electrical Actuation: Multi-pin
• Nominal Operating Voltage: 24 V DC
• Nominal Flow Rate Max.:
  • 360 l/min at 10 mm
  • 550 l/min at 14 mm
  • 700 l/min at 20 mm
• Ambient Temperature: -5 / 50 °C
