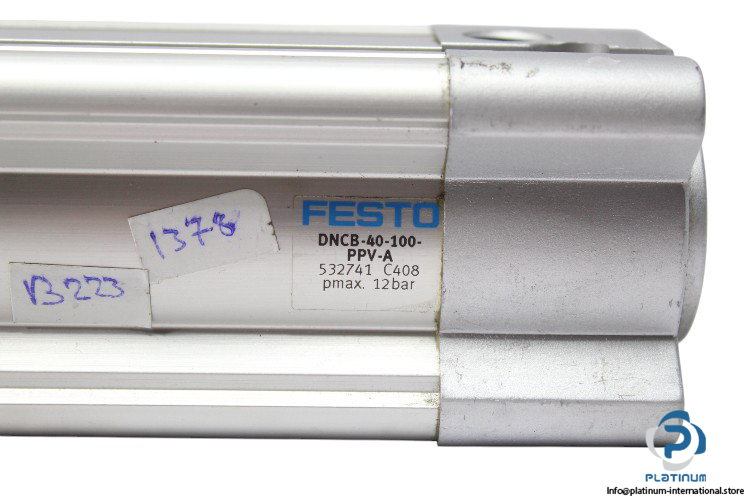

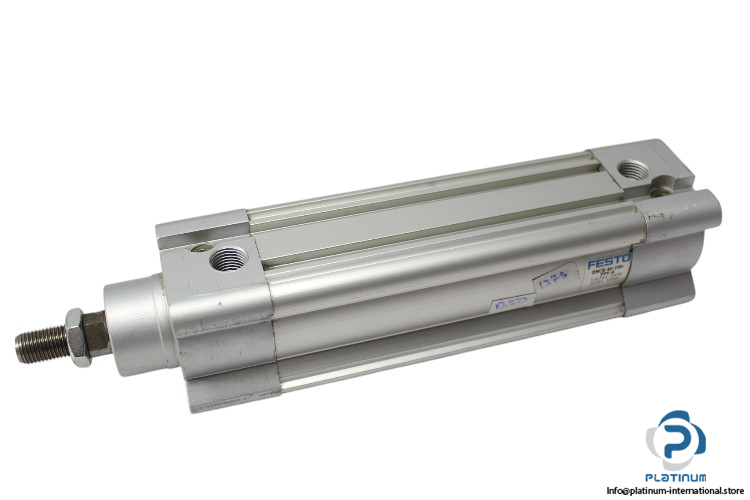

FESTO DNCB-40-100-PPV-A ISO CYLINDER

The FESTO DNCB-40-100-PPV-A ISO Cylinder is a high-performance pneumatic actuator engineered for precision and durability. With a robust square design, it is ideal for industrial automation systems requiring consistent force, compact installation, and reliable operation. Its double-acting functionality and one-sided rod extension offer smooth linear motion across various applications.

Manufacturer: FESTO

Type: ISO Cylinder

Model: DNCB-40-100-PPV-A

Part No.: 532741

Media: Compressed Air

Bore Diameter: 40 mm

Stroke: 100 mm

Bore x Stroke: 40 x 100 mm

Rod Diameter: 16 mm

Frame Dimensions: 53 x 230 mm

Pneumatic Connection: G 1/4

Pressure Max.: 12 bar

Operation Mode: Double

Piston Rod End: Male

Shape: Square

Rod Direction: One Side
