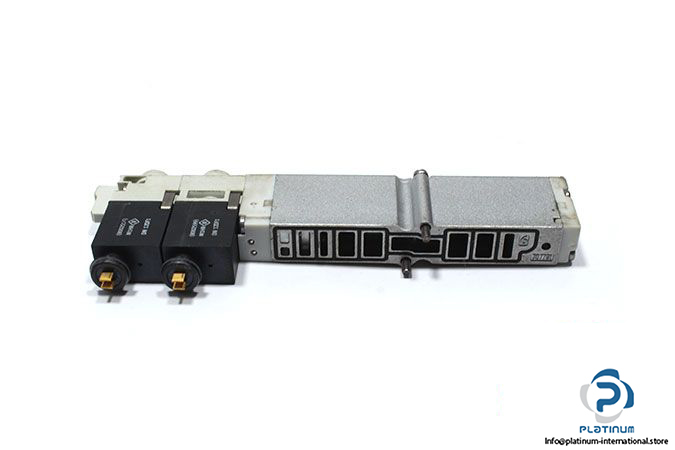

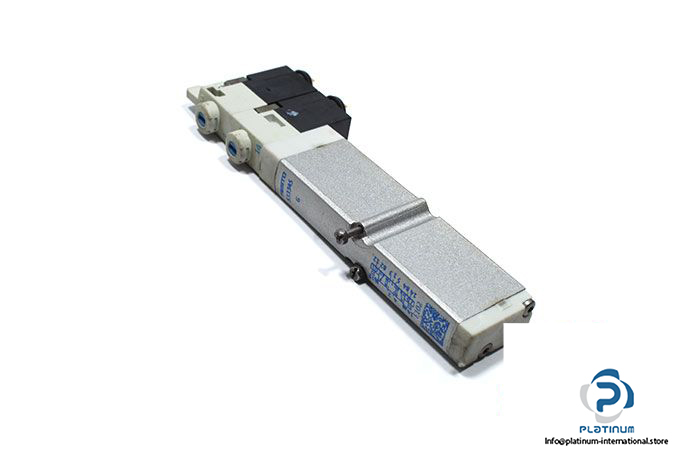

FESTO VMPA1-M1H-G-PI DOUBLE SOLENOID VALVE WITH COILS

The FESTO VMPA1-M1H-G-PI is a high-performance double solenoid valve designed for precise pneumatic control in demanding industrial applications. Featuring a 5/3 closed function and piston gate valve design, it ensures reliable air flow management. This unit includes FESTO solenoid coils (Part No. 8002599 and 8002598) for efficient electrical actuation.

Manufacturer: FESTO
Type: Double Solenoid Valve
Model: VMPA1-M1H-G-PI

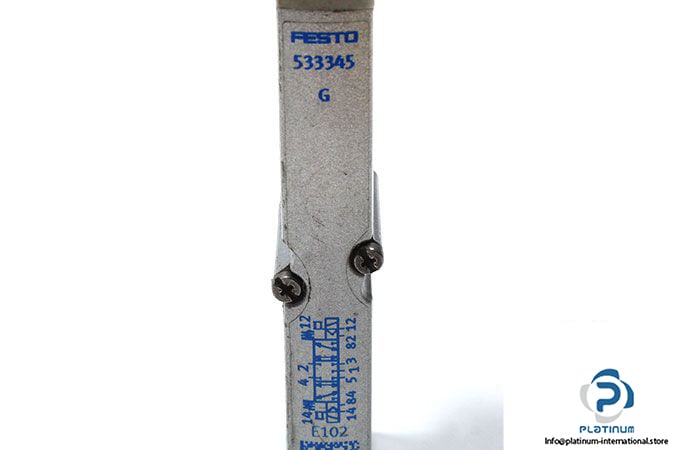

Part No.: 533345

Technical Information

• Fluid: Air
• Design: Piston gate valve
• Function: 5/3 closed
• Type of Actuation: Electrically
• Operating Pressure: -0.9 … 10 bar
• Pilot Pressure: 3 … 8 bar
• Nominal Flow Rate: 320 l/min
• Pneumatic Connection: Sub-Base
• Material: Aluminum
• Ambient Temperature: -5 / 50 °C

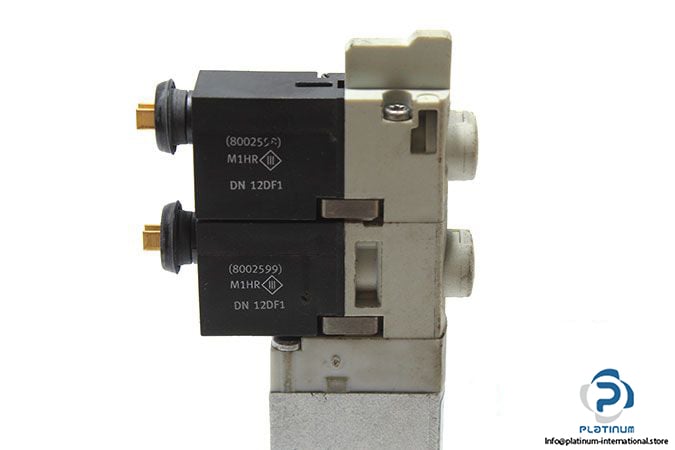

Attachments: Solenoid Coils

• FESTO 8002599 SOLENOID COIL
  Supply Voltage: 15 V DC
  Power Consumption: 1 W
• FESTO 8002598 SOLENOID COIL
  Supply Voltage: 15 V DC
  Power Consumption: 1 W
