Festo VMPA1-M1H-K-PI “ Air Solenoid Valve
The Festo VMPA1-M1H-K-PI air solenoid valve provides precise control for compressed air systems, with electrically actuated operation and a piston gate valve design. Offering a flow rate of 230 l/min, it operates within a pressure range of 3 to 8 bar and is built for reliability in industrial environments.
- Manufacturer: Festo
- Type: Air Solenoid Valve
- Model: VMPA1-M1H-K-PI
- Part No: 533347
Technical Information:
- Type of Actuation: Electrically

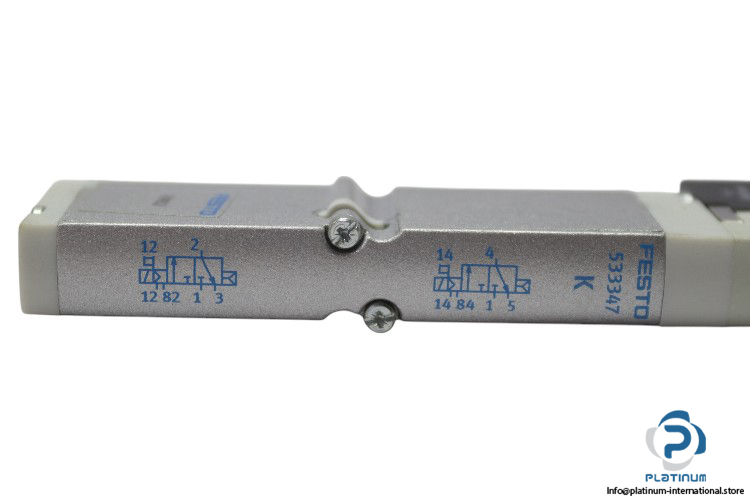

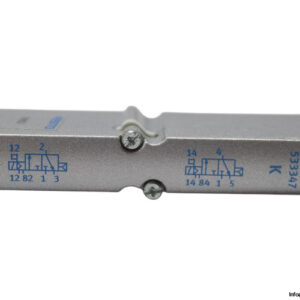

- Valve Function: 2×3/2, closed, monostable
- Operating Pressure: 3 to 8 bar
- Operating Medium: Compressed air
- Flow Rate: 230 l/min
- Design: Piston Gate Valve
- Ambient Temperature: -5 to 50 °C
- Pneumatic Connection: Sub-based
- Material Seals: NBR
- Material Housing: Die-cast aluminum
