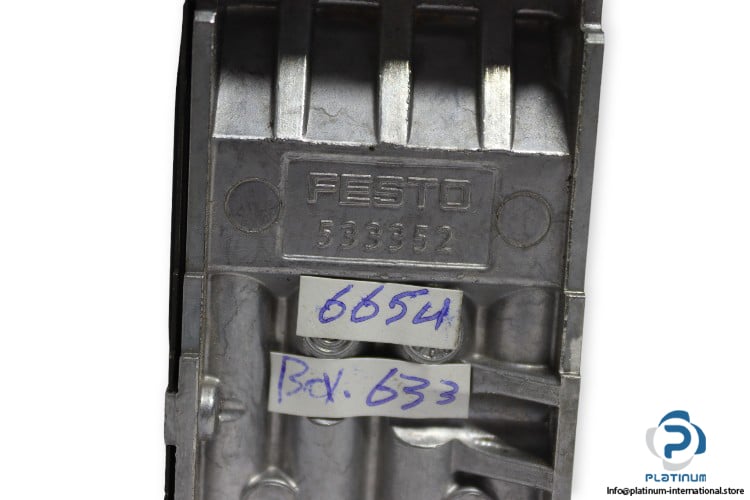

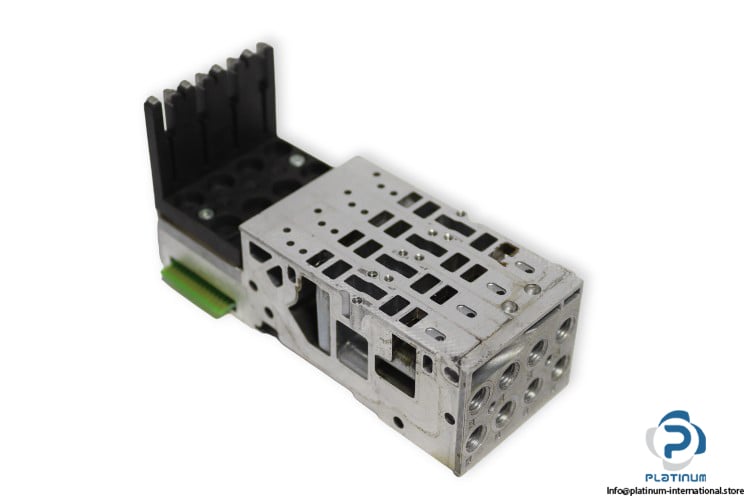

FESTO VMPA1-FB-AP-4-1 SUB-BASE WITH VMPA1-MPM-EMM-8 ELECTRONICS MODULE
The FESTO VMPA1-FB-AP-4-1 is a robust sub-base designed to support up to four valve positions in pneumatic systems. Paired with the FESTO VMPA1-MPM-EMM-8 electronics module, it offers enhanced control and reliable current regulation for solenoid actuation.
Manufacturer: FESTO
Type: Sub-Base
Model: VMPA1-FB-AP-4-1
Part No.: 533352
Sub-Base Technical Information
- Width: 42 mm
- Length: 107.3 mm
- Valve Positions No. Max.: 4
- Operating Pressure: -0.9 / 10 bar
- Pilot Pressure: 3 / 8 bar
- Pneumatic Connection: 7 mm
- Material of Sub-Base: Die-Cast Aluminum
- Temperature Range: -5 / 50 °C

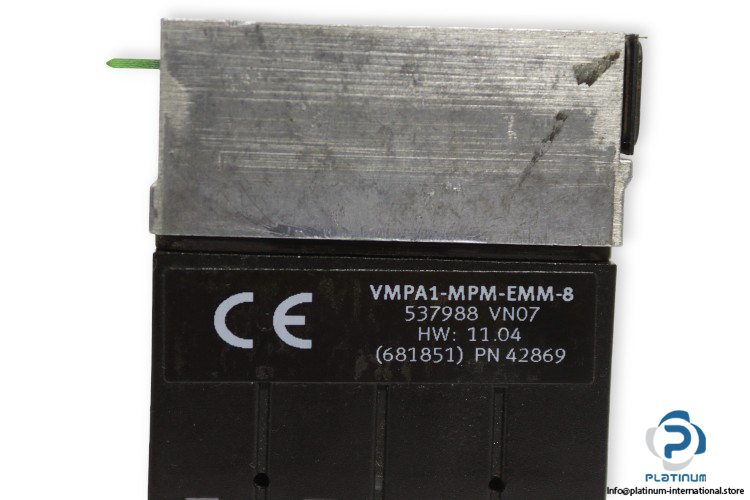

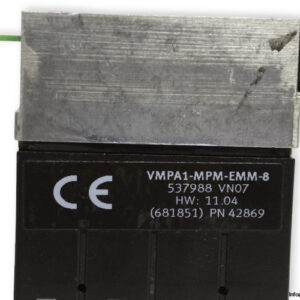

Attachment: FESTO 537988 ELECTRONICS MODULE
Manufacturer: FESTO
Type: Electronics Module
Model: VMPA1-MPM-EMM-8
Part No.: 537988
Electronics Module Technical Information
- Valve Positions No. Max.: 4
- Solenoid Coils No. Max.: 8
- Nominal Pick-Up Current Per Solenoid Coil: 80 mA to 25 ms
- Nominal Current with Current Reduction: 25 mA after 25 ms
- Housing Material: POM
