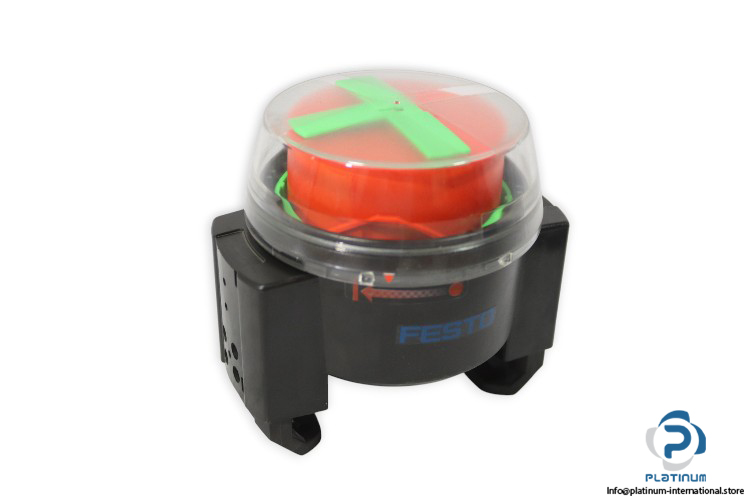

Festo DAPZ-SB-I-30DC-DR-AR Limit Switch Attachment

A durable and precise limit switch attachment designed for reliable position sensing in automation systems. Engineered with inductive measuring technology, strong environmental protection, and high electrical safety features, making it suitable for demanding industrial applications.
Manufacturer: Festo
Type: Limit Switch Attachment

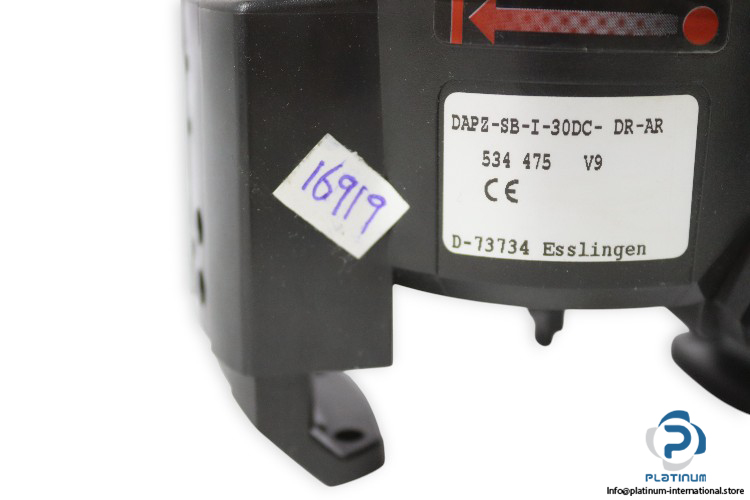

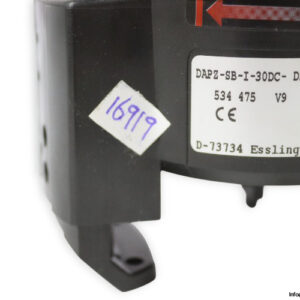

Model: DAPZ-SB-I-30DC-DR-AR
Part No.: 534 475
Code: V9

Technical Information

• Permissible Cable Diameter: 7 mm to 13 mm
• Design: Round
• Mounting Position: Optional
• Short Circuit Current Rating: Pulsed
• Switching Element Function: N/O Contact
• Reverse Polarity Protection: For all electrical connections
• Measuring Principle: Inductive
• Operational Voltage Range: 10 to 30 V DC
• Internal Current Consumption: 0 to 100 mA
• Insulation Voltage: 50 V
• Max. Output Current: 100 mA
• Switching Output: PNP
• Immunity to Surge: 0.5 kV
• Pollution Degree: 3
• Corrosion Resistance Class (CRC): 2 “ Moderate corrosion stress
• Degree of Protection: IP67
• Ambient Temperature: -20 to 70 °C
• Electrical Connection: Screw terminal
• Cable Fitting: M20x1.5
• Material Seals: NBR
• Material Housing Cover: PC
• Material Housing Socket: ABS+PC
• Material Console: ABS+PC
