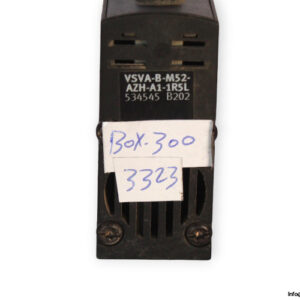

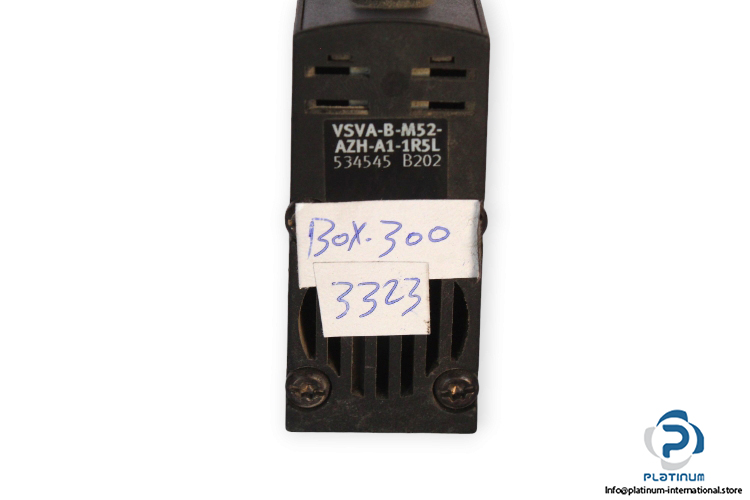

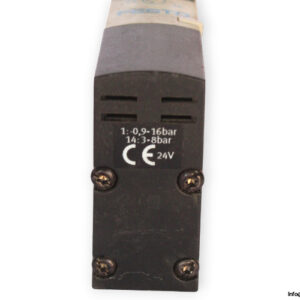

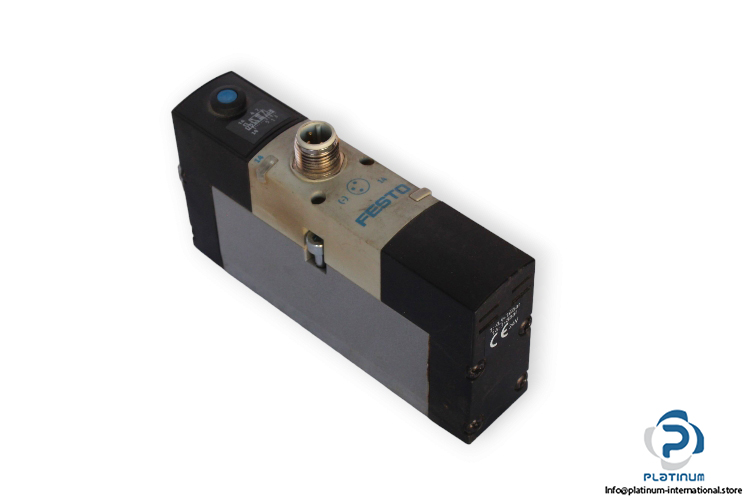

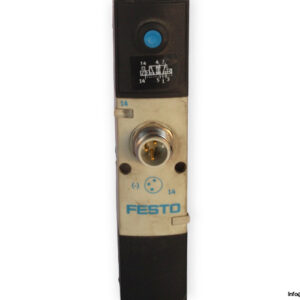

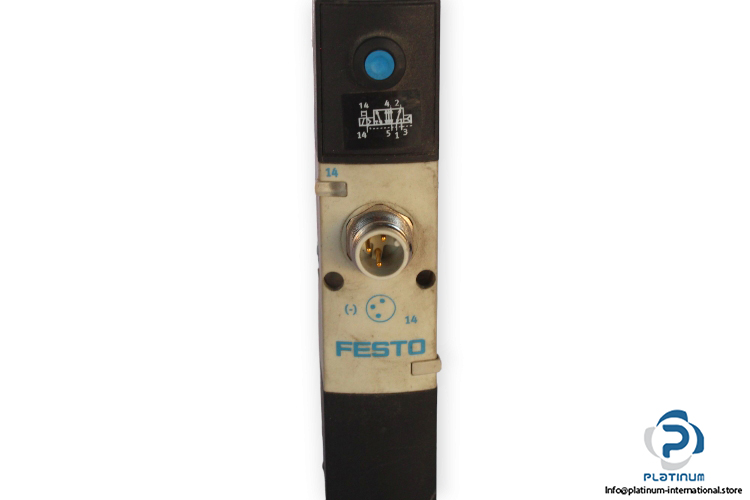

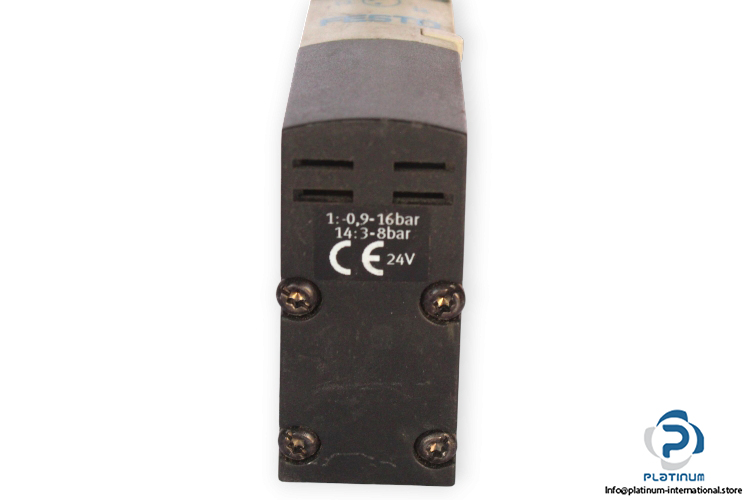

FESTO VSVA-B-M52-AZH-A1-1R5L AIR SOLENOID VALVE

The FESTO VSVABM52AZHA11R5L is a high-performance 5/2-way monostable air solenoid valve engineered for reliable and efficient pneumatic control. Its piston gate valve design, robust aluminum die-cast construction, and high nominal flow rate make it ideal for demanding industrial applications.

Manufacturer: FESTO
Type: Air Solenoid Valve
Model: VSVA-B-M52-AZH-A1-1R5L
Part No.: 534545

Technical Information

• Fluid: Air
• Design: Piston gate valve
• Valve Function: 5/2-way, monostable
• Type of Actuation: Electrically
• Operating Pressure: -0.9 to 16 bar
• Pilot Pressure: 3 to 8 bar
• Nominal Flow Rate: 1100 l/min
• Supply Voltage: 24 V DC
• Pneumatic Connection: Sub-base size 26 mm
• Material: Aluminum die cast
• Ambient Temperature: -5 to 50 °C
