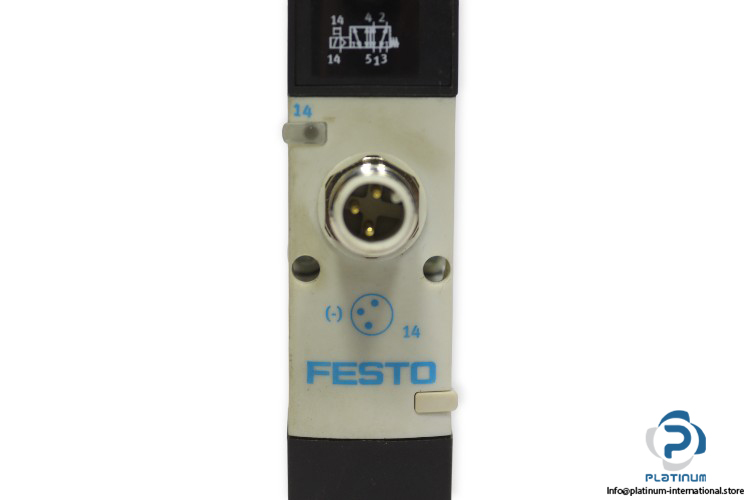

FESTO VSVA-B-M52-MZH-A1-1R5L SINGLE SOLENOID VALVE
The FESTO VSVA-B-M52-MZH-A1-1R5L is a high-performance single solenoid valve engineered for reliable air control in industrial pneumatic systems. Built with a piston gate design and robust die-cast aluminum body, this valve ensures long-term durability and efficiency in demanding applications.
Manufacturer: FESTO
Type: Single Solenoid Valve

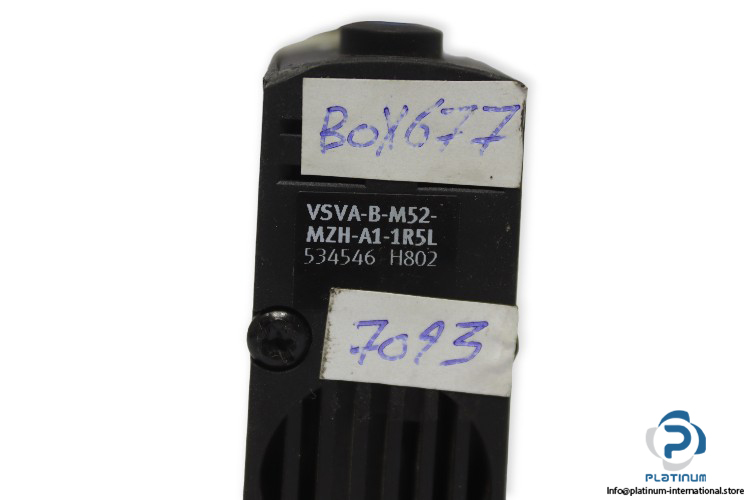

Model: VSVA-B-M52-MZH-A1-1R5L
Part No.: 534546
Technical Information
- Fluid: Air
- Design: Piston gate valve
- Function: 5/2-way, monostable
- Type of Actuation: Pneumatically
- Operating Pressure: -0.9 … 16 bar
- Pilot Pressure: 3 … 8 bar
- Nominal Flow Rate: 1100 l/min
- Pneumatic Connection: Sub-base size 26 mm
- Material: Die-cast aluminum
- Ambient Temperature: -5 / 50 °C
