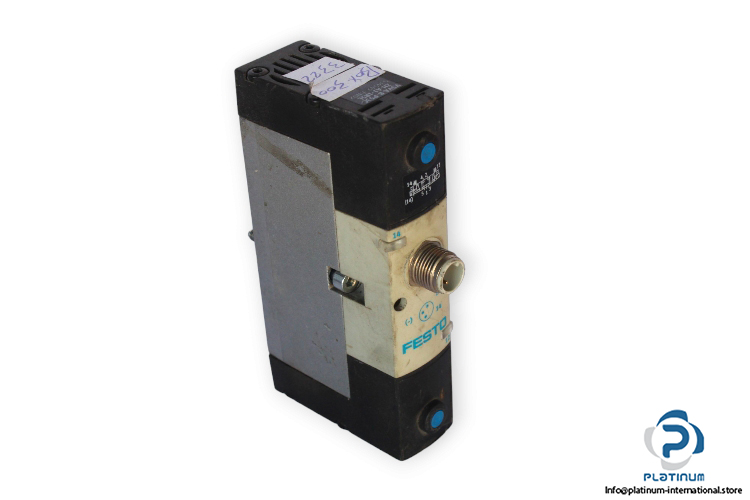

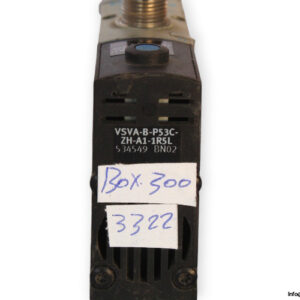

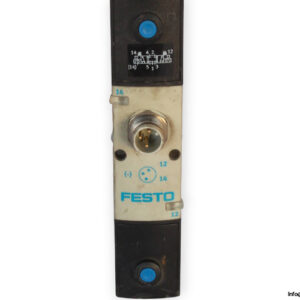

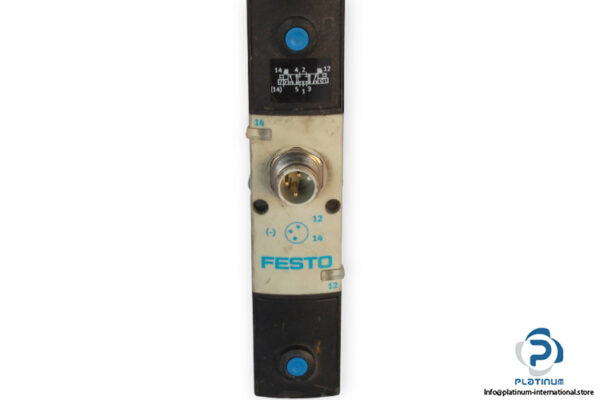

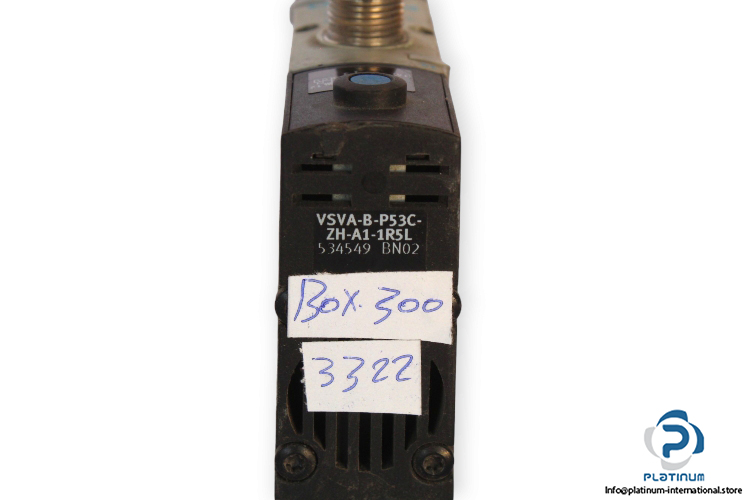

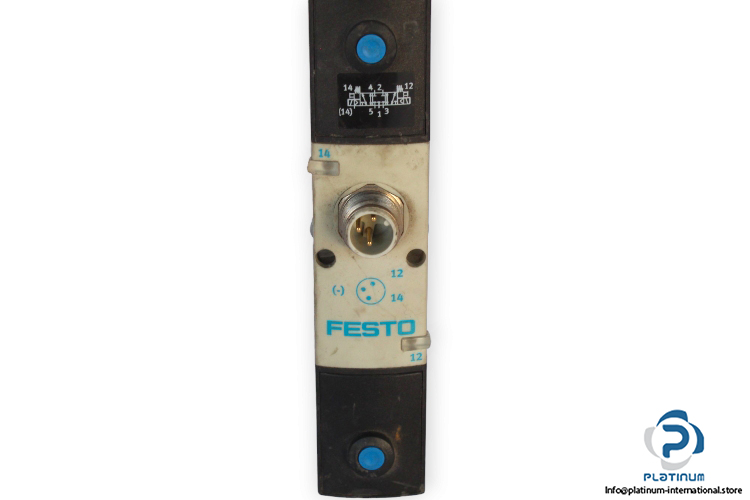

FESTO VSVA-B-P53C-ZH-A1-1R5L AIR SOLENOID VALVE
The FESTO VSVA-B-P53C-ZH-A1-1R5L is a high-performance air solenoid valve engineered for advanced pneumatic systems. Designed with a piston gate structure and 5/3 closed function, it provides reliable flow control and rapid response in demanding automation environments.
Manufacturer: FESTO
Type: Air Solenoid Valve
Model: VSVA-B-P53C-ZH-A1-1R5L
Part No.: 534549
Technical Information
- Fluid: Air
- Design: Piston gate valve
- Valve Function: 5/3 closed
- Type of Actuation: Electrically
- Operating Pressure: -0.9 to 16 bar
- Pilot Pressure: 3 to 8 bar
- Nominal Flow Rate: 1000 l/min
- Supply Voltage: 24 V DC
- Pneumatic Connection: Sub-base size 26 mm
- Material: Aluminum die cast
- Ambient Temperature: -5 to 50 °C
