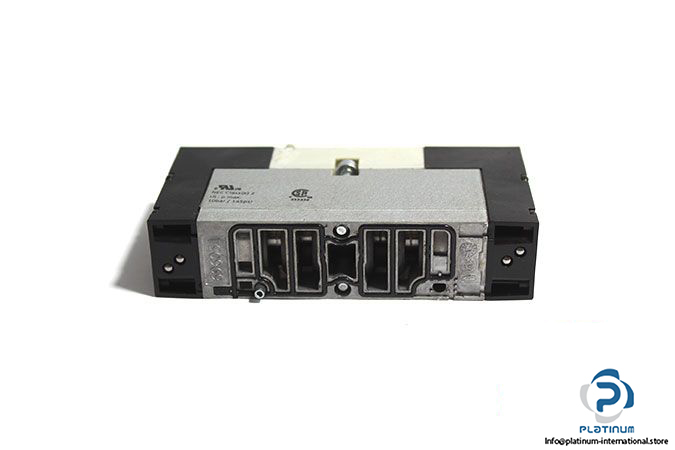

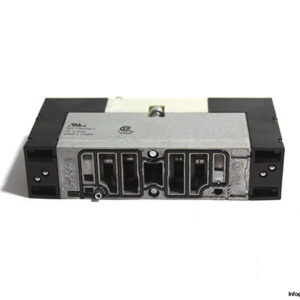

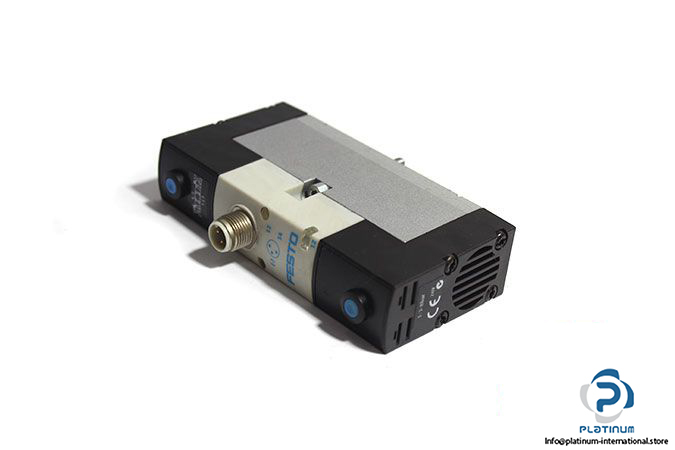

FESTO VSVA-B-P53C-H-A1-1R5L DOUBLE SOLENOID VALVE
The FESTO VSVA-B-P53C-H-A1-1R5L is a high-performance double solenoid valve engineered for precise control in pneumatic systems. With a robust piston gate design and 5/3-way monostable functionality, this valve ensures efficient air flow management under demanding industrial conditions.
Manufacturer: FESTO
Type: Double Solenoid Valve

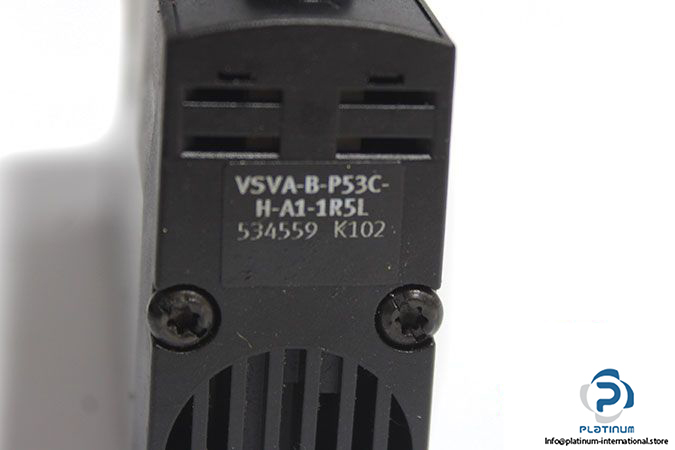

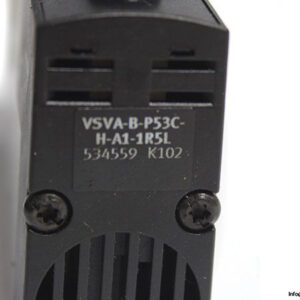

Model: VSVA-B-P53C-H-A1-1R5L
Part No.: 534559
Technical Information
- Fluid: Air
- Design Structure: Piston gate valve

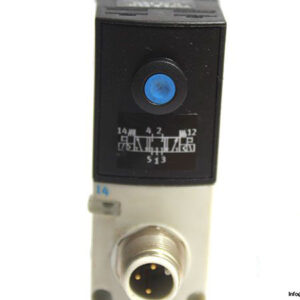

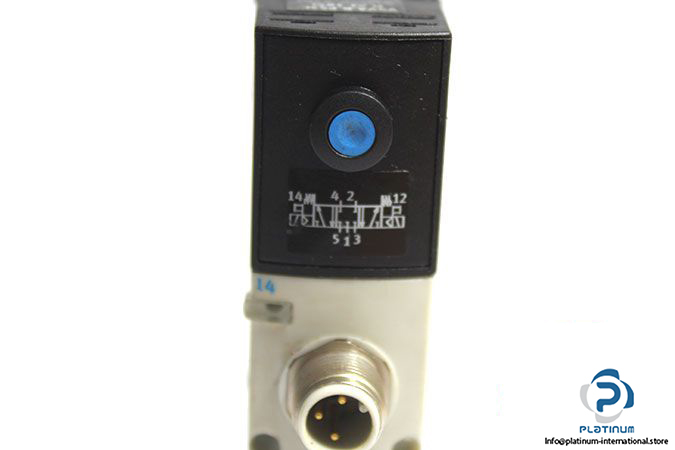

- Valve Function: 5/3-way, monostable
- Type of Actuation: Electrically
- Operating Pressure: 3 / 8 bar
- Nominal Flow Rate: 1000 l/min
- Supply Voltage: 24 V DC
- Pneumatic Connection: Sub-base size 26 mm
- Material: Die-cast aluminium
- Ambient Temperature: -5 / 50 °C
