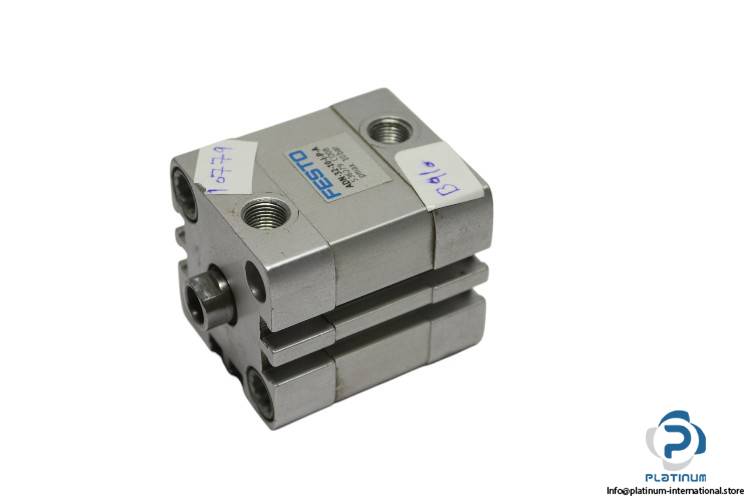

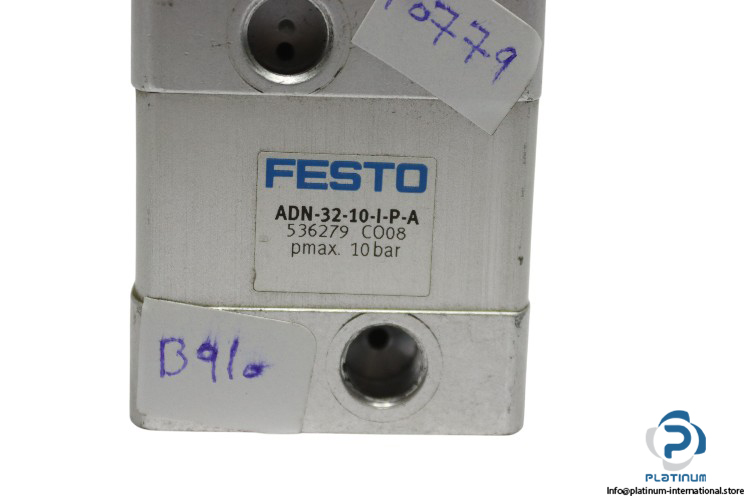

FESTO Compact Cylinder ADN-32-10-I-P-A

The FESTO Compact Cylinder ADN-32-10-I-P-A is a double-acting pneumatic cylinder designed for efficient and precise motion in compact spaces. With a piston diameter of 32 mm and a stroke length of 10 mm, this cylinder is ideal for applications requiring quick, high-performance linear motion. The cylinder barrel is made of wrought aluminum alloy with a smooth anodized finish, ensuring durability and resistance to wear. It features elastic cushioning rings/pads at both ends for smooth operation, and the piston rod thread is female for secure attachment in industrial systems. With a maximum operating pressure of 10 bar and a temperature range of -20 to 80 °C, it offers versatile and reliable performance in various environments.

Manufacturer: FESTO

Type: Compact Cylinder

Model: ADN-32-10-I-P-A

Part No.: 536279

Technical Specifications

• Stroke Length: 10 mm
• Piston Diameter: 32 mm
• Piston Rod Thread: Female
• Max. Operating Pressure: 10 bar
• Material of Cylinder Barrel: Wrought aluminum alloy, smooth-anodized
• Mode of Operation: Double acting
• Cushioning: Elastic cushioning rings/pads at both ends
• Position Sensing: For proximity sensing
• Variant: Piston rod at one end
• Pneumatic Connection: G1/8
• Temperature: -20 / 80 °C
