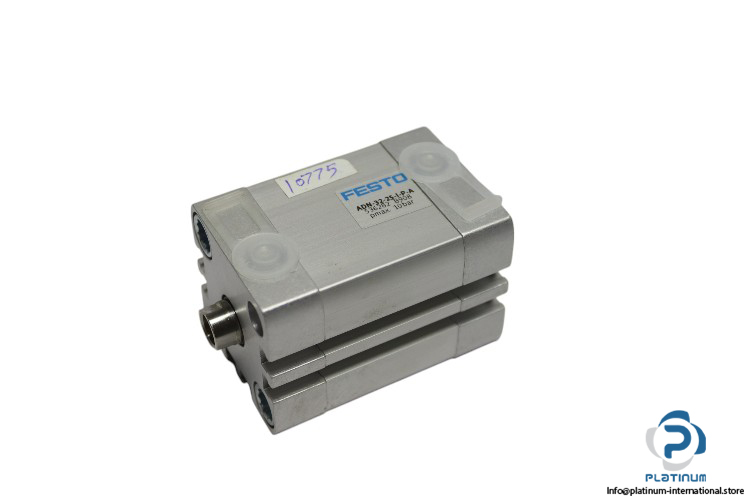

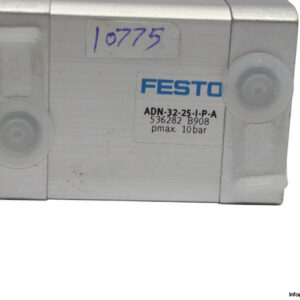

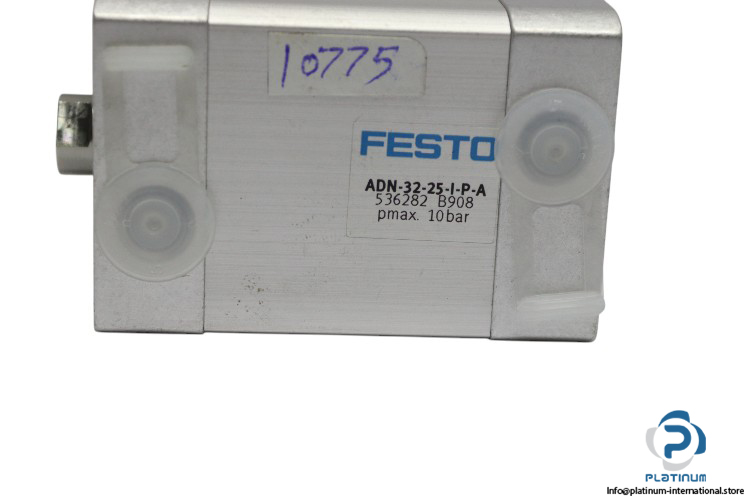

FESTO Compact Cylinder ADN-32-25-I-P-A

The FESTO Compact Cylinder ADN-32-25-I-P-A is designed for efficient and reliable motion control in pneumatic systems. Featuring a 25 mm stroke length and 32 mm piston diameter, this double-acting cylinder is equipped with elastic cushioning rings/pads at both ends for smooth operation. With a maximum operating pressure of 10 bar and a pneumatic connection size of G1/8, this cylinder offers precise actuation in a wide range of industrial applications. The piston rod thread is female, and the cylinder barrel is made of durable wrought aluminum alloy, ensuring reliability in harsh environments. This compact cylinder also supports position sensing for proximity sensing applications.

Manufacturer: FESTO

Type: Compact Cylinder

Model: ADN-32-25-I-P-A

Part No.: 536282

Technical Specifications

• Stroke Length: 25 mm
• Piston Diameter: 32 mm
• Piston Rod Thread: Female
• Max. Operating Pressure: 10 bar
• Mode of Operation: Double acting
• Cushioning: Elastic cushioning rings/pads at both ends
• Position Sensing: For proximity sensing
• Variant: Piston rod at one end
• Material of Cylinder Barrel: Wrought aluminum alloy
• Pneumatic Connection: G1/8
• Temperature: -20 / 80 °C
