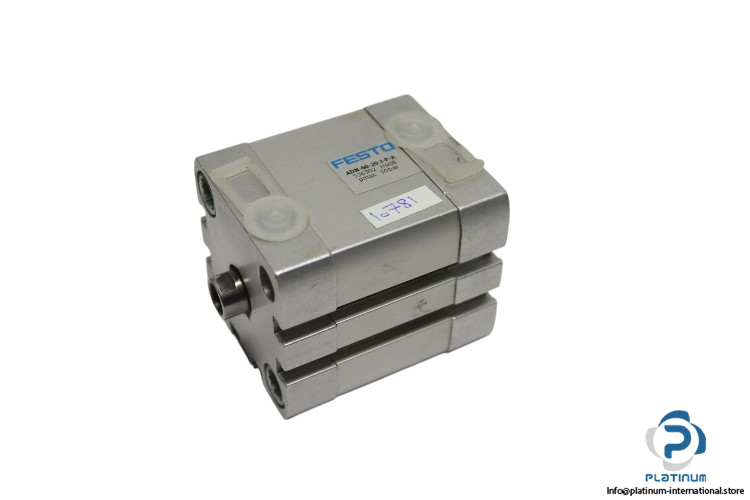

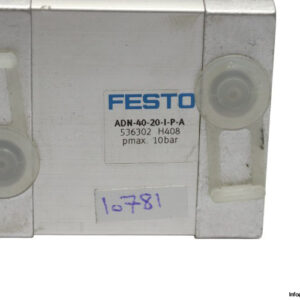

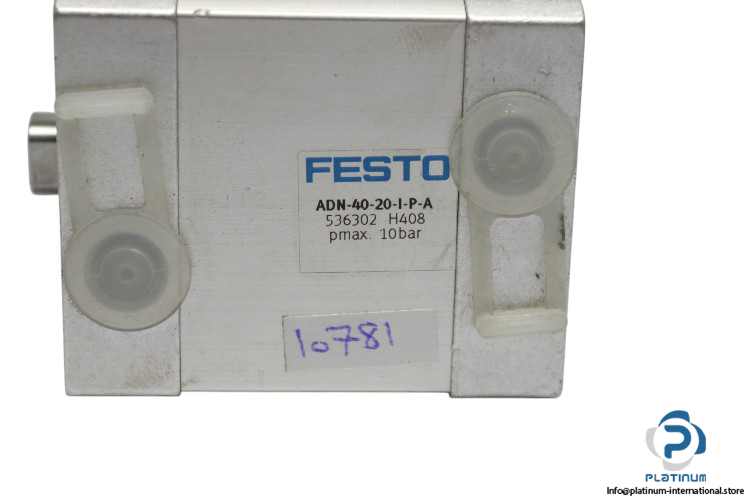

FESTO Compact Cylinder ADN-40-20-I-P-A
The FESTO Compact Cylinder ADN-40-20-I-P-A is designed for precise motion control in pneumatic systems. With a piston diameter of 40 mm and a stroke length of 20 mm, this double-acting cylinder is ideal for applications requiring compact and reliable actuation. It operates at a maximum pressure of 10 bar and features elastic cushioning rings/pads at both ends for smooth operation. The cylinder barrel is made from wrought aluminum alloy with a smooth anodized finish, ensuring durability and resistance to wear.
Manufacturer: FESTO
Type: Compact Cylinder
Model: ADN-40-20-I-P-A
Part No.: 536302
Technical Specifications
- Stroke Length: 20 mm
- Piston Diameter: 40 mm
- Piston Rod Thread: Female
- Max. Operating Pressure: 10 bar
- Mode of Operation: Double acting
- Material of Cylinder Barrel: Wrought aluminum alloy, smooth-anodized
- Cushioning: Elastic cushioning rings/pads at both ends
- Position Sensing: For proximity sensing
- Variant: Piston rod at one end
- Pneumatic Connection: G1/8
- Temperature: -20 / 80 °C
