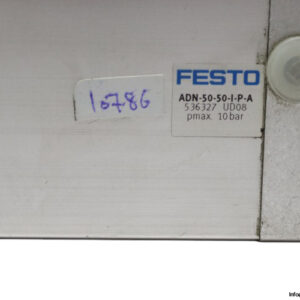

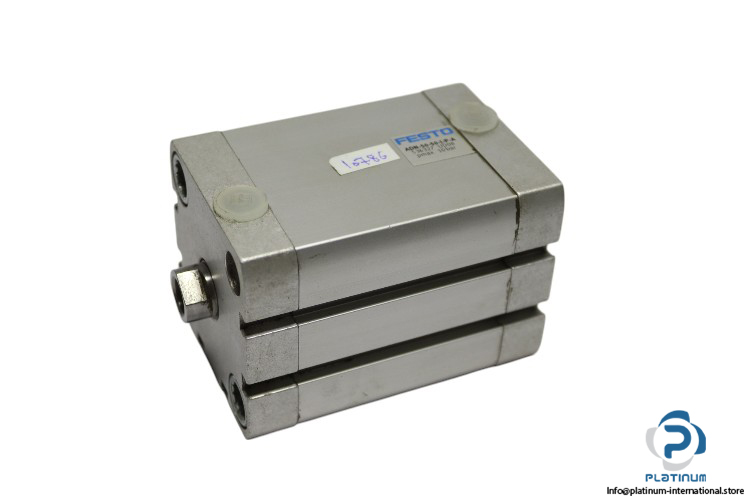

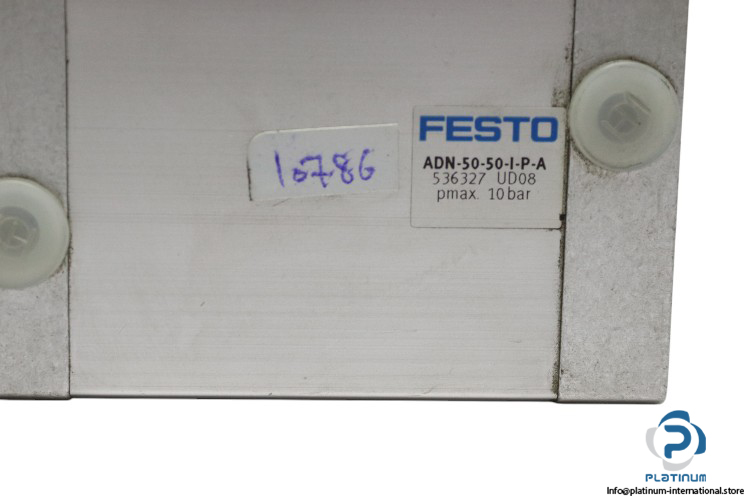

FESTO COMPACT CYLINDER

The Festo Compact Cylinder (Model: ADN-50-50-I-P-A, Part No.: 536327) offers reliable performance for pneumatic applications with a stroke length of 50 mm and a piston diameter of 50 mm. Designed for double acting operation, it provides precise control and cushioning for efficient movement. The cylinder features a smooth-anodized wrought aluminum alloy barrel and elastic cushioning rings/pads at both ends for optimal performance in varying industrial environments.

Manufacturer: Festo

Type: Compact Cylinder

Model: ADN-50-50-I-P-A

Part No.: 536327

Technical Specifications

• Stroke Length: 50 mm
• Piston Diameter: 50 mm
• Piston Rod Thread: Female
• Max. Operating Pressure: 10 bar
• Material of Cylinder Barrel: Wrought aluminum alloy, smooth-anodized
• Mode of Operation: Double acting
• Cushioning: Elastic cushioning rings/pads at both ends
• Position Sensing: For proximity sensing
• Variant: Piston rod at one end
• Pneumatic Connection: G1/8
• Temperature Range: -20 … 80 °C
