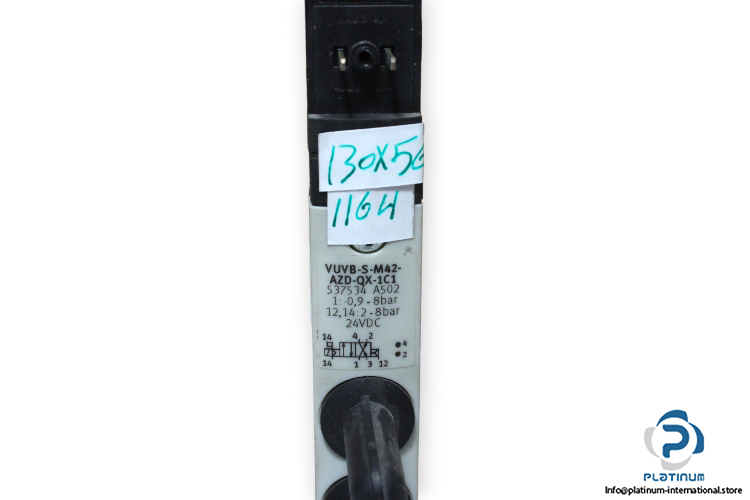

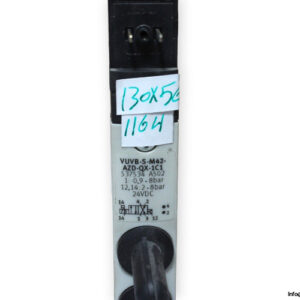

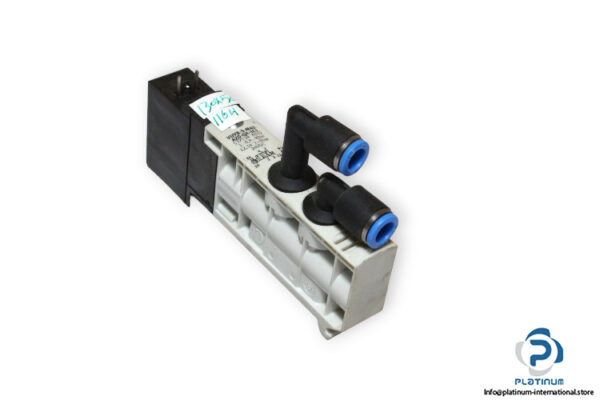

FESTO VUVB-S-M42-AZD-QX-1C1 AIR SOLENOID VALVE
The FESTO VUVBSM42AZDQX1C1 is a high-performance air solenoid valve engineered for precision and durability in automated pneumatic systems. Featuring a piston slide design and monostable 4/2 function, it is ideal for reliable and responsive flow control in industrial environments.
Manufacturer: FESTO
Type: Air Solenoid Valve
Model: VUVB-S-M42-AZD-QX-1C1
Part No.: 537534
Technical Information
- Fluid: Air
- Design: Piston slide
- Valve Function: 4/2 monostable
- Type of Actuation: Electrically
- Operating Pressure: -0.9 to 8 bar
- Pilot Pressure: 2 to 8 bar
- Nominal Flow Rate: 1000 l/min
- Supply Voltage: 24 V DC
- Pneumatic Connection: Sub-base
- Material: PA-reinforced
- Ambient Temperature: -5 to 50 °C
