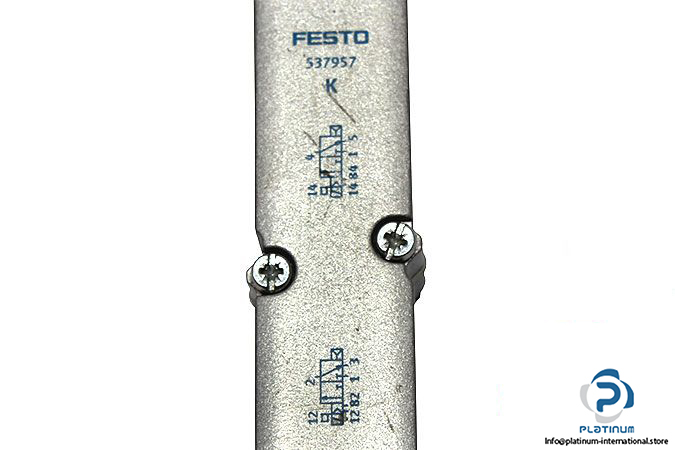

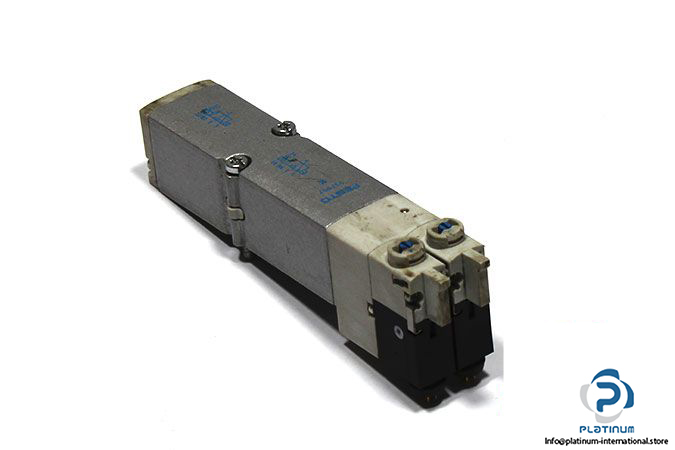

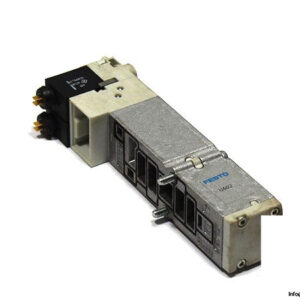

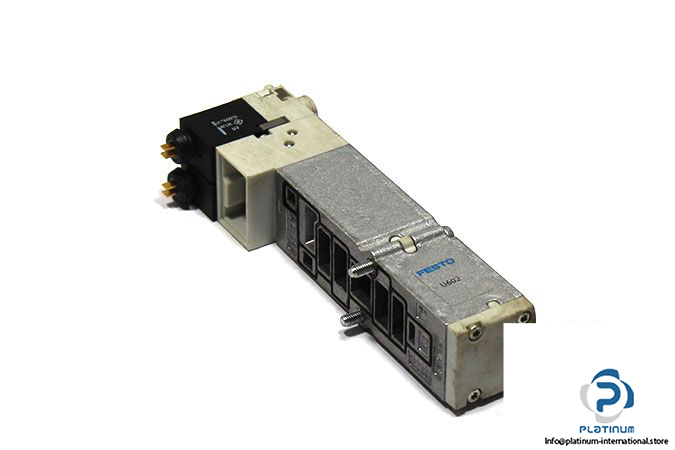

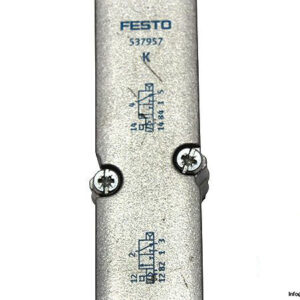

FESTO VMPA2-M1H-K-PI DOUBLE AIR SOLENOID VALVE WITH COIL

The FESTO VMPA2-M1H-K-PI is a high-performance double air solenoid valve, engineered for precision air flow control in automated systems. With a robust die-cast aluminium body and compact sub-base mounting, it is ideal for high-speed operations. The valve is supplied with FESTO 676003 solenoid coil for reliable electrical actuation at 24 V DC.

Manufacturer: FESTO
Type: Double Air Solenoid Valve
Model: VMPA2-M1H-K-PI
Part No.: 537957

Technical Information

• Fluid: Air
• Design Structure: Piston gate valve
• Valve Function: 2×3/2, closed, monostable
• Type of Actuation: Electrically
• Operating Pressure: 3 / 10 bar
• Pilot Pressure: 3 / 8 bar
• Nominal Flow Rate: 500 l/min
• Pneumatic Connection: Sub-base
• Material: Die-cast aluminium
• Ambient Temperature: -5 / 50 °C

Attachment: FESTO 676003 Solenoid Coil

Manufacturer: FESTO
Type: Solenoid Coil
Model: 676003

• Supply Voltage: 24 V DC
