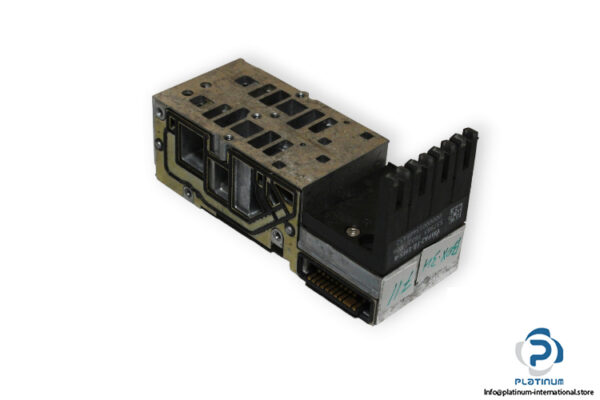

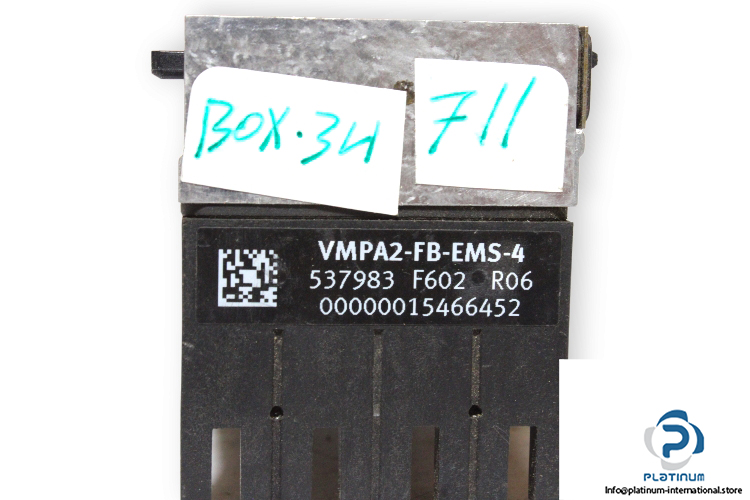

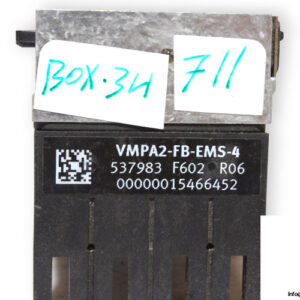

FESTO VMPA2-FB-EMS-4 ELECTRONICS MODULE
The FESTO VMPA2-FB-EMS-4 is a reliable electronics module designed to control solenoid valves in pneumatic systems. It provides diagnostic capabilities and optimized current consumption for efficient and accurate operation.
Manufacturer: FESTO
Type: Electronics Module
Model: VMPA2-FB-EMS-4
Part No.: 537983
Technical Information
- Fluid: Air
- Diagnostics: Undervoltage of Pneumatic Valves
- Valve Positions No. Max.: 2
- Solenoid Coils No. Max.: 4
- Intrinsic Current Consumption at Operating Voltage: 8 mA
- Nominal Pick-Up Current Per Solenoid Coil: 99 mA to 24 ms
- Nominal Current with Current Reduction: 18 mA after 24 ms
