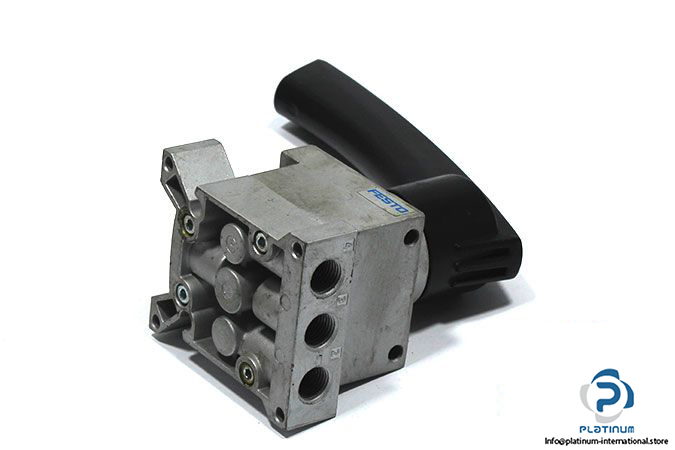

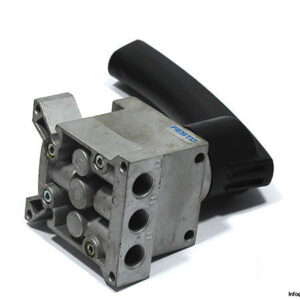

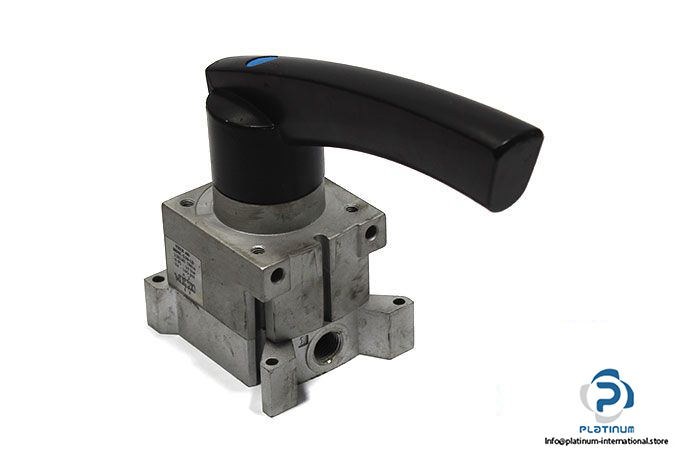

FESTO VHER-AH-M04C-G14-LD HAND LEVER VALVE
The FESTO VHER-AH-M04C-G14-LD is a high-performance hand lever valve designed for manual control of pneumatic systems. Built with durable aluminum die-cast housing, it features a 4/3 closed rotary slide valve function with reliable operation in a wide pressure and temperature range.
Manufacturer: FESTO
Type: Hand Lever Valve
Model: VHER-AH-M04C-G14-LD
Part No.: 538180
Technical Information
- Fluid: Air
- Design: Rotary slide valve
- Function: 4/3 closed
- Type of Actuation: Manually
- Operating Pressure: -0.95 to 10 bar
- Nominal Flow Rate: 1150 l/min
- Pneumatic Connection: G1/4
- Material: Aluminium die cast
- Ambient Temperature: -20 to 80 °C
