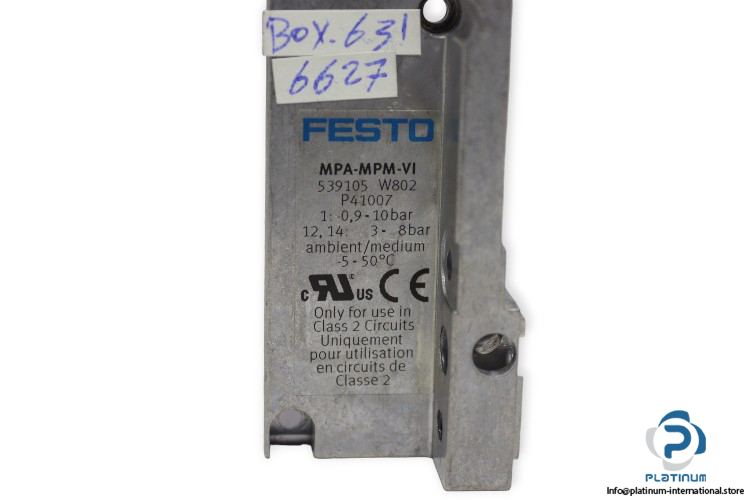

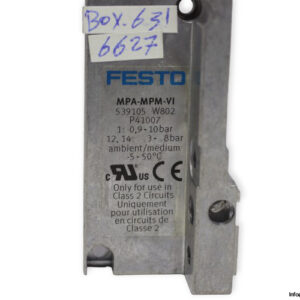

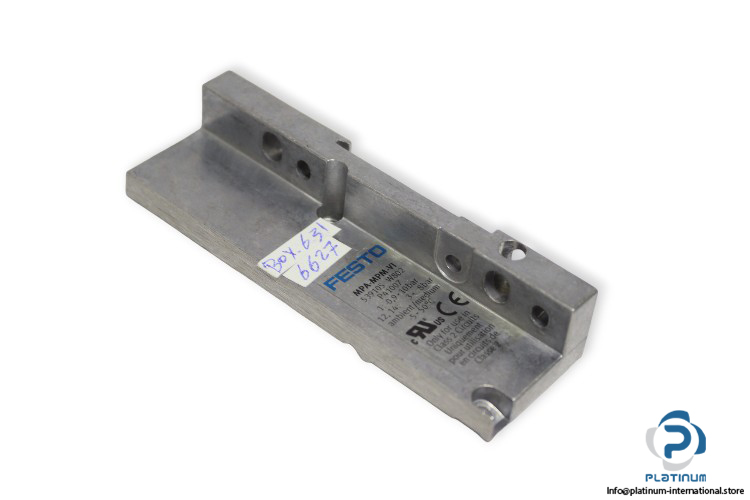

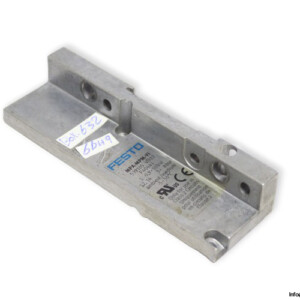

FESTO MPA-MPM-VI VALVE TERMINAL

The FESTO MPAMPMVI is a high-performance valve terminal engineered for flexible and efficient air flow control in industrial automation systems. It supports multiple valve functions and electrical actuation with a robust multi-pin interface, offering reliable operation across various configurations.

Manufacturer: FESTO
Type: Valve Terminal
Model: MPA-MPM-VI
Part No.: 539105

Technical Information

• Fluid: Air
• Actuation Type: Electrically
• Valve Terminal Type: 32
• Max. Valve Positions: 24
• Max. Pressure Zones: 7
• Valve Size: 14 mm
• Electrical Connection: Multi-pin
• Operating Pressure: -0.9 to 10 bar
• Pilot Pressure: 3 to 8 bar
• Electrical Actuation: Multi-pin
• Valve Function: 2/2, 2×3/2, 3/2, 5/2, 5/3 way
• Nominal Operating Voltage: 24 V DC
• Nominal Flow Rate Max.:
  • 360 l/min at 10 mm
  • 550 l/min at 14 mm
  • 700 l/min at 20 mm
• Ambient Temperature: -5 to 50 °C
